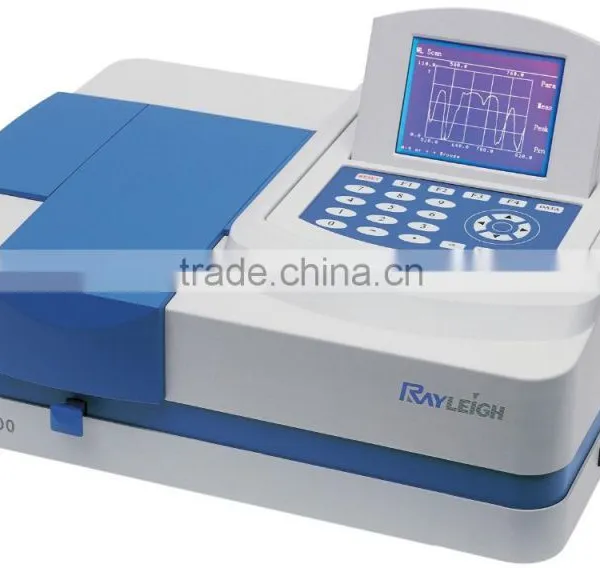

UV-1800 UV-Visible Spectrophotometer

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Shanghai, China

Shanghai Houstec Instrument Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shanghai, China

FEATURES:

1 Scan type spectrophotometer with wide wavelength range, satisfying requirement of various fields.

2 Three options for spectral bandwidth selection:5nm, 2nm, 1nm, made according to customer's need and satisfy the

requirements of pharmacopoeia

3 Manual 4-cell holder accommodates long path length cells up to 100mm.

4 Optimized optics and electronics design, light source and detectors from the world famous manufacturer ensure

high performance and reliability

5 Rich measurement methods: wavelength scan, time scan, multi-wavelength detemination, multi-order derivative

determination, double-wavelength method and triple-wavelength method etc., meet different measurement requirement.

6 Data output can be obtained via a printer port and a RS-232 interface (RS485 and USB port optional)

7 Parameters and date can be saved for user's convenience

8 PC controlled measurement can be achieved for more accurate and flexible requirement

SPCIFICATIONS:

Wavelength Range:	190-1100nm
Spectral Bandwidth:	2nm(5nm, 1nm optional)
Wavelength Accuracy:	±0.5nm
Wavelength Reproducibility:	0.2nm
Photometric Accuracy:	±0.5%T(0-100%T), ±0.002A(0-0.5A), ±0.004A(0.5A-1A)
Photometric Reproducibility:	0.2%T
Working Mode:	T, A(-0.33A), C, E
Photometric Range:	-0.3-3A
Stray Light:	≤0.1%T(NaI, 220nm; NaNO2, 340nm)
Baseline Flatness:	±0.002A
Stability:	≤0.002A/h( at 500nm, after warming up)
Noise:	±0.001A (at 500nm, after warming up)
Display:	6 inches high light blue LCD
Detector:	Silicon photo-diode
Power:	AC:220V/50Hz, 110V/60Hz, 140W
Dimensions:	530×410×210mm
Weight:	18kg
