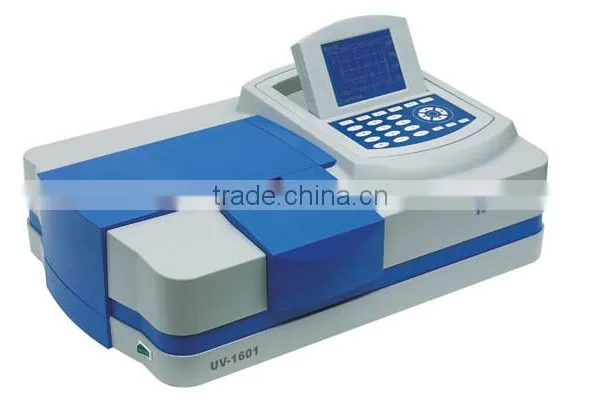

UV-1601 UV-Visible Spectrophotometer

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Shanghai, China

Shanghai Houstec Instrument Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shanghai, China

FEATURES:

1 Wide wavelength range, satisfying requirements of various fields.

2 The split-beam ratio monitoring system provides accurate measurements and enhances baseline stability.

3 Four options for spectral bandwidth selection, 5nm, 4nm, 2nm and1nm , made according to customer's need and satisfying the

requirements of pharmacopoeia.

4 Fully automated design, realizing easy measurement.

5 Optimized optics and large scale ingegrated circuits design, light source and receiver from world famous manufacturer all add up

to high performance and reliability.

6 Rich measurement methods, wavelength scan, time scan, multi-wavelength determination, multi-order derivative determination,

double-wavelength method and triple-wavelength method etc., meet different measurement requirements.

7 Automatic 10mm 8-cell holder, changeable to automatic 5mm-50mm 4-position cell holder for more choices.

8 Data output can be obtained via a printer port.

9 Parameters and data can be saved in case of power failure for user's convenience.

10 PC controlled measurement can be achieved via RS-232 interface (USB port) for more accurate and flexible requirement.

SPCIFICATIONS:

Wavelength Range:	190-1100nm
Spectral Bandwidth:	2nm(5nm, 4nm, 1nm optional)
Wavelength Accuracy:	±0.3nm
Wavelength Reproducibility:	0.15nm
Photometric System:	Split-beam ratio monitoring; Auto scan; Dual detectors
Photometric Accuracy:	±0.3%T(0-100%T); ±0.002A(0-0.5A); ±0.004A(0.5A-1A)
Photometric Reproducibility:	0.2%T
Working Mode:	T, A, C, E
Photometric Range:	-0.3-3A
Stray Light:	≤0.1%T(NaI, 220nm, NaNO2 340nm)
Baseline Flatness:	±0.002A
Stability:	0.001A/30min (at 500nm, after warming up)
Noise:	±0.001A (at 500nm, after warming up)
Display:	6 inches high light blue LCD
Detector:	Silicon photodiode
Power:	AC:220V/50Hz, 110V/60Hz, 180W
Dimensions:	630×470 ×210mm
Weight:	26kg
