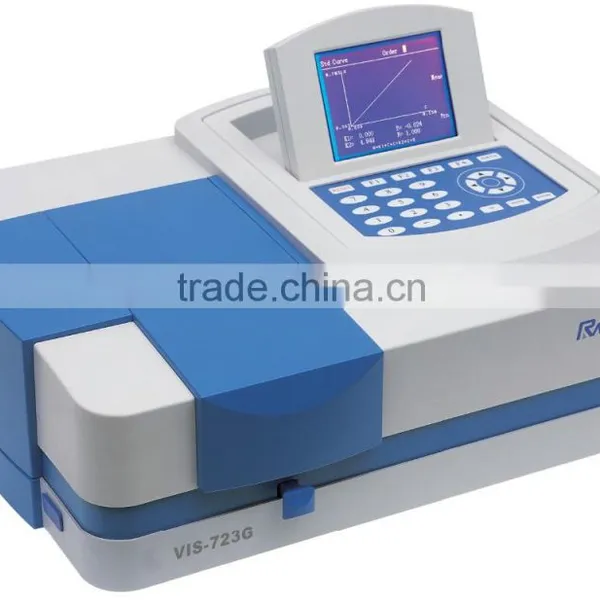

VIS-723G UV-Visible Spectrophotometer

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Shanghai, China

Shanghai Houstec Instrument Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shanghai, China

FEATURES:

1 Single beam wavelength scanning in whole wavelength range of 320-1100nm.

2 Three options for spectral bandwidth selection: 5nm, 2nm and 1nm, made according to customer's need and satisfy the

requirements of pharmacopoeia

3 Standard manual 4-cell holder accommadates cells from 5-50mm and changeable long path length cell up to 100mm.

4 Optimized optics and electronics design, light source and detectors from the world famous manufacturer ensure high

performance and reliability

5 Rich measurement methods: wavelength scan, time scan, multi-wavelength determination, multi-order derivative

determination, double-wavelength method and triple-wavelength method etc., meet different measurement requirement.

6 Data output can be obtained via a printer port.

7 Parameters and data can be saved in case of power failure for user's convenience

8 PC controlled measurement can be achieved via RS-232 interface (USB port) for more accurate and flexible requirement.

SPECIFICATIONS:

Wavelength Range:	320-1100nm
Spectral Bandwidth:	2nm(5nm, 1nm optional)
Wavelength Accuracy:	±0.5nm
Wavelength Reproducibility:	0.2nm
Monochromator:	Single beam, plane grating of 1200L/mm
Photometric Accuracy:	±0.5%T(0-100%T); ±0.002A(0-0.5A); ±0.004A(0.5A-1A)
Photometric Reproducibility:	0.2%T
Photometric Range:	-0.3-3A
Working Mode:	T, A, C, E
Stary Light:	≤0.1%T(NaNO2, 360nm)
Baseline Flatness:	±0.002A
Stability:	≤0.001A/h (at 500nm, after warming up)
Light Source:	Tungsten halogen lamp
Detector:	Silicon photodiode
Display:	6 inches high light blue LCD
Power:	AC: 220V/50Hz, 110V/60Hz, 140W
Dimensions:	530×410×210mm
Weight:	18kg
