Help CenterChina Good Quality Digital Low Cost (clamp On) Liquid Portable Modular Ultrasonic Flow Meter
Related Products
-
Ultrasonic SINGLE CABLENegotiableMOQ: 1 Piece -
UT Cable SEKM2 Ultrasonic Transducer CablesNegotiableMOQ: 1 Piece
-
Used Good Quality Portable Temperature & Humidity DataloggerNegotiableMOQ: 1 Piece
-
Ultrasonic Flaw Detector TFD800CNegotiableMOQ: 1 Piece
-
Explosion-proof Type Pipe Ultrasonic Flow Meter TUF-2000SDNegotiableMOQ: 1 Piece
Measuring Diagram:
The meter has the advantages of small size, complete functions and low cost. Using guide rail installation, it is suitable to be installed in
instrument box or distribution pane.
Optional types of transducers, measuring range from DN50 ~ DN6000mm. No need to stop water.
Features of the meter:
Working Environment
| Main Unit | Transducer |
Protection Level | IP65 | IP68 |
Humidity | ≤85%RH | |
Temperature | -20~60℃ | -30~160℃ |
Basic Parameters
Accuracy | ≤1% |
Velocity range | 0~±10m/s, Bi-directional measurement |
Pipe size | DN32~DN6000mm |
Temperature | -30~160℃ |
Type of liquid | Single liquid can transmit ultrasound, such as water, sea water, sewage, oil, alcohol, etc. |
Pipe material | Steel, stainless steel, cast iron, copper, PVC, aluminmum, glass steel, etc. Liner is allowed. |
Signal output | 1 way 4-20mA output 1 way OCT pulse output 1 way Relay output |
Signal input | 3 way 4-20mA input, achieve to heat measurement by connecting PT100 platinum resistor. |
Interface | RS485, support MODBUS |
Data storage | SD card regularly store the pre-set results(optional) |
Power supply | DC8~36V or AC85~264V |

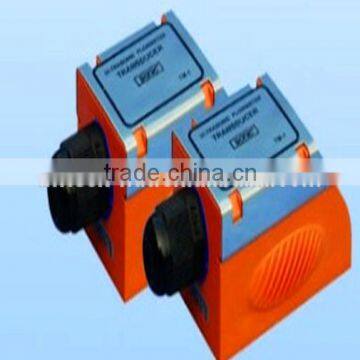

Features of Transducers:
Standard insertion Transducer
- Suitable for the pipeline can be directly welded, like carbon steel and stainless.
- Pipeline thickness: ≤20mm
- Measuring range: DN80~DN6000
- Temperature: -30~160 ℃
Extended insertion Transducer
- Suitable for the pipeline cannot be directly welded, like cement pipe, cast iron, PVC, steel or composite material.
- Pipeline thickness: ≥20mm
- Measuring range: DN80~DN6000
- Temperature: -30~160 ℃
Parallel insertion Transducer
High temperature insertion transducer
Types | Model | Measuring size | Insertion depth | Temperature | Installation requirements |
Three-wire high temperature transducer PT100 | PCT-1 | DN50 ~ DN150 | 210mm | -30~160℃ | No need to stop water |
DN200~DN250 | 250mm | -30~160℃ | |||
>DN300 | 340mm | -30~160℃ | |||
Two-wire high temperature transducer PT100 | PCT-2 | DN50 ~ DN150 | 210mm | -30~160℃ | No need to stop water. Used for battery powered ultrasonic flowmeter |
DN200~DN250 | 250mm | -30~160℃ | |||
>DN300 | 340mm | -30~160℃ |
TMTeck Manufacturing LTD. (hereafter “TMTeck”) is a leading NDT manufacturers and suppliers in Beijing China and provides innovative technologies and comprehensive know-how to benefit customers in a lot of countries around the world.Till now,TMTeck has been active in the areas of technology-driven inspection solutions that deliver productivity, quality and safety.
Began from the Ultrasonic Flaw Detector and Coating Thickness Gauge ,now TMTeck has developed more than 10 series of testing instruments, including Ultrasonic Flaw Detector, Coating Thickness Gauge,Hardness Testers,Ultrasonic Thickness Gauge ,their accessories and other NDT instruments. These products are widely used in the analysis of materials that enable our customers to monitor, control and validate their critical processes and applications,also our goods has CE certificates.
TUF-2000M(version 18)flow meter,new produce,has 4 keys could modify the parameter.The design of the meter is intended to provide for users like system integrators and OEM users with a lowest cost but of high performance flow meter.
General Specification:
Features | Description |
High accuracy | Linearity: better than 0.5%, Repeatability: better than 0.2%, Accuracy: better than ±1% |
Wide measuring range | Several types transducer for selection, pipe size from DN15mm to DN6000mm |
Far transmission distance | Connecting module and secondary meter through RS-485 interface, transmission distance up to 1000m |
Powerful Functions | Current output: 4-20mA, one channel, can be used for flow/heat transmitter; OCT output: two channels, can be used for flow /heat switch; Current input: 4-20mA, three channels, can be used for data collector; Tri-wire resistance signal input (PT100): two channels, can be used for calorimeter. |
Wide Application | Its unique features, particularly low cost, small size, high performance, local display, make it the ideal choice for industrial automation, processing control, flow meter networking, composing multi-channel, high accuracy flow meter. |
TMTeck is committed to the maintenance of long-term partnership with our clients by offering unparalleled services, technology advice and assistance. We design and produce a wide range of high performance NDT equipment and accessories. With our continued emphasis on customer focus and global competitiveness, TMTeck has always been one of the top tier of world class companies when it comes to leading in NDT equipment. And we are developing new series products according to the market demand. We can offer good guarantee for our customers.
