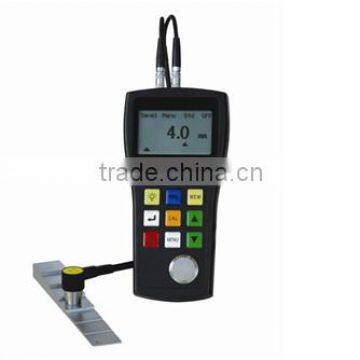

TM200/TM210 Ultrasonic Thickness Gauge

TMTeck Instrument Co., Ltd. (Beijing)
TM200/TM210 Ultrasonic Thickness Gauge thumbnail-1
TM200/TM210 Ultrasonic Thickness Gauge photo-1
US$ 260 - 400 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Beijing, China
Brand Name:
TMTECK
Model Number:
TM210
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Beijing China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Beijing, China
Brand Name TMTECK
Model Number TM210

FEATURES:



AUTOMATIC SELF CALIBRATION COUPLANT INDICATOR

AUTOMATIC POWER OFF DEVICE HIGH-LOW LIMIT ALARM

LCD BRIGHTNESS ADJUST LOW BATTERY INDICATOR





TECHNICAL SPECIFICATIONS:





TM200



TM210





Display Resolution

0.1mm (or 0.01



0.1mm/0.01mm







inch)



or 0.01 inch





















/0.001inch





Accuracy

±(1%H +0.1)mm



±(0.5%H + 0.01)mm





Measuring Range

0.8 - 300.0 mm depending on the probes







(1.0 - 200.0 mm with Standard Probe within







the package)





Display Frequency



4Hz





Memory

Store up to 500 test values





Sound velocity

1000-9999 m/s (0.0393-0.3936 inch/μs)





Display Type

4 digital LCD with advanced backlight





Power Supply

2 pcs. 1.5v AA standard Batteries





TMTeck Instrument Co., Ltd.



Tel:86-10-89444420  Fax: 86-10-89445181




Working

-0 ºC ~ +50 ºC



temperature





Dimension

149 mm X 73 mm X 32 mm



Weight

168g (main unit); 30g (standard probe)











Standard Delivery :



  1. 1.    Main Processor with built-in Calibration block (4.0mm)



  1. 2.    Standard Probe – PT-12 (5 MHz)



  1. 3.    Coupling Paste



  1. 4.    Operation Manual



  1. 5.    Batteries – 2 pcs. 1.5v AA Type batteries



  1. 6.    Carrying case









Probes Specification:

Probes

Frequency

Diameter

Measuring

Application







Range (steel)



PT-12

5 MHz

12mm

1.0-200mm

Standard Probe

PT-08

5 MHz

10mm

0.8-100mm

Standard Probe

PT-06

7.5 MHz

7.6mm

0.8-30.0mm

Miniature









Probe

ZT-12

2 MHz

16.2mm

4.0-300mm

Lowe









frequency









Probe

PT-04

10 MHz

5mm

0.8-20.0mm

Minisize Probe

GT-13

5 MHz

14mm

4.0-80.0mm

High









Temperature









probe
