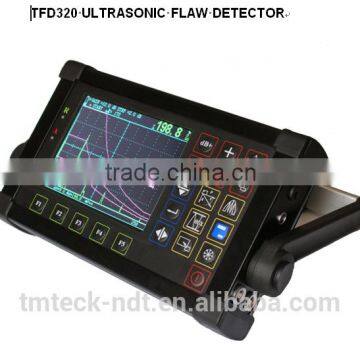

TFD320 ULTRASONIC FLAW DETECTOR
- 20 Unit / Units per Month
- Beijing China
- ultrasonic flaw detector
- FOGSINS-NFS Series Fiber Optic Gyro North Seeker NFS Series (Type A, Type B, Type C, Type D) Fiber Optic Gyro North Seeker
- Gravity Metal Separator Industrial Plastic Granule Metal Detection Separator
- KM001 POWER-Z USB Digital Tester Type-C Voltage Current Detector
- Portable digital ultrasonic flaw detector Metal leak detector meter
- NDT Portable Digital Ultrasonic Testing Ultrasonic Flaw Detector
Product Details
Place of Origin: | Beijing, China | Brand Name: | TMTECK | Model Number: | TFD320 |
Product Description
DAC AVG & B scan Dual 4A Ultrasonic Flaw Detector TFD310 for Gate and DAC alarm& 5 MINUTES VIDEO
Product Info:
·Automated calibration Automated gain
·Automated make video of test process and play
·DAC AVG & B scan, AWS function, 6dB DAC
·High-speed capture and very low noise
·Solid metal housing (IP65)
·High contrast viewing of the waveform from bright
·Powerful pc software and reports can be export to excel through RS232/ USB interface
Features :
· Automated display precise flaw location(Depth d, level p, distance s, amplitude, sz dB, )
· Automated switch three staff gauge ((Depth d, level p, distance s)
· Automated calibration of transducer Zero-point, Angles, Front edge and material Velocity
· Convenient to make and use DAC and AVG to evaluate the echo, the curve can be modified and compensated
· 100 independence setup, any criterion can be input freely, we can work in the scene without test block
· Big memory of 300 A graph and 30000 thickness value
· Automated gain and gain scan
· Automated make video of test process and play
· Peak Hold and Peak Memory
· B scan
· Powerful pc software and reports can be export to excel
· The embeded software can be online updated
· Li battery, continue working time up to 10 hours
Other Assistant Function :
· Display freeze;
· Automated echo degree;
· Angles and K-value;
· Lock and unlock function of system parameters;
· Dormancy and screen savers;
· Electronic clock calendar ;
· Two gates setting and alarm indication;
· Gate and DAC alarm;
Specification :
Title | Parameter | Title | Parameter |
Measuring Range(mm) | 2.5 ~ 6000 | Measurement Mode | Single, Dual, Thru |
Vertical Linearity Error | ≤3% | Reject | 0~80% |
Horizontal Linearity Error | ≤0.1% | Pulse Displacement(μs) | -20 ~ +3400 |
Sensitivity Leavings | ≥62dB | Zero(μs) | 0.0 ~ 99.99 |
Dynamic range | ≥34dB | Port Type | BNC |
Resolving Power | ≥36dB | Operating Temperature (℃) | -20~50 |
Frequency Range(MHz) | 0.5 ~ 20 | H×W×D(mm) | 210×156×40 |
Gain(dB) | 0 ~ 110 | Weight(kg) | 1.0 |
Material Velocity(m/s) | 1000 ~ 13000 |
|
|
TFD320 Standard Configuration
No. | Item | Quantity |
1 | Main Body TFD310 | 1 |
2 | Straight Beam Probe | 1 |
3 | Angle Probe | 1 |
4 | Machine-probe Cable | 2 |
5 | Battery Module | 1 |
6 | Power Adapter (Charger) | 1 |
7 | Manual | 1 |
8 | Instrument Case | 1 |
9 | Datapro Software | 1 |
10 | USB communication Cable | 1 |
