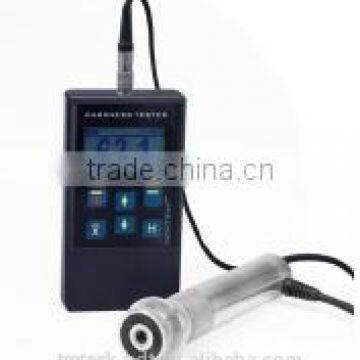

Ultrasonic Hardness Tester T-UD2

carbon steel products pearlitic by automatically converting from the scale of

hardness Brinell (HB);

Implements the method of ultrasonic contact impedance (UCI)

hardness measurement of any mass products with a thickness of 1 mm - inaccessible to the dynamic (Leeb)

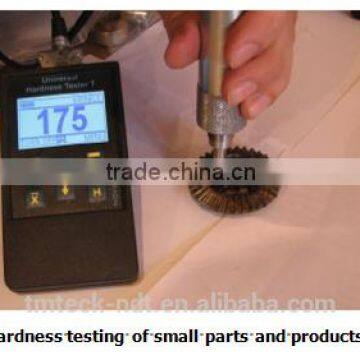

hardness testers (small parts, thin-walled structures, pipes, tanks, steel sheets, articles of complex shape,

hardness control of metal coatings, etc.)

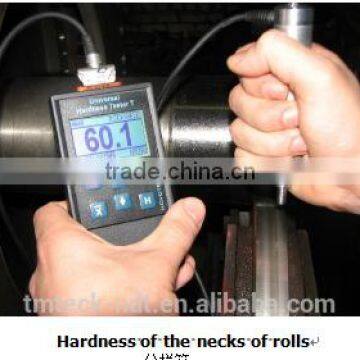

small print on the product surface (mirror surfaces is possible to control necks shafts, blades, gear teeth, etc.)

measuring the hardness of the surface of the hardened layer

wide range of hardness

convenience and ease of measurement

minimum number of controls

large graphic display with bright backlighting

Automatic recognition of sensor

indication of the type connected sensor

control of the battery

extended temperature range (frost, down to -20 degrees Celsius LED)

presence of internal memory and a communication channel with PC

new, intuitive menu with tips on the buttons

Specifications of the UCI hardness tester T-UD2

Restrictions on the use of UCI hardness tester T-UD2

Limited use for measuring the hardness of products with a coarse-grained structure (eg, iron) or weighing less than 10

grams, or less than 1 mm thick.

Standart set of the ultrasonic contact impedance (UCI) hardness tester  T-UD2

Main body

Ultrasonic probe

2 batteries with charger

passport, user manual

cables

packing container

Additional options for ordering

additional sensors to the hardness

battery

charger

set of measures of hardness
