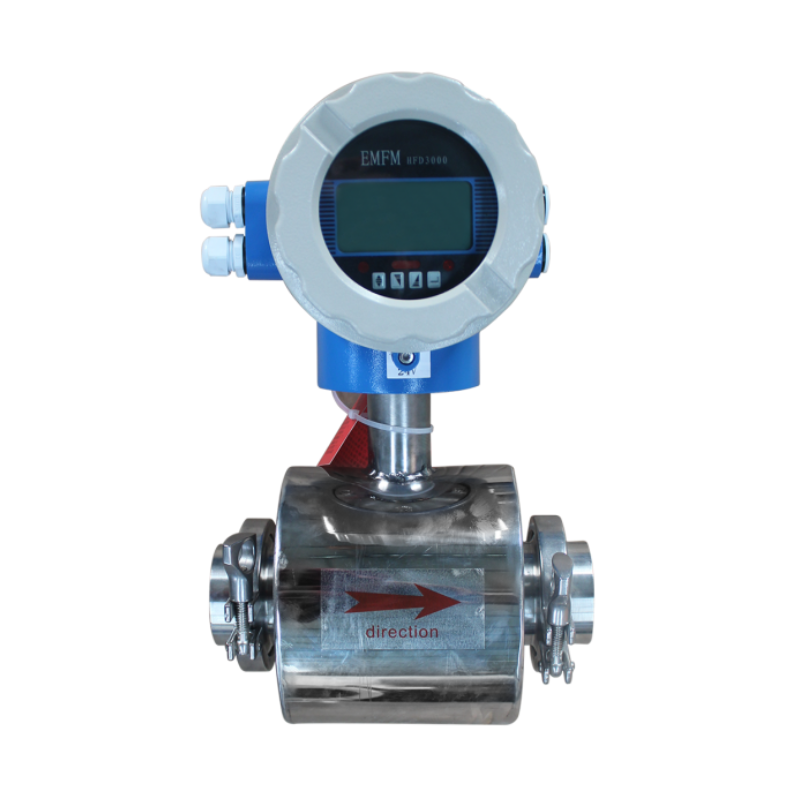

Help CenterCarbon Steel Body Electromagnetic Flowmeter for Industrial Liquid Flow Measurement
Related Products
-
Split-Type Electromagnetic Flowmeter for Industrial Conductive Liquid Flow MeasurementNegotiableMOQ: 1 Piece -
316L Stainless Steel Hygienic Pressure Sensor, 0.25% Accuracy, IP65, -10-75°C Range for Sanitary Liquid MeasurementNegotiableMOQ: 1 Piece
-
Submersible Anti-Fouling Level Sensor for Environmental Protection and Hydraulic Systems With High StabilityNegotiableMOQ: 1 Piece
-
Anti-Fouling Sanitary Pressure Sensor for Water Treatment and Brewing Applications With High Stability IP68NegotiableMOQ: 1 Piece
-
Temperature Transmitter With 0.25% Accuracy, 4-20mA Output, PT100 Input, Range 0-1000°C for Industrial Automation and Process ControlNegotiableMOQ: 1 Piece
Electromagnetic Flowmeter Series
Application
Core Features
Technical Performance
Item |
Details |
Executive Standard |
JJG1033 - 2007 |
Measuring Medium |
Conductive liquid |
Accuracy Grade |
0.2%, 0.5% |
Repeatability |
0.15%, 0.25% |
Fluid Temperature |
-25° - +250℃ |
Rated Pressure (Special Pressure Level to be Confirmed) |
- Nominal Diameter DN50 - DN300: 1.6MPa- Nominal Diameter DN300 - DN1000: 1.0MPa- Nominal Diameter DN1000 - DN2000: 0.6MPa- Nominal Diameter DN2000 - DN3000: 0.25MPa |
Medium Flow Velocity Range |
0.1 - 15m/s, ≥ 5m/s recommended |
Conductivity |
≥ 5μs/cm |
Electrode Material |
316L stainless steel, Hastelloy B, Hastelloy C, tantalum, platinum, gold, tungsten carbide, etc. |
Lining Material |
Chloroprene rubber, polytetrafluoroethylene 4 (PTFE), perfluoroethylene propylene 46, polyvinylidene fluoride, etc. |
Meter Body Flange Material |
20# carbon steel, 304 stainless steel, other materials (customized on request) |
Installation Method |
Flange connection, flange clamp, clamp connection, threaded connection due to connection, threaded connection type (customized) |
Protection Class |
IP65 (spray water), IP67 (short - term water immersion), IP68 (long - term water immersion) |
Power Supply |
85 - 265V, 11 - 40VDC, 3.6V, three power supply methods optional (solar power supply customizable) |
Signal Output |
Pulse, frequency, 4 - 20mA, 0 - 5V optional; standard MODBUS protocol; HART protocol; on - site bus protocol PROFIBUS - DP protocol; GPRS wireless remote transmission, etc. |
Structural Form |
Integral type, split type (with 10m standard cable), insertion type |
Power |
0.65W |
Working Environment |
Ambient temperature: - 25 - +60℃, humidity: 5% - 90% |
Explosion - Proof Grade |
Non - explosion - proof and explosion - proof ExdmbIICT6Gb |
Damping Time |
1 - 32S adjustable, optional |
