ULTRASONIC FLAW DETECTOR

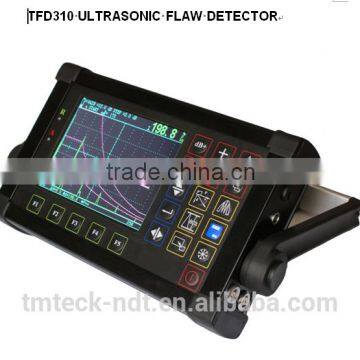

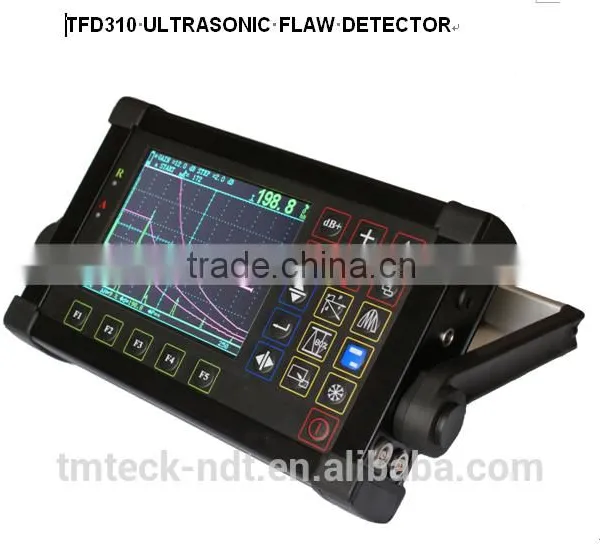

DAC AVG & B scan Dual 4A Ultrasonic Flaw Detector TFD310 for Gate and DAC alarm& 5 MINUTES VIDEO

Product Info:

·Automated calibration Automated gain
·Automated make video of test process and play
·DAC AVG & B scan, AWS function, 6dB DAC
·High-speed capture and very low noise
·Solid metal housing (IP65)
·High contrast viewing of the waveform from bright
·Powerful pc software and reports can be export to excel through RS232/ USB interface

Features :
·         Automated display precise flaw location(Depth d, level p, distance s, amplitude, sz dB, )
·         Automated switch three staff gauge ((Depth d, level  p, distance s)
·         Automated calibration of transducer Zero-point, Angles, Front edge and material Velocity
·         Convenient to make and use DAC and AVG to evaluate the echo, the curve can be modified and compensated
·         100 independence setup, any criterion can be input freely, we can work in the scene without test block

·         Big memory of 300 A graph and 30000 thickness value
·         Automated gain and gain scan
·         Automated make video of test process and play
·         Peak Hold and Peak Memory
·         B scan
·         Powerful pc software and reports can be export to excel
·         The embeded software can be online updated
·         Li battery, continue working time up to 10 hours

Other Assistant Function :
·         Display freeze;
·         Automated echo degree;
·         Angles and K-value;
·         Lock and unlock function of system parameters;
·         Dormancy and screen savers;
·         Electronic clock calendar ;
·         Two gates setting and alarm indication;
·         Gate and DAC alarm;

Specification :
