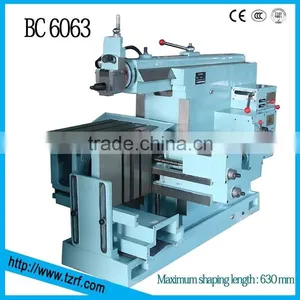

Metal Shaping Machine BC6063/BC6066

FOB Price

Negotiable / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Shandong, China
Brand Name	HELI	Model Number	BC6063/BC6066
Voltage	240V/380V/440V	Rated Power	3 kw
Dimension(LWH)	2342x1225x1480mm	Weight	1750KG
Certification	CE ISO9001	Warranty	12 months
After-sales Service Provided	No overseas service provided

The BC6063/BC6066 SHAPER

The Maximum shaping length 630/660mm

Model		BC6063/BC6066
Maximum cutting length(mm)		630/660
Maximum distance from ram bottom to table surface(mm)		385
Maximum table horizontal travel(mm)		630
Maximum table vertical travel(mm)		360
Dimensions of table top surface(L×W)(mm)		630×400/660×400
Travel of tool head(mm)		120
Number of ram strokes per minute		14,20,28,40,56,80
Swivel of tool head(°)		±60°
Maximum size of tool shank(W×T)(mm)		20×30
Range of table power feed	horizontel	0.2~2.5
	vertical	0.08~1.00
Width of central T-slot of table(mm)		18
Power of mortr(kw)		3
Overall dimensions(L×W×H)(mm)		2342×1225×1480 2357×1225×1480
N.W/G.W(kg)		1750/1870 1800/1920
