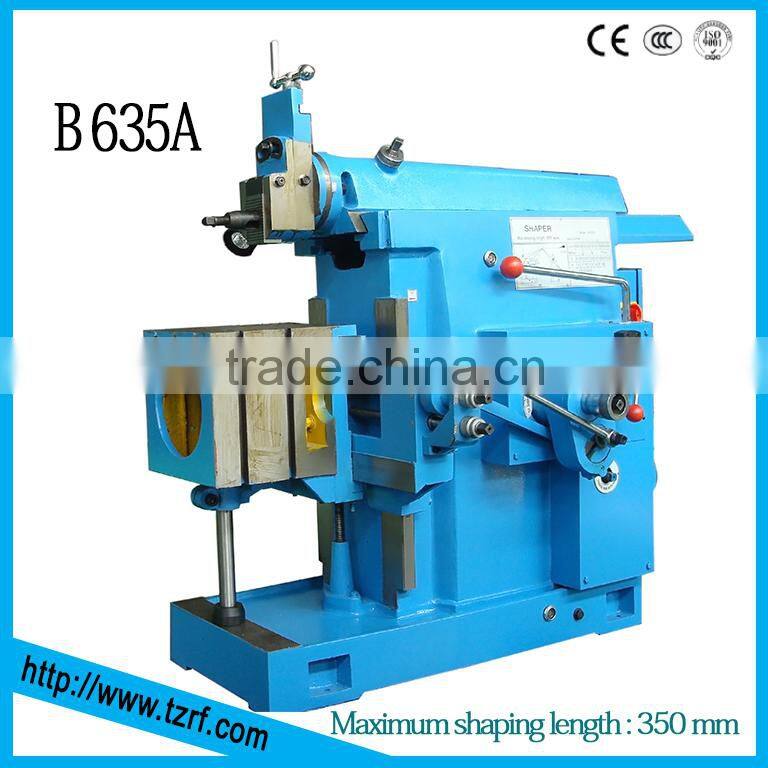

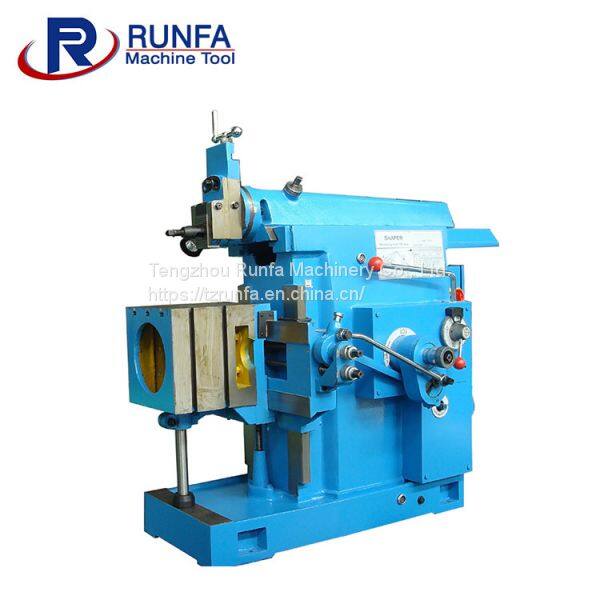

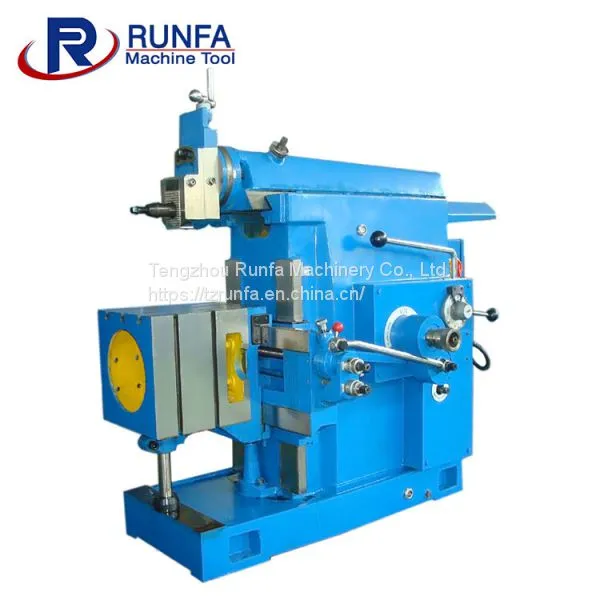

Help CenterB635A Metal Shaping (Shaper)Machine
Related Products
Specifications
1. Planner bench can rotate
2. Feed system use cam mechanism to adjust feed rate
3.With cutting system overload safety dev
Features
Shaper is mainly used for planning the plane on the small and medium-size workpieces in small batch production of a single piece, forming the surface and grooves . Its five characteristics:
1. Planner bench can turing angle of the table with horizontal and lift moving mechanism; for planning the inclined plane, thereby expanding the scope of use.
2. Planner feed system uses a cam mechanism to adjust the feed rate. It is very convenient to change the feeding rate.
3. Planer equipped with cutting system overload safety angencies. Once occur careless operation, external influences or cutting overload, it will shift to self-skid, and non-sestructive the machine.
4. Gap between the ran and the bed rail, the speed gear and the main sliding guide surface, will be lubricated by the pump shot oil.
5. Planner is equipped with a clutch and parking brake device. So do not need to cut off the power when changing the speed, stard the machine or braking the machine.
Technical Specifications
| Model | B635A | |
| Max. planing length | 350mm | |
| Max. distance between ram bottom and table surface | 330mm | |
| Max. worktable moving distance(horizontal) | 400mm | |
| Max. worktable moving distance(vertical) | 270mm | |
| Leading surface of the planer to bed out of the maximum distance | 550mm | |
| The max. displacement of the ram | 170mm | |
| Max. turning angle of the worktable (no vise) | ±90° | |
| Max. turning angle of the worktable (vise) | ±55° | |
| The turret maximum vertical travel | 110mm | |
| Ram reciprocating frequency per minute | 32,50,80,125 | |
| Table feed amount per reciprocating motion of ram |
Wheeled round a tooth(vertical) | 0.18mm |
| Wheeled round a tooth(horizontal) | 0.21mm | |
| Wheeled round 4 tooth(vertical) | 0.73mm | |
| Wheeled round 4 tooth(horizontal) | 0.84mm | |
| Motor power | 1.5kw 1400r/min | |
| Packing size | 1530x930x1370mm | |
| N.W./G.W. | 1000/1200kg | |
