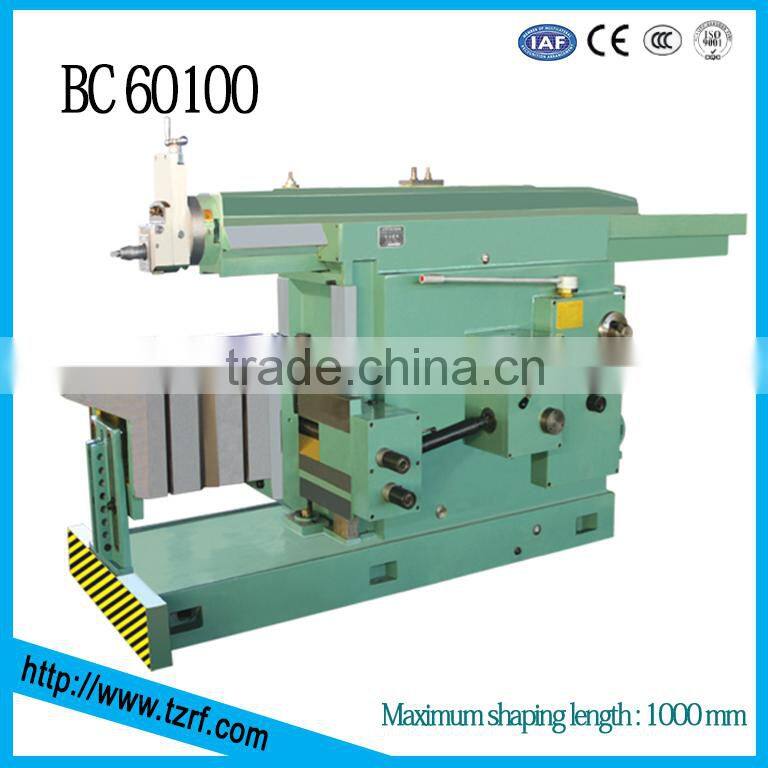

Mechanical Shaper Machine BC60100

Name: Mechanical Shaper Machine BC60100
Brand: HELI
SKU: 103163701
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Place of Origin:

Shandong, China

Brand Name:

HELI

Tengzhou Runfa Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO/SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Shandong, China

Brand Name HELI

Model Number BC60100

Voltage 240V/380V/440V

Rated Power 7.5 kw

Dimension(L*W*H) 3640x1575x1780mm

Weight 4870KG

Certification CE ISO9001

Warranty 12 months

After-sales Service Provided No overseas service provided

The BC60100 SHAPER

The Maximum shaping length 1000mm

Model		BC60100
Maximum cutting length(mmin)		1000
Maximum table horizontal travel(mm)		800
Maximum distance from ram bottom to table surface(mm)		400
Maximum table vertical travel(mm)		380
Dimensions of table top surface(L×W)(mm)		1000×500
Travel of tool head(mm)		160
Swivel of tool head(°)		±60°
Maximum size of tool shank(W×T)(mm)		30×45
Number of ram strokes per minute		15,20,29,42,58,83
Range of table power feed	(10 steps) horizontal(mm)	0.3~3
	(8 steps) vertical(mm)	0.15~0.5
Rapid feed of table	horizontel(mm)	3
	vertical(mm/min)	0.5
Width of central T-slot of table(mm)		22
Power of motor(kw)		7.50
Overall dimensions(L×W×H)(mm)		3640×1575×1780
Weight(kg)		4870/5150
