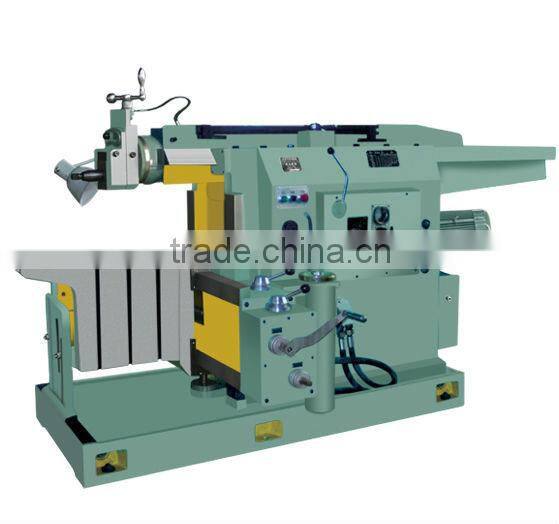

Help CenterShaping Mchine BY6090C
Related Products
Shaping machine is designed for cutting flat and fomed surfaces on various kinds of small or medium sized workpiece. It can also be used to cut surfaces in special shape if equipped with a special vice or a dividing head and it is suitable for single piece and small batch production as well.
The main cutting motion of the machine is linear motion being converted from circular motion of gears by link bolck mechanism. With smooth transmission. Short over run and less consume of power, the machine is easy to start and stop.
If being provided with a tool lifter, the machine table can obtain rapid motion in vertical and horizontal direction. The machine, with pleasing appearance and stable accuracy, can be oerated and maintained conveniently.
Model |
BY6090C |
|
Maximum cutting length(mm) |
900 |
|
Maximum table horizontal travel(mm) |
600 |
|
Maximum distance from ram bottom to table surface(mm) |
450 |
|
Maximum table vertical travel(mm) |
400 |
|
Dimensions of table top surface(L×W)(mm) |
900×400 |
|
Travel of tool head(mm) |
150 |
|
Swivel of tool head(°) |
±60° |
|
Maximum size of tool shank(W×T)(mm) |
22×30 |
|
Number of ram strokes per minute(mm) |
0.25-1.8 |
|
Range of table power feed |
Stepless |
|
ing force(kg) |
1500 |
|
Max loading weight on worktable(kg) |
200 |
|
Speed of rapid travel of table |
Horizontal |
1.57 |
Vertical |
0.35 |
|
width of the T-slot for center positioning(mm) |
18 |
|
Power of the main motor(kw) |
4 |
|
Power of the motor for rapid travel of table(kw) |
0.75 |
|
N.W/G.W(kg) |
2700/2850 |
|
Overall dimensions(L×W×H)(mm) |
2670×1350×1600 |
|
