Metal Shaping Machine BC6050
US$ 1 - 6460
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
runfa
Place of Origin:
China
Model Number:
BC6050/BC6065
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO/SHANGHAI
Delivery Detail:
15 days
Related Products
Brand Name
runfa
Place of Origin
China
Model Number
BC6050/BC6065
Certification
CE ISO9001
After-sales Service Provided
No overseas service provided
Warranty
12 months
Weight
1650KG
Dimension(L*W*H)
2160x1070x1194
Voltage
240V/380V/440V
Rated Power
3 kw
Condition
New

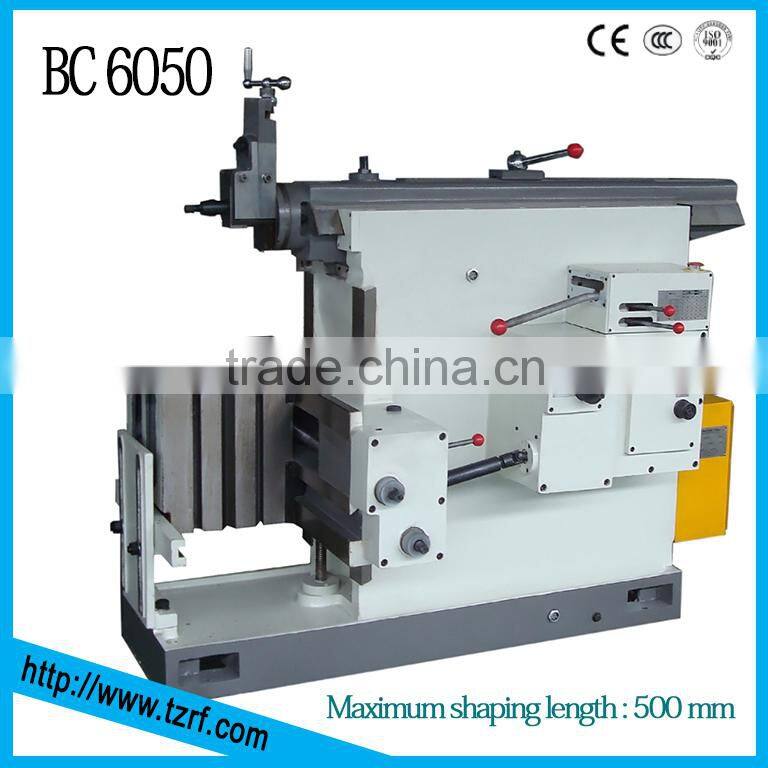

The BC6050 shaping machine
The Maximum shaping length 500mm
| Model | BC6050/BC6065 shaping machine | ||
| Max.shapping length(mm) | 500 | 650 | |
| Max.range of the borizontal movement of the table(mm) | 525 | 630 | |
| Max.distance between the ram bottom and table(mm) | 370 | 380 | |
| Max.length of the vertical movement of table(mm) | 270 | 315 | |
| Dimensions of table top(L×W)(mm) | 440×360 | 630×400 | |
| Max. stroke length of the toolhead(mm) | 120 | 120 | |
| Max.swivel angle of the toolhead(°) | ±60° | ±60° | |
| Max.section of tool(W×T)(mm) | 20×30 | 20×30 | |
| Number of ram reciprocation per minute(NO/min) | 14-80 | 14-80 | |
| Range of table feed | Horizontal | 0.2-0.25 0.08-1 | 0.2-0.25 0.08-1 |
| Vertical(mm/recip) | |||
| Speed of rapid travel of table | Horizontal | 0.95 0.38 | 0.95 0.38 |
| Vertical | |||
| width of the T-slot for center positioning(mm) | 18 | 18 | |
| Power of the main motor(kw) | 3 | 3 | |
| N.W/G.W(kg) | 1650 | 2200 | |
| Overall dimensions(L×W×H)(mm) | 2160×1070×1194 | 2382×1210×1504 | |
