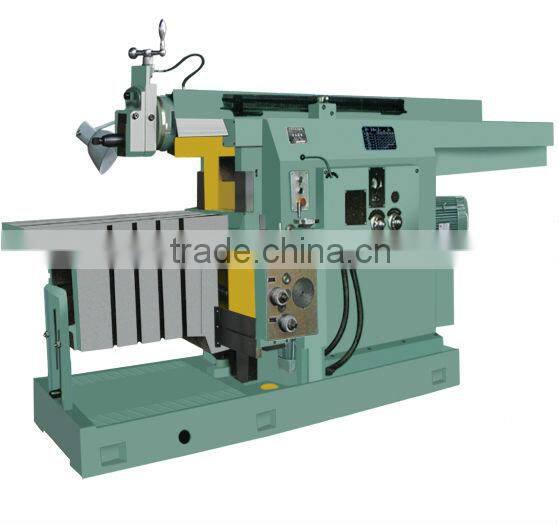

Help CenterShaping Mchine BY60100C
Related Products
Specifications
1. reliable function2. high rigidity
3. high precision
4. more durable
Shaping machine is designed for cutting flat and fomed surfaces on various kinds of small or medium sized workpiece. It can also be used to cut surfaces in special shape if equipped with a special vice or a dividing head and it is suitable for single piece and small batch production as well.
The main cutting motion of the machine is linear motion being converted from circular motion of gears by link bolck mechanism. With smooth transmission. Short over run and less consume of power, the machine is easy to start and stop.
If being provided with a tool lifter, the machine table can obtain rapid motion in vertical and horizontal direction. The machine, with pleasing appearance and stable accuracy, can be oerated and maintained conveniently.
Model |
BY60100C |
Maximum cutting length(mmin) |
1000 |
Cutting speed of ram(mm/min) |
3-44 |
Distance from lower edge of ram to upper surface of table(mm) |
80-400 |
Max.cutting force(N) |
28000 |
Max.travel of tool head(mm) |
160 |
Maximum size of tool shank(W×T)(mm) |
30×45 |
Upper working surface of table(L×W)(mm) |
1000×500 |
Width of central T-slot of table(mm) |
22 |
Max.horizontal travel of table(mm) |
800 |
Horizontal feed of table per recip rocating stroke of ram(stepless) (mm) |
0.25-5 |
Main motor(kw) |
7.5 |
Motor for rapid motion of table(kw) |
0.75 |
Overall dimensions(L×W×H)(mm) |
3615×1574×1760 |
N.W/G.W(kg) |
4200/4350 |
