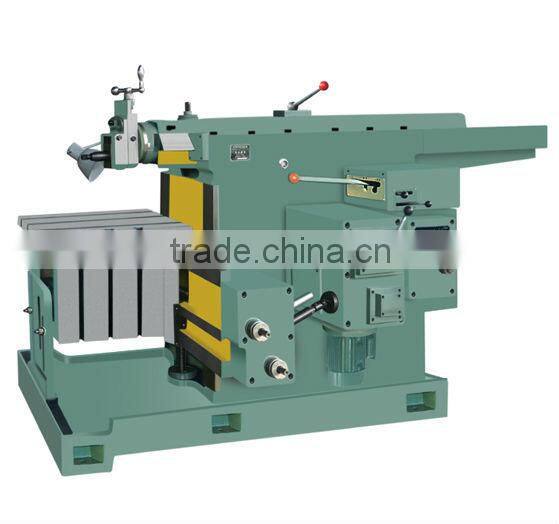

Help CenterShaping Mchine BC6050
Related Products
Specifications
1. reliable function2. high rigidity
3. high precision
4. more durable
Shaping machine is designed for cutting flat and fomed surfaces on various kinds of small or medium sized workpiece. It can also be used to cut surfaces in special shape if equipped with a special vice or a dividing head and it is suitable for single piece and small batch production as well.
The main cutting motion of the machine is linear motion being converted from circular motion of gears by link bolck mechanism. With smooth transmission. Short over run and less consume of power, the machine is easy to start and stop.
If being provided with a tool lifter, the machine table can obtain rapid motion in vertical and horizontal direction. The machine, with pleasing appearance and stable accuracy, can be oerated and maintained conveniently.
Model |
BC6050 |
||
Max.shapping length(mm) |
500 |
650 |
|
Max.range of the borizontal movement of the table(mm) |
525 |
630 |
|
Max.distance between the ram bottom and table(mm) |
370 |
380 |
|
Max.length of the vertical movement of table(mm) |
270 |
315 |
|
Dimensions of table top(L×W)(mm) |
440×360 |
630×400 |
|
Max. stroke length of the toolhead(mm) |
120 |
120 |
|
Max.swivel angle of the toolhead(°) |
±60° |
±60° |
|
Max.section of tool(W×T)(mm) |
20×30 |
20×30 |
|
Number of ram reciprocation per minute(NO/min) |
14-80 |
14-80 |
|
Range of table feed |
Horizontal |
0.2-0.25 0.08-1 |
0.2-0.25 0.08-1 |
Vertical(mm/recip) | |||
Speed of rapid travel of table |
Horizontal |
0.95 0.38 |
0.95 0.38 |
Vertical | |||
width of the T-slot for center positioning(mm) |
18 |
18 |
|
Power of the main motor(kw) |
3 |
3 |
|
N.W/G.W(kg) |
1650 |
2200 |
|
Overall dimensions(L×W×H)(mm) |
2160×1070×1194 |
2382×1210×1504 |
|
