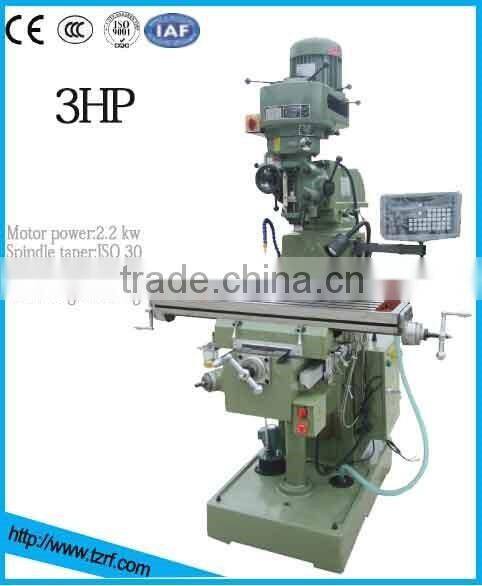

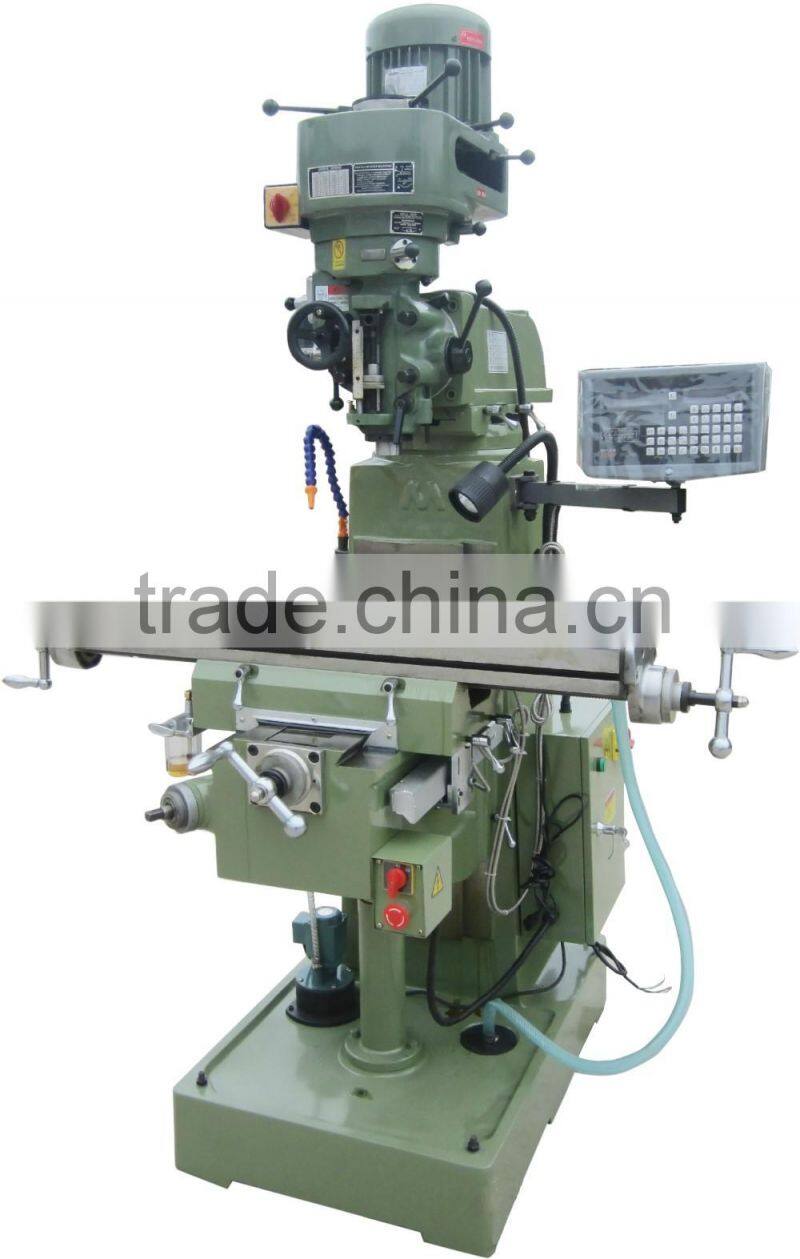

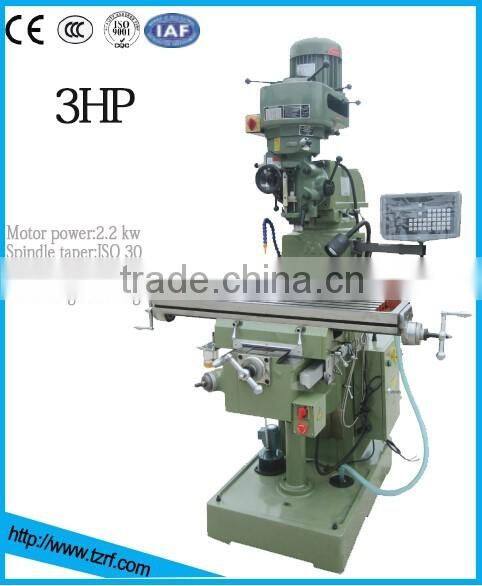

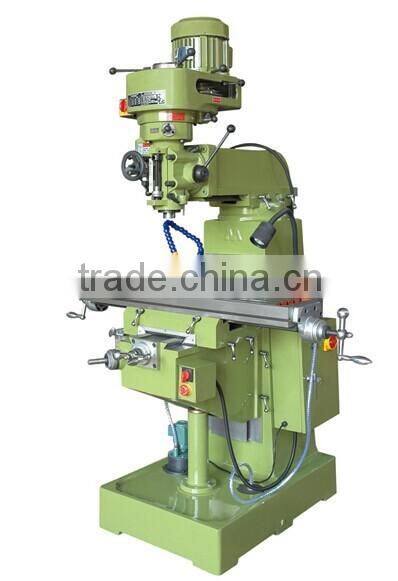

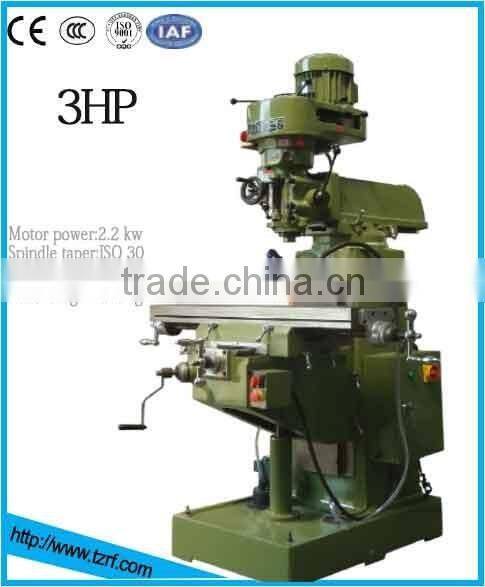

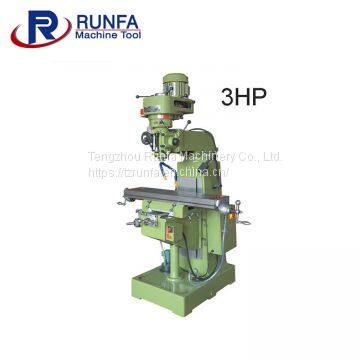

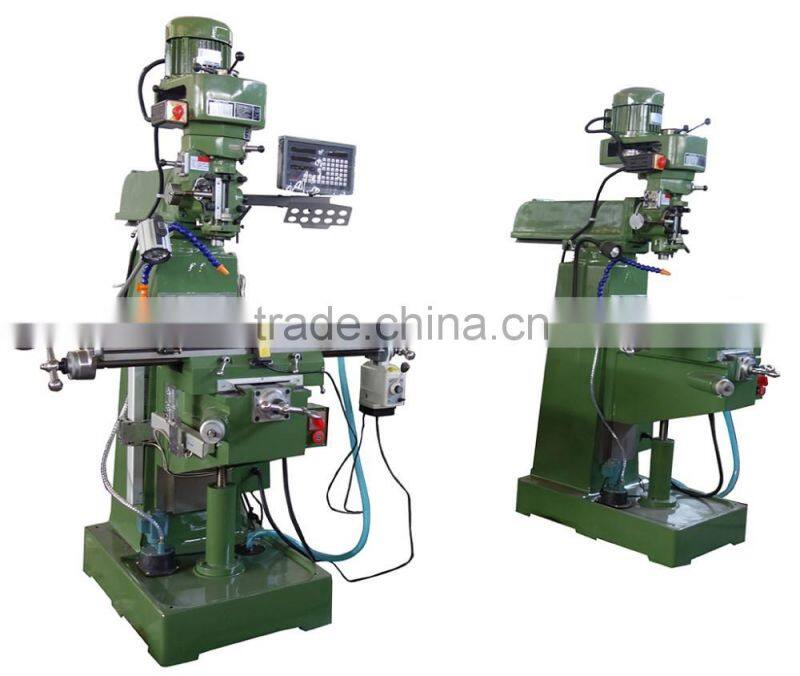

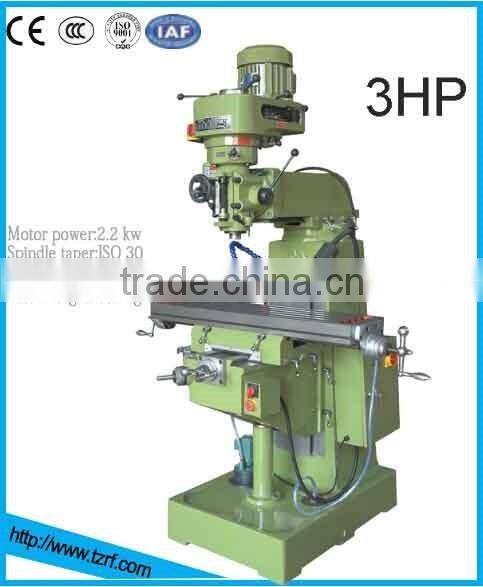

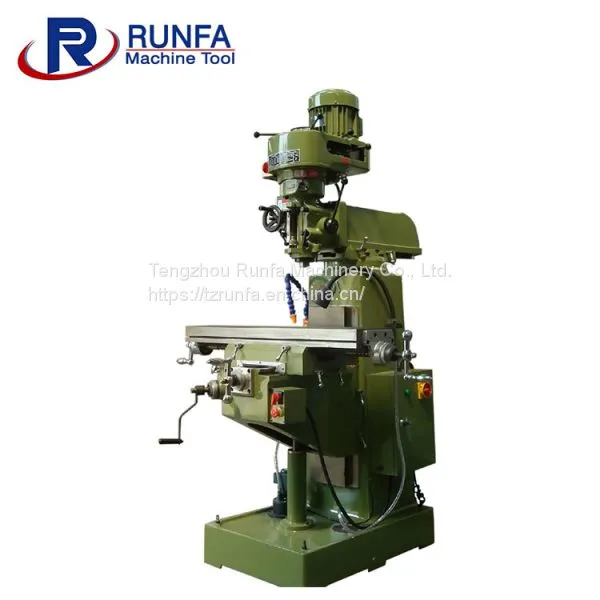

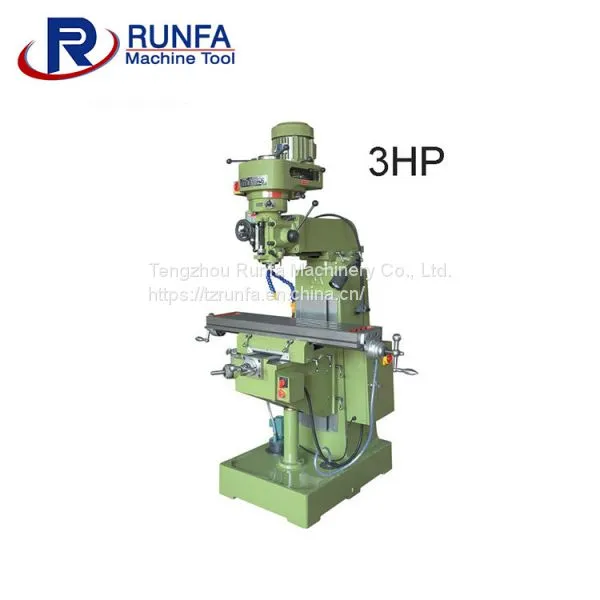

Help Center3H Radial Milling Machine
Related Products
This machine is widely used for flat maching along with any tilt angle surface,it can work for milling slot,drilling,fraising,boring.The milling head can turn right and light ±90°,it can rotate with high speed and with wide speed range,it can carry out power feed with overload safe protective device.The spindle quill and machine guideway past special treatment,it has perfect appearance and excellent design structure,it is one ideal metal cutting machine.It can also install power feed and DRO depending on customer requirements.

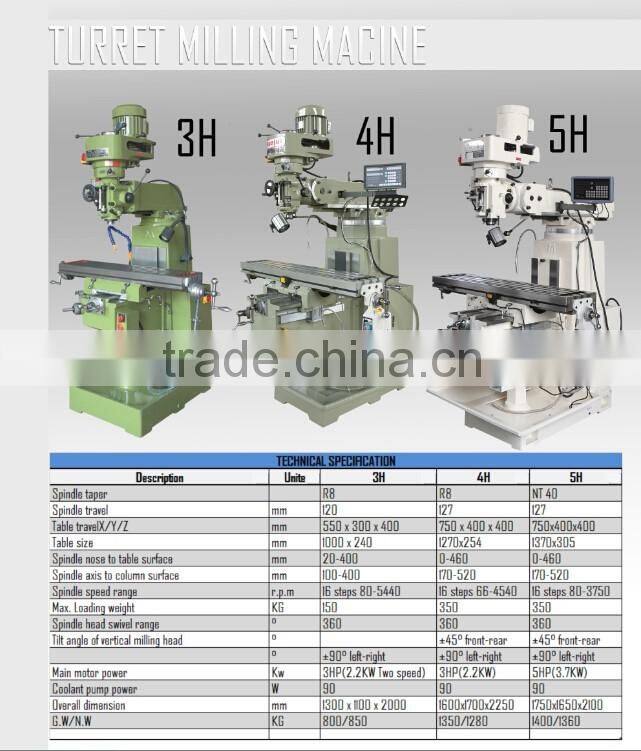

Main specification |
3PH |
Spindle table |
R8 |
Table size |
1000 x 240 mm |
Table travel(X,Y,Z) |
550 x 300 x 400 mm |
Distance from spindle nose to table surface |
20-400 mm |
Distance from spindle axis to column guideway surface |
100-400 mm |
Spindle speed range |
16(steps) 80~5440 r.p.m |
Arm travel |
300 mm |
Main motor power |
2.2 KW (two speed) |
Coolant pump power |
90 W |
Tilt angle of vertical milling head |
±90° |
Overall dimension |
1300x1100x2000 mm |
N.W/G.W |
800/850 kg |
