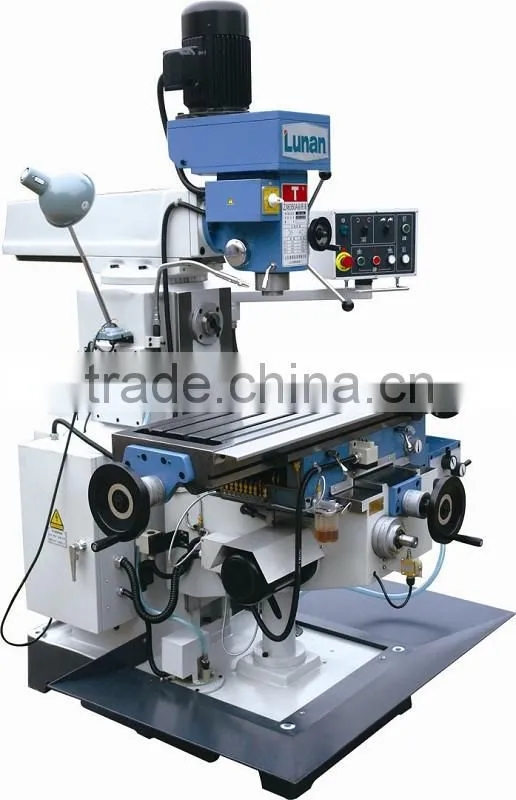

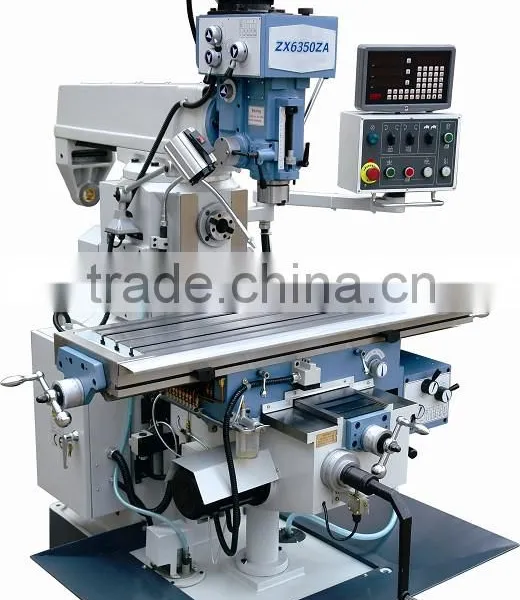

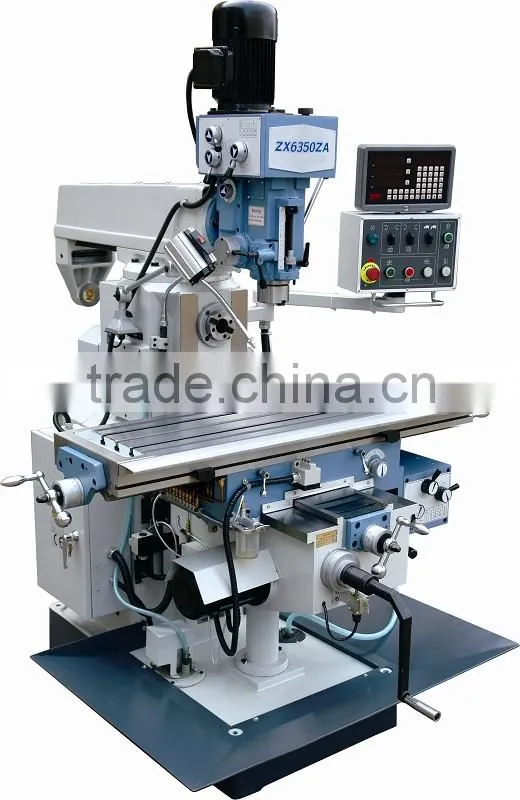

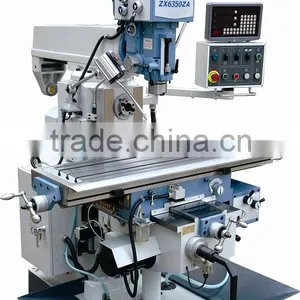

Help CenterDrilling and Milling Machine ZX6350ZA (Vertical and Horizontal)high Precision
Related Products
-
Drilling and Milling Machine ZX6332(Vertical and Horizontal)high PrecisionNegotiableMOQ: 1 Set -
Small Drilling and Milling Machine ZX50C for SaleNegotiableMOQ: 1 Set
-
High Quality Knee-type Drilling and Milling Machine ZX6332ANegotiableMOQ: 1 Set
-
High Precisions Knee-type Drilling and Milling Machine ZX6350C(UNIVERSAL)NegotiableMOQ: 1 Set
-
Drilling and Milling Machine ZX6350D With Competitive PriceNegotiableMOQ: 1 Set
Specifications
1.stable machine body and frame2.high precision and stable function
3.easy maintenace and repaire
4.with X,Y ,Zaxis auto
The horizontal knee-type milling machine is an universal metal cutting machine tools.Cylinder mill,round piece mill,shape mill and end mill can be installed on the conical hole of main pivot of the machine which is suitable for processing plane surface,oblique plane,groove,hole,gear of all kinds of small medium parts.User can select universal dividing head(a special auxiliary)to process groove of thread.The machine is an ideal processing equipment for machine manufacturing,mold,instrument,automobile motorcyole and other trades.
Item |
Unit |
ZX6350ZA |
Spindle taper |
|
7:24 ISO40 |
Max Automatic Feed Drilling Diameter (for Casting Iron) |
mm |
8 |
Max Manual Drilling Diameter (for Casting Iron) |
mm |
50 |
Max Diameter of Vertical Millng Arbour |
mm |
25 |
Max diameter of boring hole |
mm |
120 |
Worktable size |
mm |
1250×320 |
Worktable travel(L/H/V) |
mm |
600/300/280 |
Vertical spindle nose to worktable |
mm |
90---370 |
Horizontal spindle centerline to worktable |
mm |
0---280 |
Vertical spindle centerline to vertical guideway |
mm |
200---550 |
Spindle speed range |
r.p.m |
(8 steps)60---1500(Vertical) (12steps)30---1300(Horizontal) |
Automatic Power Feed of X,Y Axis |
mm/min |
(8 steps) 15-370 |
Vertical Spindle Travel |
mm |
120 |
Worktable t-slot (nunmber/width/distance) |
mm |
3/14/70 |
Main motor |
kw |
1.5(Vertical) 2.2(Horizontal) |
Worktable Automatic Power Feed Motor |
w |
750 |
Cooling Pmp Motor |
w |
40 |
Overall dimention |
mm |
1680×1480×2150 |
N.W/G.W |
kg |
1500/1600 |
