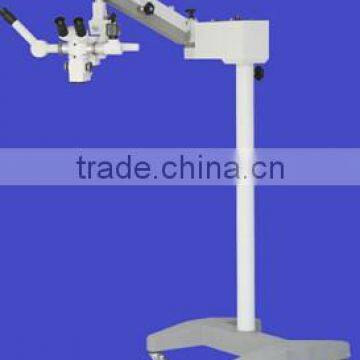

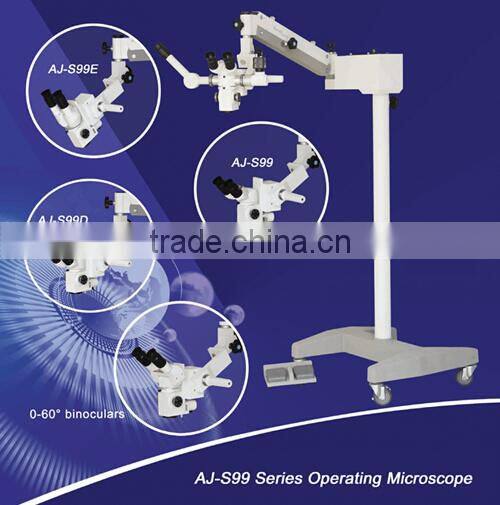

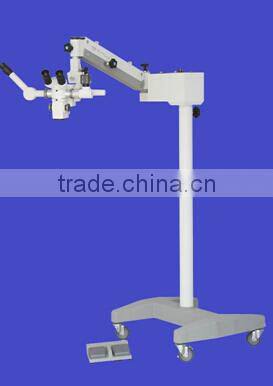

2015 Hot Selling Ophthalmic Operating Microscope (Halogen Lamp Source)
- Shanghai Beijing Shenzhen all cities of China
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Anhui, China | Brand Name | ANJUE | |
| Model Number | AJ-S99 | Theory | Biological Microscope | |
| Drawtube | Binocular |
Product Description
Ophthalmic Operating Microscope AJ-S99
SPECIFICATIONS
MICROSCOPE | |
Binoculars | 45° inclined f’=125 mm |
Objective | f’=200 mm, with red reflex module |
Eyepiece | 12.5x, high-eyepoint, wide angular, pupil exit distance 21mm |
Diopter adjustment | -5D to + 5D |
Magnification changer | 5 steps: 0.4x, 0.6x, 1x, 1.6x, 2.5x |
Total magnifications | 3x, 5x, 8x 13x, 20x |
Visual field | 56 mm- 9mm |
Interpupillary distance | 55mm to 75 mm |
Focusing | Micro-range of 40mm Motorized,pedal operated |
Working distance | 167 mm |
ILLUMINATION | |
Type | Coaxial illumination by optical light-guide system |
Cold light source | Halogen lamp, 15V/150W, twin bulbs |
Illumination control | 3steps |
Field of illumination | 50mm |
Power supply | AC 110V/220V - 220W |
Light intensity | 80,000 LUX |
Filter | Green, retinal protection |
ARM, STAND | |
Type | Pantographic arm, floor stand |
Range | 1210mm( 1st arm 330mm, 2nd arm 580mm, 3rd arm 330mm) |
Rotation angle | 270° |
Elevation stroke | 350 mm |
Base size | 600 mm x 560 mm |
Weight | 75 KGS |
ACCESSORIES | |
Binoculars |
|
Eyepiece | 10x, high-eyepoint, wide angular, pupil exit distance 21mm |
Objective | f’=200mm |
Beam splitter | Dismountable |
Adaptor for CCD | With iris diaphragm, f’=65 mm |
