2016 Anesthesia Machine With Ventilator (2 Vaporizers,3 Gas) CE Marked

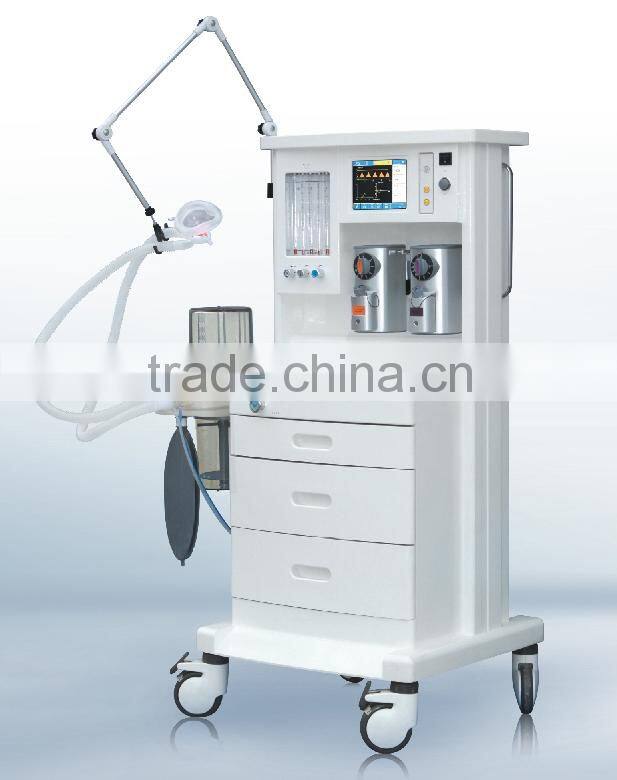

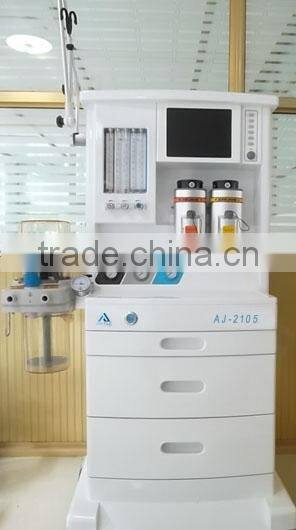

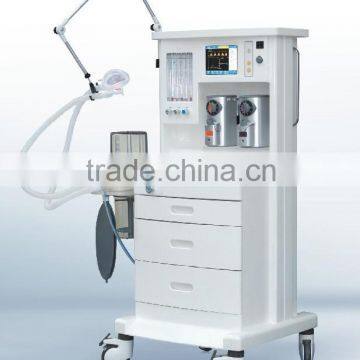

Anesthesia Machine with Ventilator AJ-2105

(2 Vaporizers, 3 Gas)

AJ-2105 Anesthesia Machine, with its ergonomic design, integrates a concise and smooth structure and high mobility. The microcomputer-controlled Ventilator adopts exported sensors and other components. Its scientific and proper design as well as rigorous production process is what demonstrates the inner quality of Anjue products: mechanical ventilation is made secure and visible by the folded respiratory bellows, and the security of air supply is guaranteed by pneumatic transmission and measurement system. With multiple modern technologies applied, the Anesthesia Machine is both outstanding in performance and versatile in functions.

       The Ventilator adopts microcomputer control with high-definition 8.4” TFT color LCD display, integrating the functions of respiratory control and displaying the monitoring parameters. It is versatile in function and excellent in performance.

        The high-precision Vaporizer is designed with a stable concentration output, automatic compensation for pressure, temperature and flow rate. And it is available to choose two kinds of gas from Halothane, Enflurane, Isoflurane, and Sevoflurane, ensuring a successful anesthesia operation.

         High-definition five-tube flowmeter (oxygen, nitrous oxide, and air), designed with stoppers for oxygen and nitrous oxide to control the output oxygen concentration.

         Reliable pneumatic transmission system.

       Economic and proper configuration of technologies, optional as required by the Customer.

        Modularized design and upgrading. Upgrading is available as required by the Customer.

TECHNICAL PARAMETERS

Part of Anesthesia Machine

Main body                 High-strength engineering plastic rack, light,

beautiful and corrosion resistant

Scope of application          adult, child

Gas source                 O2: 0.27~0.55MPa    N2O: 0.27~0.55MPa

Flow meter                 O2 : 0.1~1.0L/min   1.1~10L/min

N2O: 0.1~1.0L/min   1.1~10L/min

Air : 0.1~10L/min

O2, N2O linkage and N2O Stopper

When using nitrous oxide, oxygen concentration>25%;

When the oxygen pressure<0.2Kpa, the flow of nitrous oxide would be cut off.

Flow rate of rapid oxygen supply   25~75L/min

Low oxygen pressure alarm    There will be sound alarm when the oxygen pressure < 0.2MPa

Vaporizer                  It has the function of automatic compensation based on pressure, temperature, and flow rate. The regulation range of evaporator concentration is 0~5 vol%. Among Halothane,Enflurane, Isoflurane and Sevoflurane, two can be chosen for application as required by the customer. And vaporizers that are imported with original packaging are also available.

Respiratory circuit            working mode: all-close, semi-close, semi-open

                            APL: 0.5~7 kPa

Respiratory Bellows          bellows for adults, tidal volume range:0~1500 ml

         bellows for children, tidal volume range:0~300 ml

anyone can be chosen for application as

required by the customer

Part of Ventilator

Display mode               High-definition 8.4” TFT color LCD screen display

Ventilation  mode           IPPV, SIPPV, SIMV, PEEP, MANUAL,

                            SIGH, IMV, VCV, PCV

Ventilation parameters        Tidal volume  20~1500 ml

Rate         1~99 bpm

SIMV rate     2~20 bpm

I:E           4:1~1:8

Inspiratory trigger pressure   -1.0~2.0 kPa

PEEP         0~2.0 kPa

Pressure range 1.0~6.0 kPa

SIGH        1.5 times the inspiratory time

(70-150 adjustable)

Inspiratory platform  0~50%

Parameters for ventilation monitoring   tidal volume, ventilation volume, IPPV rate, SIMV rate,total respiratory rate, I/E, peak pressure of airway, average pressure, pressure - time waveform, flow rate - time waveform,PEEP,inspiratory trigger pressure, Inspiratory platform, autonomous inspiratory rate, lung compliance, airway resistance, flow-volume loop, pressure-volume loop

Monitoring of oxygen concentration     21%~100%

Security Alarm System

Oxygen Concentration alarm     upper limit setting range  21%~100%

low limit setting range    10%~80%

Airway pressure alarm          upper limit setting range  0.3~6.0 kPa

low limit setting range     0.2~5.0 kPa

Per-minute ventilation volume alarm   upper limit setting range   3.0~30L/min

low limit setting range   1.0~10L/min

Sustained high-pressure alarm    it will give alarm when stress have consistently

been higher than 2.5 kPa

Suffocation alarm              it will give sound and light alarm if there

is no tidal volume input for 15 seconds

Power alarm

Power                         AC 220V±10%     50Hz±1Hz

                                (UPS, Storage battery)

(Mechanical Arms)

End-expiratory CO2 monitoring)

*Items within brackets are optional.
