1.Deuterium Tungsten Halogen Light Source2.300-1050nm Wavelength Range
3.Compact and Stable

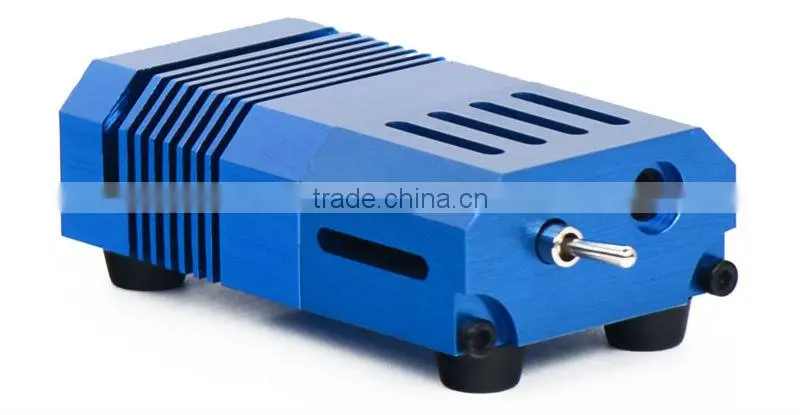

LS-1-CAL-INT
Calibrated for use with integrating sphere.
The LS-1-CAL-INT is designed for calibrating the absolute spectral response of your system when using the Fiber Optic Integrating Sphereas your sampling optic. The LS-1-CAL-INT comes with a PTFE diffuser plug that fits snugly into the sample port of the Integrating Sphere to measure absolute spectral intensities of LEDs and other emission sources.
Basic Specification
Spectral Range (calibrated): |
300-1050 nm (calibrated) |
Power Consumption: |
800 mA @ 12 VDC |
Power Output: |
4.85 watts |
Bulb Life: |
10000 hours (recommend recalibration after 50 hours of use) |
Recalibration: |
Required after ~50 hours of operation |
Bulb Color Temperature: |
2800 K |
Output Regulation: |
0.2% voltage |
Time to Stabilized Output: |
~30 minutes |
Connector: |
SMA 905 for fiber; 6.35-mm barrel for cosine corrector; PTFE plug for integrating sphere |
