1.USB2000B-ILX554(P/N: TS300554)2.Micro-spectrometer with 330-1100 wavelength range
3.Sony ILX554 sensor
USB2000B-ILX554(P/N: TS300554)
Mechanical Parameters | |||
Dimensions (mm) |
95×68.5×36 |
||
Weight (g) |
210 |
||
Detector Specfiation | |||
Detector |
Sony ILX554 2048 linear CCD array |
||
Wavelength Response Range (nm) |
330-1000 |
||
Active Pixels |
2048 | ||
Pixel size (um) |
14×56 |
||
Saturation Exposure(lx·s) |
0.004 |
||
Saturation Output Voltage |
1V |
||
A/D Resolution |
16 bit |
||
Dark Signal Voltage(mv) |
3 |
||
Sensitivity Non-uniformity |
1% |
||
Sensitivity (V/lx.s) |
240 |
||
Optical Bench | |||
Optical System |
f/4, asymmetrical crossed Czerny-Turner |
||
Focal length (mm) |
45 (Input); 70 (Output) |
||
Entrance Aperture (um) |
5, 10, 15, 20, 50 etc. width slits or fiber (customizable) |
||
Grating |
Various kinds of scoring grating or holographic grating with different grating constants and flare wavelengths (customizable) |
||
Cylindrical Lens |
optional |
||
Optical Filter |
Band pass or long pass filters to eliminate secondary spectrum |
||
Fiber and Fiber Connection |
NA 0.22, SMA905 (customizable) |
||
Spectroscopic | |||
Wavelength Range |
Depends on optical grating |
||
Optical Resolution (nm) |
0.2-10 FWHM (Depends on grating constant, width of slit and detector model) |
||
SNR |
300:1 (Full signal) |
||
Wavelength Tolerance (nm) |
About ±0.2 |
||
Dark noise (RMS counts) |
50 |
||
Integration Time |
2ms-4s |
||
Dynamic Range |
333 |
||
Stray Light |
<0.05% at 550nm |
||
Electronics | |||
Power Consumption |
300 mA×5 V DC |
||
Data Transfer Speed |
Full spectrum into memory every 2.4 ms at USB 2.0 |
||
Computer | |||
Operating System |
Windows /XP/Vista/7 /8(32 and 64) |
||
Interface |
USB 2.0 (480Mbps), compatible with USB 1.1 |
||
Pre-defined System Components | |||
Name |
Customizable Parts |
Remark |
|
Slit |
Width (µm) |
10, 20, 50, 100 .etc |
|
Grating |
Lines Per Unit (L/mm) |
300, 600, 1200, 1800 |
|
Wavelength Range(nm) |
200-1100 (User defined, about 650 range with 600 lines/mm grating) |
||
Fiber |
Core Diameter (µm) |
9, 50, 200, 400, 600 .etc |
|
Wavelength Range(nm) |
200-1100 |
||
Outer Protection Layer |
Normal or enhanced jacketing |
||
Interface Type |
SMA 905 (standard) or FC, ST .etc |
||
Detector |
Model |
Sony ILX554 |
|
Cylindrical Lens |
Optional |
Enhance system’s light gathering ability |
|
Optional Components | |||
Name |
Remark |
||
Light Source |
Used for wide range spectral measurements or wavelength calibration: for example halogen tungsten, xenon or argon light sources |
||
Integration Sphere |
Used to acquire uniform light |
||
Reflection Measurement Accessory |
Components used for reflection spectrum measurements: for example standard reflection board or specialized clamp |
||
Transmission Measurement Accessory |
Components used for transmission spectrum measurement: for example sample holder and various kinds of cuvettes |
||
Packing List | |||
Name |
Amount |
||
ToupTek Micro-spectrometer |
USB2000B |
||
Fiber with SMA 905 Interface |
1 |
||
Mini USB Data Transfer Wire |
1 | ||
CD of Software and SDK |
1 | ||
Basic Application for USB2000B
ToupTek’s spectrometer is applicable for spectral detection within the wavelength range between 200nm and 1100nm. Due to their high stability and performance, these portable instruments can greatly satisfy the increasing need for their use in scientfic research, industrial manufacture, and online detections and so on. ToupTek Spectrometer is capable of measuring:
- Spectral power distribution
- Absorbance, transmission
- Reflection
- Relative irradiance
- Chromaticity coordinates
- Color temperature
- Color rendering index
- Color tolerance
- Color difference
- Color purity
- Main wavelength
- Luminous flux
- Luminance
- Irradiance power
- Luminous efficiency
Detected Spectrum by USB2000B

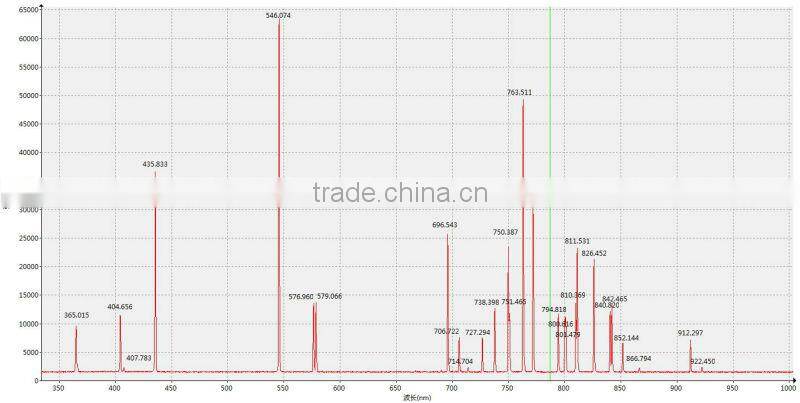

Spectrum of HG1 with ToupTek USB2000B

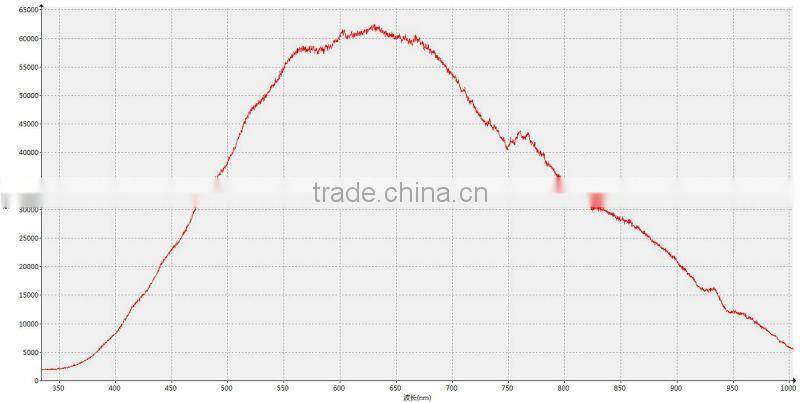

Tungsten_Halogen spectrum with ToupTek USB2000B
