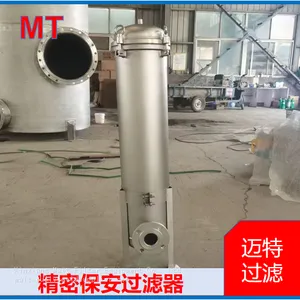

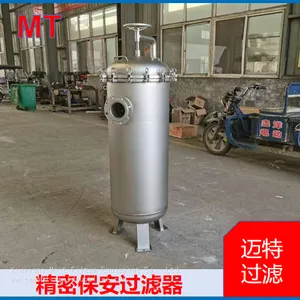

Help CenterPrecision Security Cartridge Filter, 304/316L Stainless Steel For RO Pre‑treatment Water Treatment
Product Spotlights
Related Products
-
Vertical Brush‑Type Self‑Cleaning Filter, Fully Automatic On‑line Backwash For Circulating Cooling WaterNegotiableMOQ: 1 Piece -
Y‑Type Manual Brush Strainer, On‑line Manual Cleaning Without Disassembly For Pipeline Water TreatmentNegotiableMOQ: 1 Piece
-
Basket‑Type Manual Brush Strainer, Large‑capacity Filter Basket, On‑line Cleaning Without DisassemblyNegotiableMOQ: 1 Piece
-
Angle‑Type Self‑Cleaning Filter, 90‑Degree Nozzle, On‑line Brush Cleaning For Circulating Cooling WaterNegotiableMOQ: 1 Piece
-
Horizontal Brush‑Type Self‑Cleaning Filter, Large Dirt‑holding Capacity For Circulating Cooling WaterNegotiableMOQ: 1 Piece

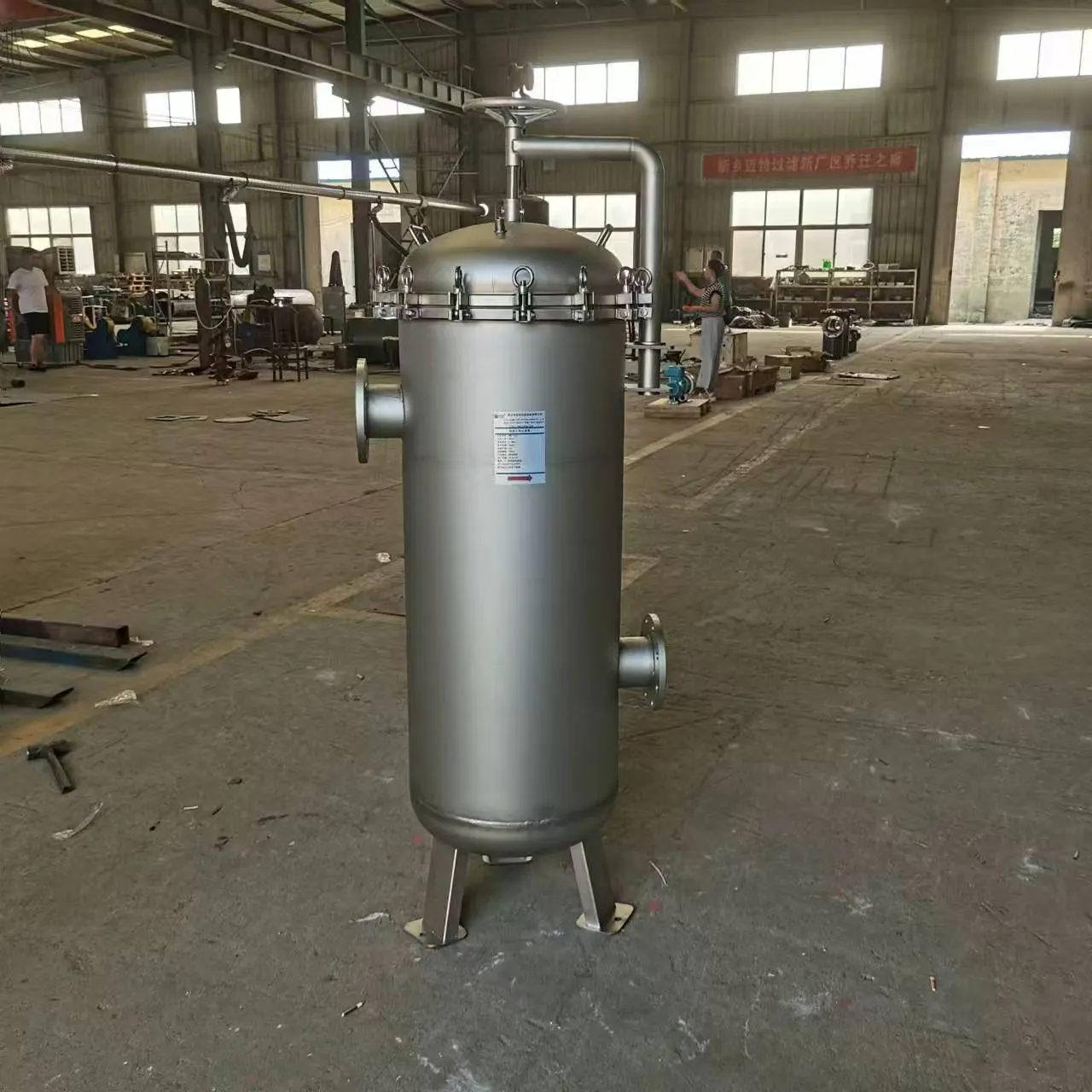

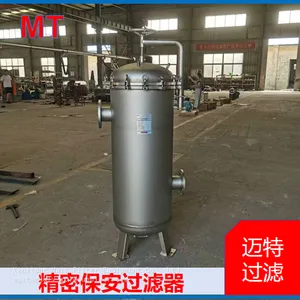

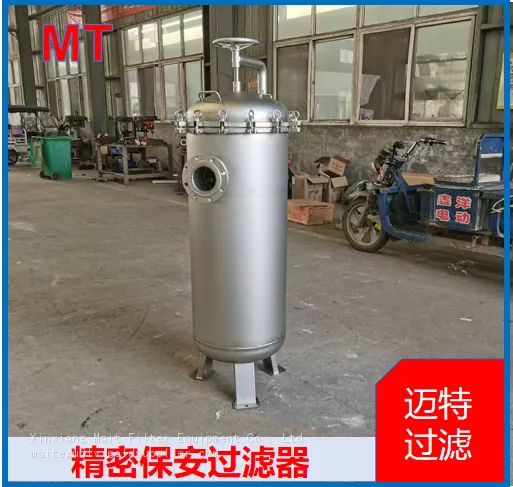

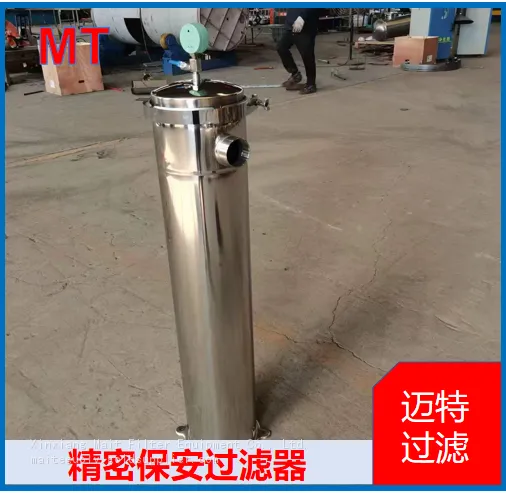

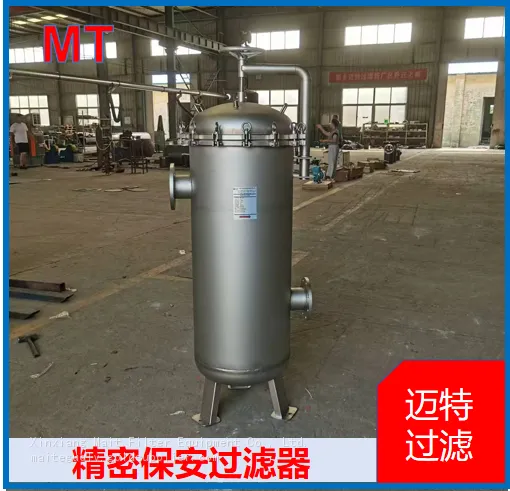

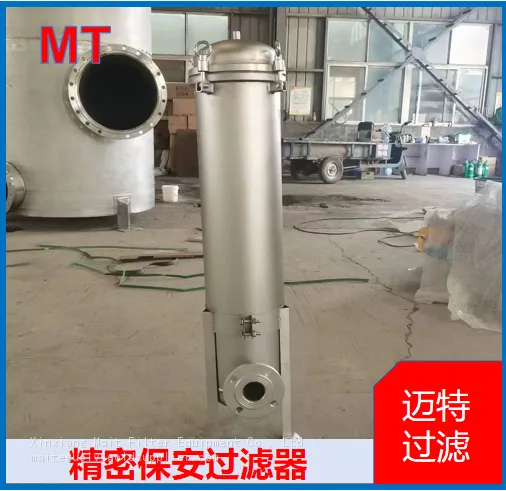

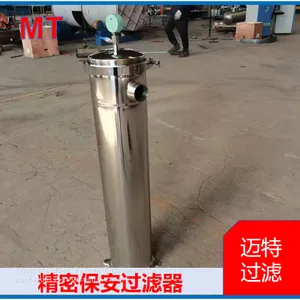

Precision security filter is essential fine‑protection equipment for industrial water‑treatment and liquid‑process system. It is usually installed as the last pre‑filtration unit before reverse osmosis and nanofiltration membrane, to prevent fine particles, colloids and rust from scratching and blocking expensive membrane elements.
Raw liquid enters filter housing, solid impurities larger than cartridge pore size are trapped on cartridge surface or inner layer. Clean liquid flows out for downstream process. Differential‑pressure gauge is equipped to judge cartridge blocking status. When differential‑pressure rises to setting value, replace filter cartridges. Quick‑open cover allows tool‑free cartridge replacement, greatly reduce downtime.

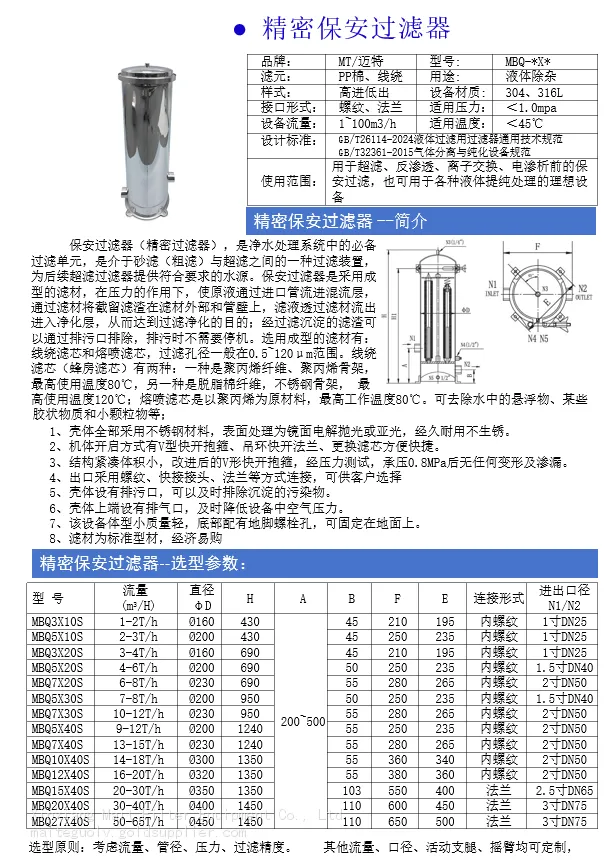

Housing is made of 304 or 316L stainless steel for anti‑corrosion. Flange connection PN1.0‑1.6MPa, working temperature ≤60℃. Multiple cartridge types available: PP melt‑blown, pleated, wire‑wound, precision 0.1‑100μm customizable, cartridge length 10‑40 inch optional.
Manufactured according to GB/T26114‑2024 standard. Widely applied in pure‑water making, electroplating, chemical, pharmaceutical and food‑beverage industry. Every unit passes pressure‑test before delivery, DN25‑DN200 multiple sizes for flow 1‑200m³/h optional.
