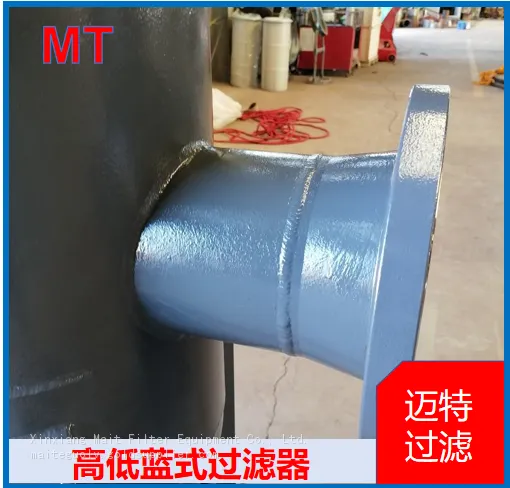

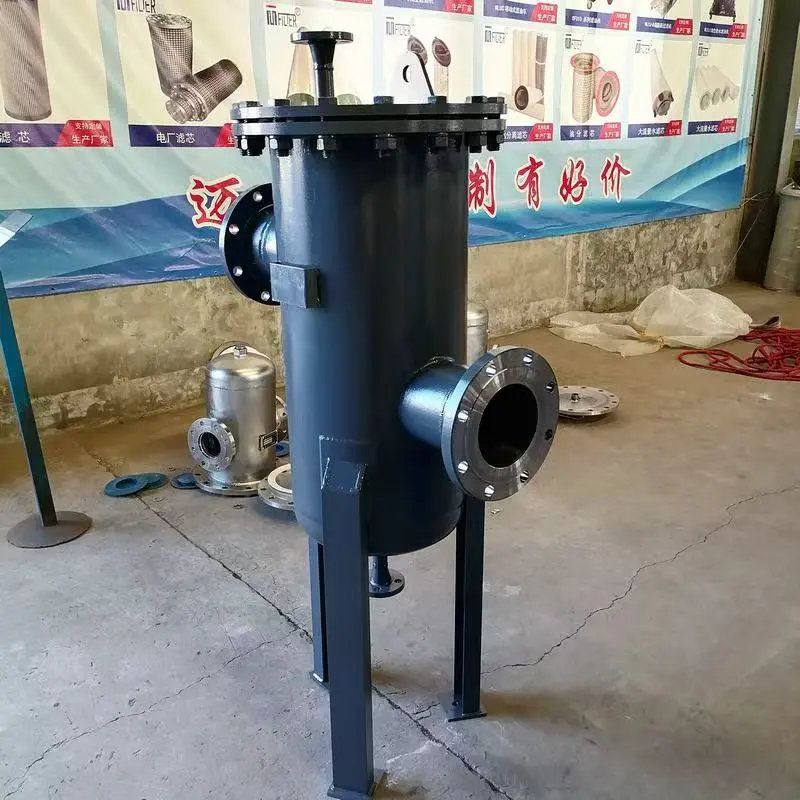

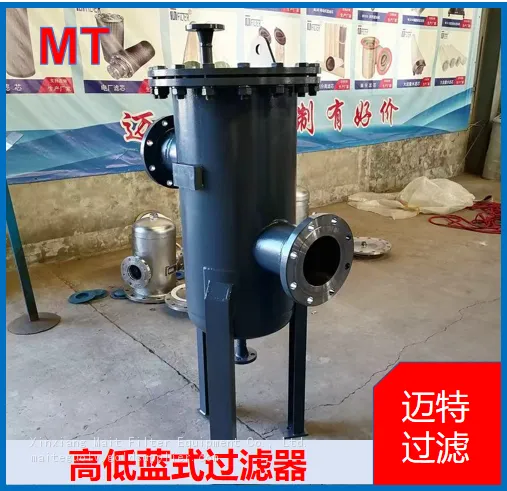

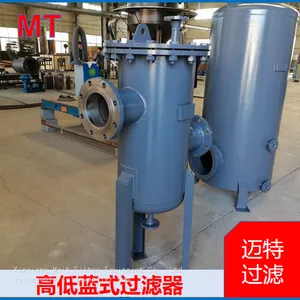

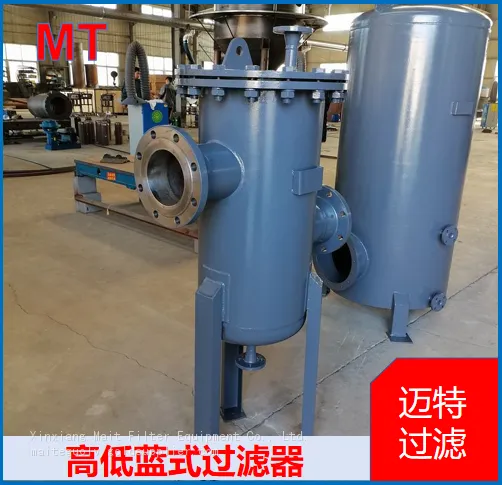

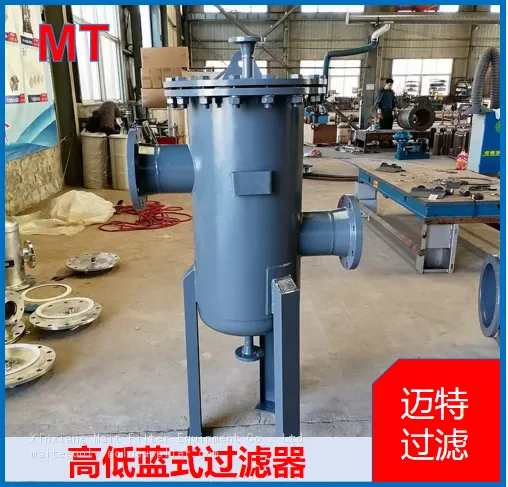

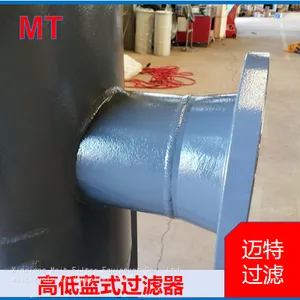

Help CenterHigh‑low Connection Basket Filter Industrial Pipeline Solid Impurity Strainer
Product Spotlights
Related Products
-
Stainless‑Steel Multi‑cartridge Precision Security Filter for RO Water PretreatmentNegotiableMOQ: 1 Piece -
Stainless‑Steel Vertical Automatic Self‑Cleaning Filter for Industrial Circulating Water TreatmentNegotiableMOQ: 1 Piece
-
Manual Cleaning Y‑Brush Filter for Industrial Circulating‑Water and Irrigation PipelineNegotiableMOQ: 1 Piece
-
Vertical Stainless‑Steel Hand‑Brush Basket Filter for Circulating‑Water and Irrigation PretreatmentNegotiableMOQ: 1 Piece
-
Stainless‑Steel Automatic Backwash Angle Filter for Industrial Circulating‑Water TreatmentNegotiableMOQ: 1 Piece

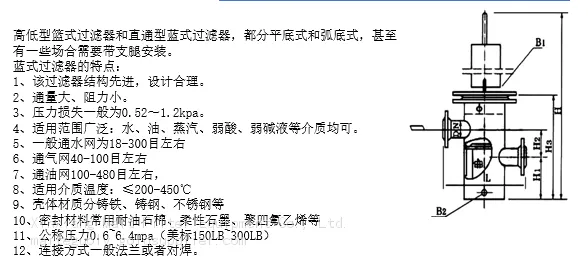

Both high‑low‑port basket strainers and straight‑through basket strainers are available in flat‑bottom and arc‑bottom types. Leg‑supported installation is required under certain working‑conditions.
Features of Basket Strainer
Advanced‑structured and well‑optimized design.
Large flow capacity and low fluid resistance.
Typical pressure loss ranges from 0.52 to 1.2 kPa.
Wide‑ranging medium adaptability for water, oil, steam, weak‑acid and weak‑alkali liquid.
Screen mesh size for water filtration: 18‑300 mesh
Screen mesh size for gas filtration: 40‑100 mesh
Screen mesh size for oil filtration: 100‑480 mesh
Allowable medium temperature: ≤200‑450℃
Housing material options: cast iron, cast steel and stainless‑steel
Common sealing materials: oil‑resistant asbestos, flexible graphite and PTFE
Nominal pressure: 0.6‑6.4 MPa (ANSI standard 150LB~300LB)
Connection modes: flange connection or butt‑weld connection
