E+H Flow Meter FLSE100-M 35SSTI
Product Description

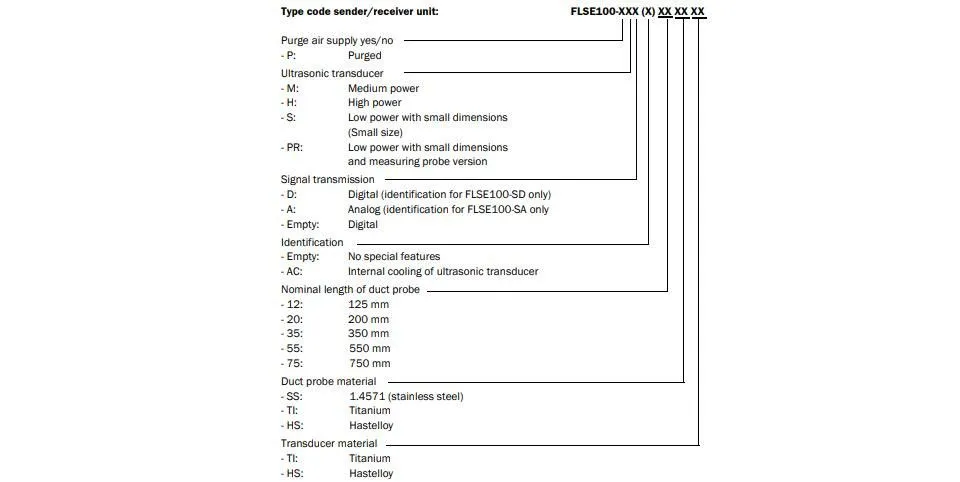

The FLOWSIC100 is specifically designed for emission monitoring applications. The “H” model is suitable for large-diameter stacks and applications with high dust content. In the “PR” model, the ultrasonic transducers are mounted in a single transmitter/receiver unit (measuring probe) with a fixed optical path. The “AC” model is equipped with an innovative internal cooling system and is suitable for gas temperatures up to 450 °C. The “Px” model, featuring a purge function, is suitable for gases containing high concentrations of sticky or moist dust.
| Item | Specification |
|---|---|
| Origin | USA |
| Measuring Principle | Ultrasonic transit-time method |
| Measured Variables | Actual volumetric flow, standard volumetric flow, gas flow velocity, sound velocity, gas temperature |
| Gas Velocity Measuring Range | 0 to ±40 m/s |
| Medium Temperature Range | -40 to +450 ℃ |
| Operating Pressure Range | -100 to 100 hPa |
| Nominal Pipe Duct Diameter | 0.15 to 13 m |
| Analog Output | 1 channel 0/2/4 to 20 mA, load resistance +750 Ω |
| Digital Output | 5 relay outputs (changeover contacts), passive, 48 V, 1 A |
| Duct Probe Nominal Length | 350 mm |
| Duct Probe Material | 1.4571 stainless steel |
| Sensor Material | Titanium |
| Protection Class | IP66 / TYPE 4X |
Performance Features
Rugged, durable titanium transducers with a long service life
H, M, and S models support integrated measurement based on duct diameter
PR-type probes, suitable for single-sided installation inside ducts
Automatic operational checks with zero and span tests
Reliable flow measurement for ducts ranging from small to extra-large diameters
No purge air required for applications with gas temperatures up to 260 °C
Accurate measurement results even under harsh measurement conditions
No pressure loss during measurement, so process operations are not affected
User-friendly operation via SOPAS ET software
Enhanced diagnostic functions ensure reliable operational monitoring
Optional Features and Accessories
Corrosion-resistant materials for corrosive gases
ASCII RS-485 (via optional interface module)
RTU RS-485 (via optional interface module)
TCP (via optional interface module)
Profibus (via optional interface module)
Electrical isolation; provides five outputs when using an expansion module (optional)
Product Applications
Emissions monitoring in the chemical and hydrocarbon processing (HPI) industries; emissions measurement in the manufacturing sector (cement, steel, glass)
