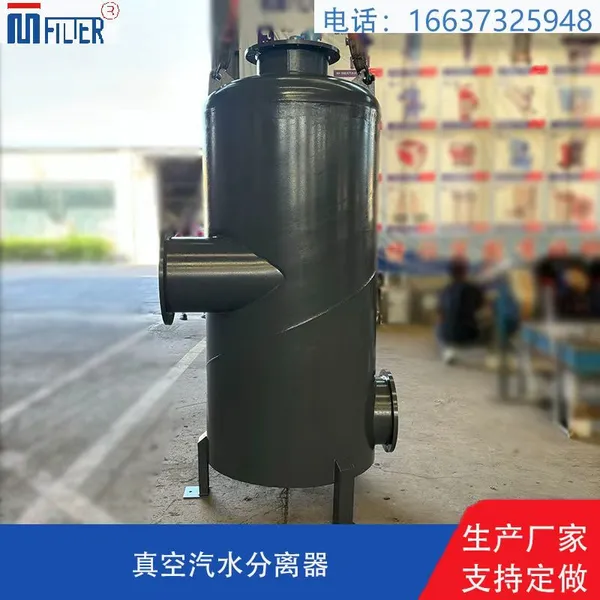

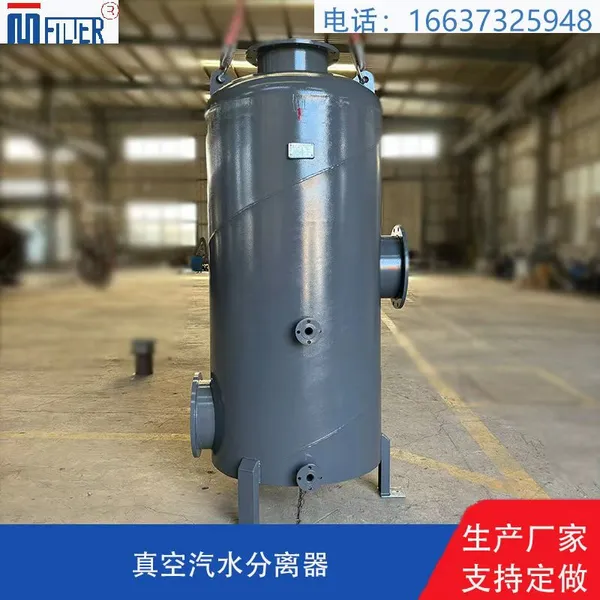

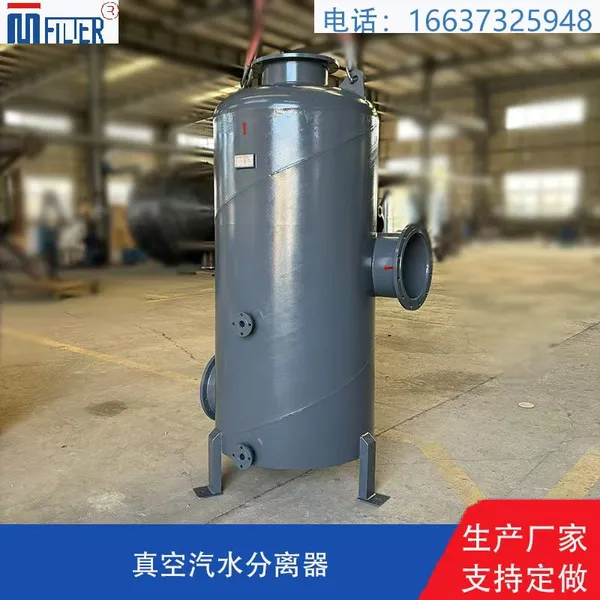

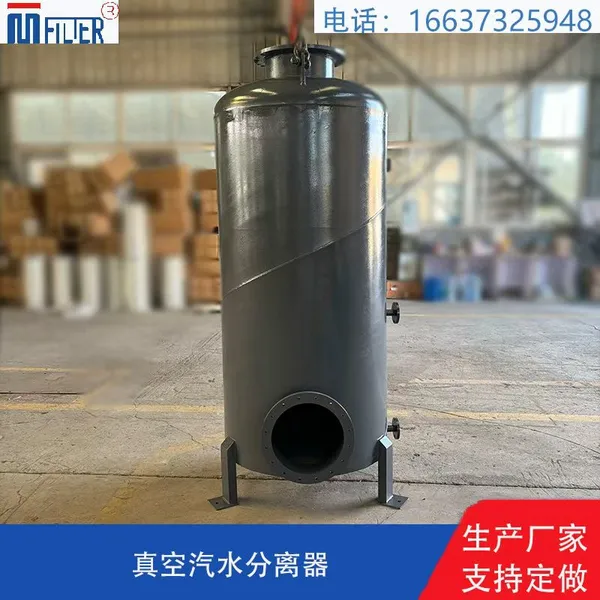

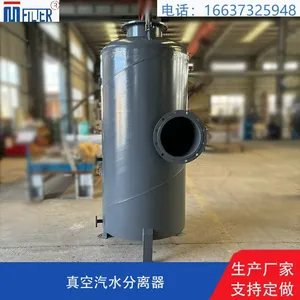

Help CenterMaite MGLS Vertical Cyclone‑Interception Vacuum Gas‑Liquid Separator
Product Spotlights
Related Products
-
Maite MWDF Horizontal Multi‑Stage Baffle‑Type Gas‑Liquid SeparatorNegotiableMOQ: 1 Piece -
Mine Pressure‑Air Pipeline Multi‑Composite Steam‑Water SeparatorNegotiableMOQ: 1 Piece
-
Maite Inlet‑Outlet Blower‑Pipeline Moisture & Impurity FilterNegotiableMOQ: 1 Piece
-
Mini Vacuum Pipeline Gas-Liquid Separator, Anti Water HammerNegotiableMOQ: 1 Piece
-
MT‑Maite MLYJ‑S Portable Hand‑held Oil Filter Machine 1‑50μm Oil Impurity Removal Filter EquipmentNegotiableMOQ: 1 Piece
The separator is mainly matched with vacuum‑dehydration systems in the paper‑making industry. During paper‑machine papermaking, gas‑liquid mixtures generated from wet‑end components including vacuum suction boxes, vacuum transfer rolls, vacuum presses and felt vacuum rolls are commonly discharged together by vacuum pumps. This separator realizes separate discharge of gas and liquid, which cuts down the vacuum‑pump power consumption for water drainage, extends pump service life and lowers environmental pollution.
It serves as a pre‑separation unit matched with liquid‑ring vacuum pumps or Nash‑type pumps. Gas‑liquid mixtures delivered from the wet‑end pass through the cyclone separation assembly. Gas is extracted by the vacuum pump while separated liquid is drained by the FPB‑type filtrate pump mounted at the separator bottom for recycling.
Gas enters the separator tangentially through the inlet. Inertial force drives the airflow to spin against the cylinder inner wall and generate centrifugal force. Built‑in flow‑deflecting plates guide the swirling airflow downward along the cylinder. Water droplets carried by the fluid are thrown onto the inner wall under centrifugal force and gravity, then flow down into the bottom water‑storage tank before being pumped‑out by the filtrate pump.
After swirling downwards, gas is drawn upward toward the top outlet under the negative‑pressure suction of the vacuum pump. Airflow velocity drops during the upward movement, so water vapour condenses into droplets and falls back into the water sump. A wire‑mesh mist eliminator can be installed at the top outlet for secondary droplet interception and coalescence.
Boasting an exclusive structural design, the separator features simple installation and maintenance plus stable operation. It belongs to energy‑saving and eco‑friendly processing equipment.
