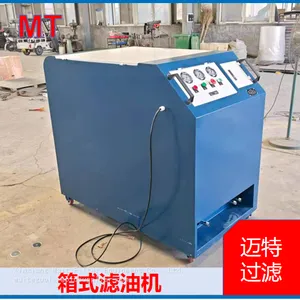

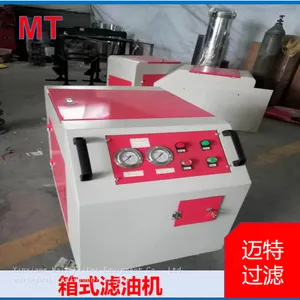

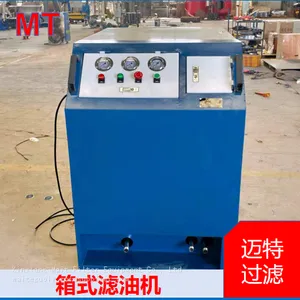

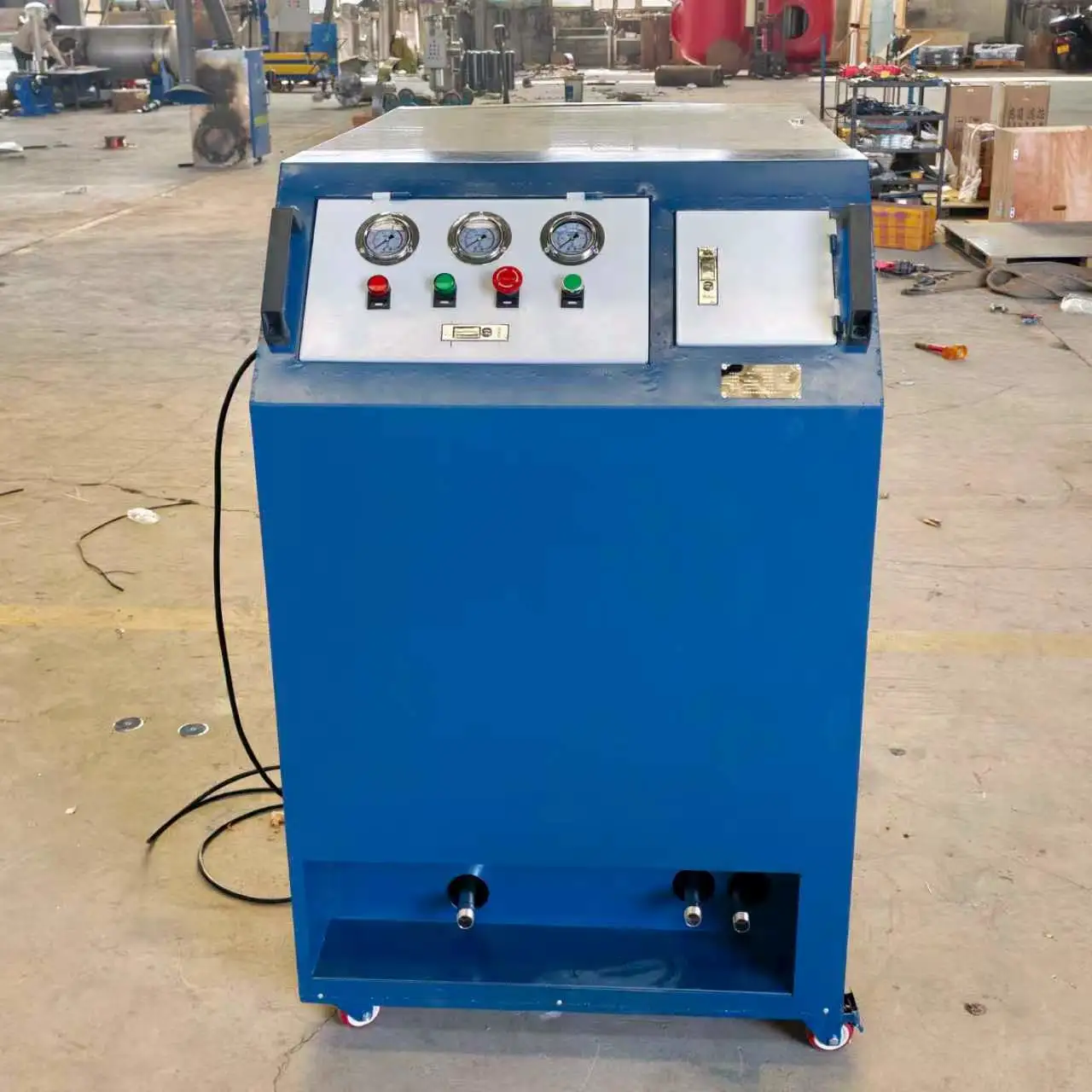

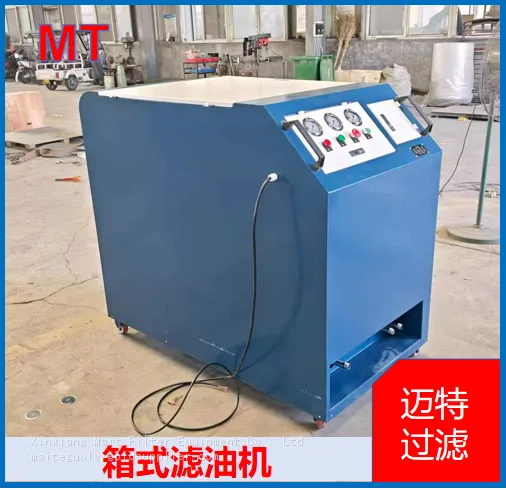

Help CenterCabinet Type Pressure Oil Purifier For Hydraulic Oil Transformer Oil Filtration
Product Spotlights
Related Products
-
Mobile High‑Viscosity Oil Purifier With Special Viscous‑Oil Gear PumpNegotiableMOQ: 1 Piece -
Mobile High‑Solid‑Content Oil Purifier With Large Dirt‑Holding Filter CartridgeNegotiableMOQ: 1 Piece
-
Mobile Ultra‑Precision Oil Purifier Micron‑Level Fine Particle RemovalNegotiableMOQ: 1 Piece
-
Mobile Plate‑and‑Frame Pressure‑Type Oil Purifier For Impurity and Trace‑moisture RemovalNegotiableMOQ: 1 Piece
-
Portable Oil‑Filling Filter Trolley For Lubricating‑Oil, Transformer‑Oil Online PurificationNegotiableMOQ: 1 Piece

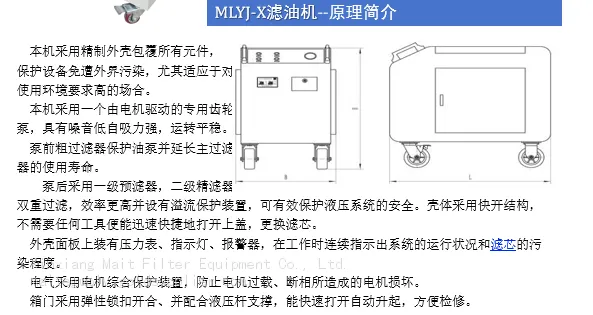

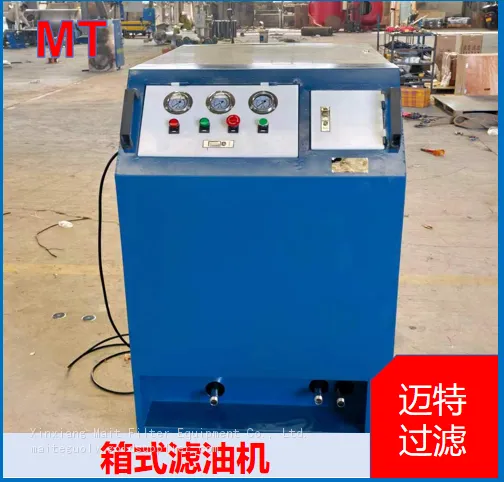

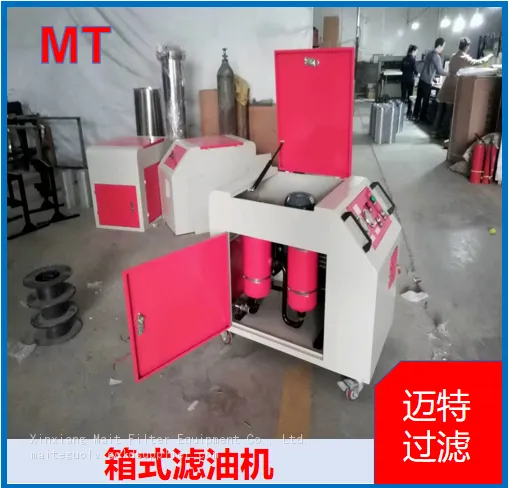

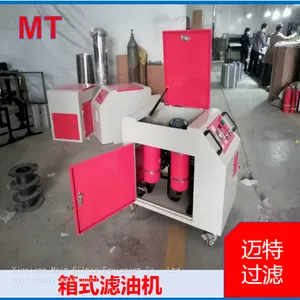

All components are enclosed by an exquisite sealed‑type housing to shield the unit from external contamination, which makes it well‑suited for working occasions with strict environmental requirements.A motor‑dedicated gear pump is adopted, characterized by low‑noise operation, powerful self‑priming capacity and steady rotation.The coarse filter fitted before the oil pump protects the pump assembly and prolongs the service life of the main filter element.Dual‑stage filtration consisting of the primary pre‑filter and secondary fine filter is arranged behind the pump for high‑efficiency purification. An overflow‑protection component safeguards the hydraulic system. The quick‑open filter housing allows fast top‑cover opening and filter‑element replacement without any tools.Pressure gauge, indicator lights and an alarm device are mounted on the outer‑shell panel to display real‑time operating status and filter‑cartridge contamination level.The integrated motor‑protection system prevents motor breakdown caused by overload and phase‑loss failure.The cabinet door is equipped with elastic latches and hydraulic struts. It can spring‑open automatically for convenient inspection and maintenance.
