Help CenterCoalescence Dehydration Oil Purifier
Product Spotlights
Physical purification at ambient temperature without heating, no change to oil properties.
Integrated dehydration and filtration unit for simultaneous water and particle removal.
Treated oil water content can be reduced below 100 ppm.
Skid‑mount mobile frame with casters for convenient on‑site transportation.
Related Products

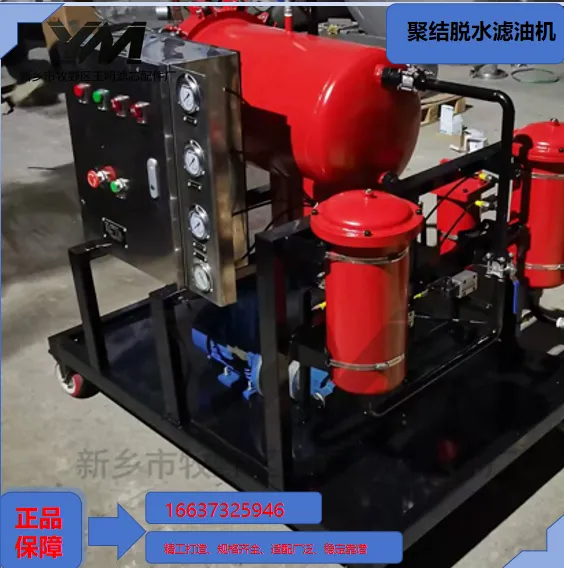

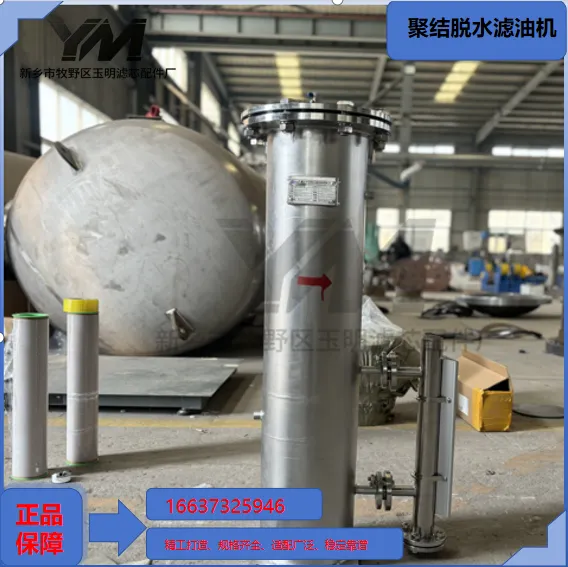

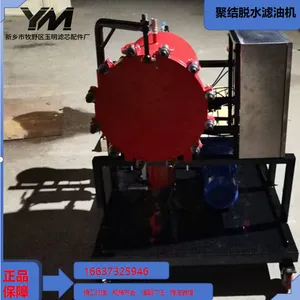

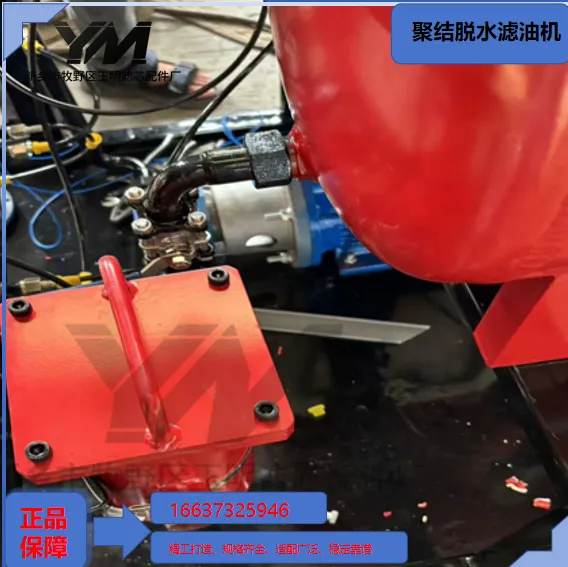

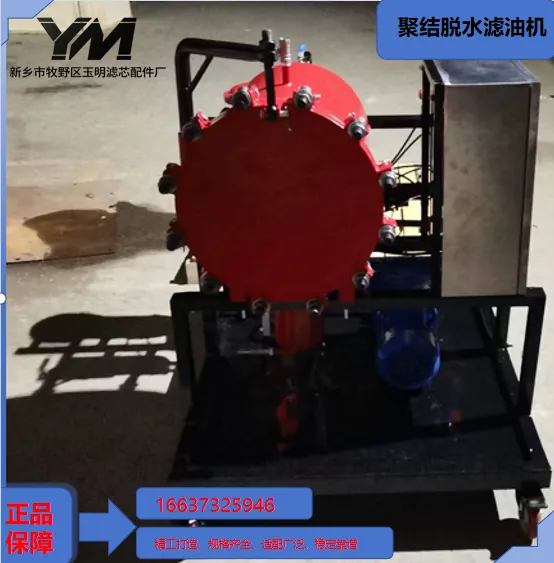

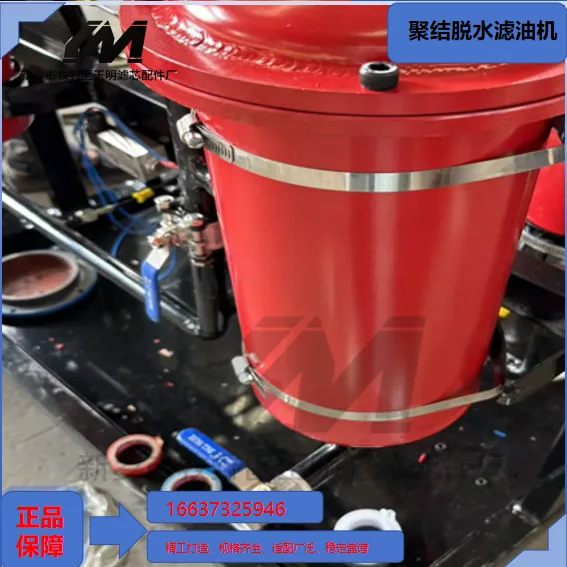

Coalescing‑dehydration oil purifier is a non‑heating physical oil‑purification device adopting coalescing‑separation dual‑element technology. It is mainly used for hydraulic oil, turbine oil, transformer oil, diesel oil and other oils. It breaks oil‑water emulsion state, removes free water and emulsified water, and filters solid particle contaminants simultaneously. Moist‑laden oil first passes through coalescing filter element. Tiny water droplets are demulsified and aggregated into large droplets, part of which sink to bottom water‑collecting chamber by gravity. Then oil flows through hydrophobic separation filter element to block fine water droplets for oil‑water separation. Multi‑stage particle filters remove metal powder, rust and solid impurities. The skid‑mount mobile unit consists of driving pump, pre‑filter, coalescing housing, separation housing, fine‑filter housing, pressure gauges, relief valve, electric control box and bottom water‑drain assembly. Rated flow rate 25‑400 L/min, filtration precision 3‑25 μm. Water content of treated oil can drop below 100 ppm with cleanliness up to NAS 6‑8 class. Equipped with differential‑pressure alarm, overload protection and automatic drain device. Operate at ambient temperature without heating and will not change oil physical‑chemical properties. Widely applied in power‑plant steam turbines, steel‑plant hydraulic stations, engineering machinery and transformer maintenance. It supports offline circulating filtration, new‑oil filling and on‑line bypass purification. Explosion‑proof motor is optional. It serves as domestic replacement for PALL HCP series coalescing oil purifiers.
