Short Description

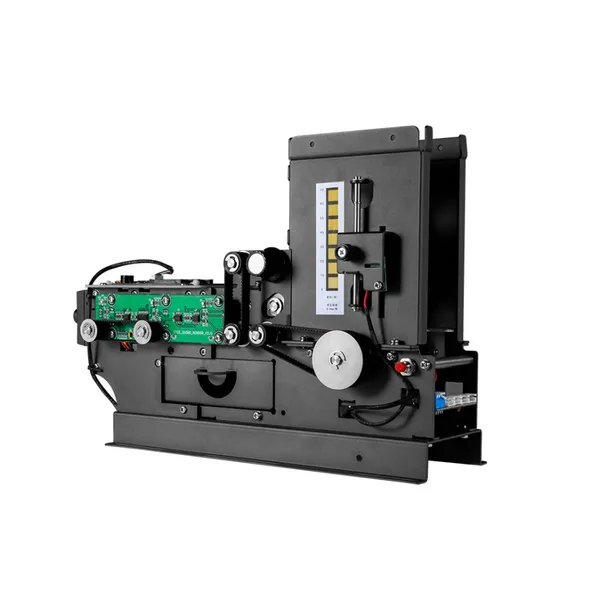

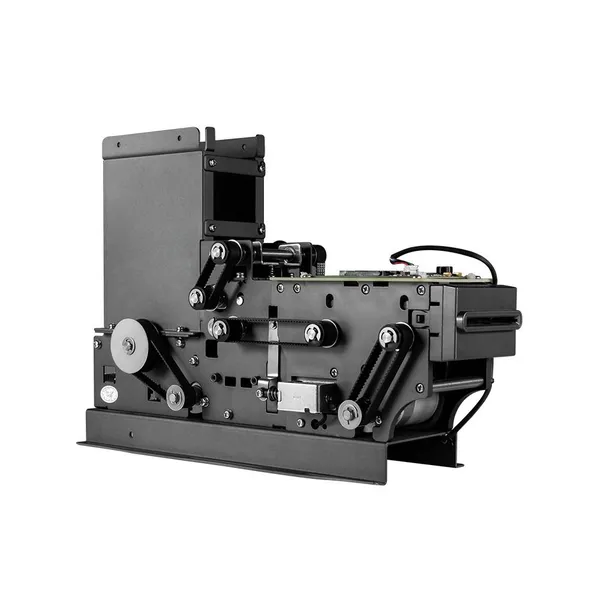

SNR-K720 is an industrial RFID card dispenser module designed for self-service kiosks, hotel check-in terminals, parking systems and card issuing equipment. Integrated with a single-layer RF reader board, it supports MIFARE 1 card reading, writing and issuing. With adjustable card thickness from 0.2mm to 2.0mm, 150-card stacker capacity, card retrieval function and RS232 host control, K720 provides a reliable card issuing solution for kiosk manufacturers and system integrators.
Product Overview
SNR-K720 is an industrial RFID card dispenser module designed for embedded kiosks and automated card issuing systems.
Different from standard mechanical card dispensers, K720 integrates RFID read/write capability and card issuing functions into one compact module.
The system supports:
RFID card reading
RFID card writing
Automatic card dispensing
Card retrieval
Card status monitoring
It adopts a friction card issuing mechanism, adjustable card thickness structure and RS232 host communication, making it suitable for hotel, parking, transportation and self-service card applications.
Key Features
Integrated RFID Read / Write / Issue Function
SNR-K720 integrates a single-layer RF reader board supporting:
MIFARE 1 card reading
MIFARE 1 card writing
RFID card issuing
Advantages:
Simplifies kiosk design
Reduces external RFID module requirements
Enables automated card issuance
Adjustable Card Thickness Design
K720 supports different card materials and thicknesses:
0.2mm - 2.0mm adjustable
Compatible with:
PVC cards
Polyester cards
Paper cards
Slightly deformed cards
150 Card Storage Capacity
Built-in card holder supports:
150 standard cards (0.76mm thickness)
Benefits:
Less frequent card loading
Suitable for unattended kiosks
Improved operational efficiency
Reliable Card Dispensing Mechanism
The special friction card issuing structure provides:
Stable card feeding
Double-card prevention
Reliable dispensing performance
Pre-Dispensing Function
Supports pre-dispensing operation.
Benefits:
Faster repeated card issuing
Improved user waiting experience
Suitable for high-volume applications
Card Retrieval Function
Integrated card retrieving box supports:
Captured card collection
Returned card collection
Suitable for:
Failed card handling
Card recycling applications
Card Status Monitoring
Supports:
Card empty detection
Pre-empty detection
Sound alarm notification
Helps host systems monitor unattended operation status.
Applications
Hotel Self-Service Check-in Kiosk
Applications:
Hotel key card issuing
Self check-in terminal
Smart hotel kiosk
Benefits:
Automatic room card dispensing
Reduced front desk workload
24/7 unattended operation
Parking Access Control System
Applications:
Parking card issuing terminal
Access control kiosk
Payment station
Transportation Card Issuing
Applications:
Transit card kiosk
Public transportation terminal
Ticket card issuing machine
Membership Card & Vending System
Applications:
Membership card kiosk
Card initialization equipment
Self-service issuing terminal
Queue & Ticketing Terminal
Applications:
Queue management system
Ticket issuing kiosk
Self-service card terminal
Technical Specifications
| Item | Specification |
|---|---|
| Model | SNR-K720 |
| Product Type | RFID Card Dispenser |
| RF Module | Single Layer RF Reader Board |
| Card Function | MIFARE 1 Read / Write / Issue |
| Card Size | 54 ±0.5mm × 85 ±0.5mm |
| Card Thickness | 0.2-2.0mm Adjustable |
| Card Material | Paper Card / Polyester Card |
| Stacker Capacity | 150 Cards (0.76mm) |
| Interface | RS232 |
| Power Supply | 24VDC |
| Max Current | 2A |
| Static Current | 0.1A |
| Weight | Approx. 2.0kg |
Additional Technical Features
| Item | Specification |
|---|---|
| Card Stay Position | Multiple Card Position Control |
| Few Card Alert | 7-50 Cards Adjustable |
| Card Retrieval | Supported |
| Double Card Prevention | Friction Dispensing Structure |
| Pre-Dispensing | Supported |
| Communication | RS232 Host Control |
| Operating Temperature | -20℃ ~ 85℃ |
| Humidity | 30%-90% RH |
Integration Advantages
Designed for Kiosk Manufacturers
SNR-K720 is designed for cabinet installation and host control through RS232 commands.
Flexible Card Compatibility
Adjustable card thickness helps integrators support different card types for different projects.
Faster Card Issuing
Pre-dispensing function improves continuous card output speed for high-volume applications.
Why Choose SNR-K720?
RFID Card Issuing + Dispenser in One Module
Compared with simple card dispensing mechanisms, K720 provides:
RFID read/write capability
Card issuing
Card retrieval
Empty card alerts
Pre-dispensing
Reliable for Unattended Deployment
Designed for:
Hotel automation
Parking systems
Transportation kiosks
Self-service terminals
Customization Options
Available:
RFID module customization
Mechanical mounting design
Card holder customization
Communication protocol customization
OEM branding
FAQ
Q1: What cards does SNR-K720 support?
SNR-K720 supports MIFARE 1 cards with read, write and issuing functions.
Q2: How many cards can K720 hold?
It supports up to 150 cards based on standard 0.76mm card thickness.
Q3: Can K720 handle different card thicknesses?
Yes. The card thickness can be adjusted from 0.2mm to 2.0mm.
Q4: Does it support card recycling?
Yes. The card retrieval box supports captured or returned card collection.
Q5: What communication interface does it use?
SNR-K720 uses RS232 host control interface.
