Short Description
SNR-KP803-VX is an industrial 80mm kiosk thermal printer with integrated paper/ticket presenter and recycler function, designed for self-service kiosks, ticketing terminals, ATM machines, vending machines and charging stations. Featuring 250mm/s high-speed printing, automatic ticket presentation, paper recycling, black mark detection and durable structure, KP803-VX provides a reliable printing and ticket handling solution for unattended applications. Supporting USB, RS232 and LAN interfaces with Windows/Linux/Android SDK, it is ideal for kiosk manufacturers and system integrators.
Product Overview

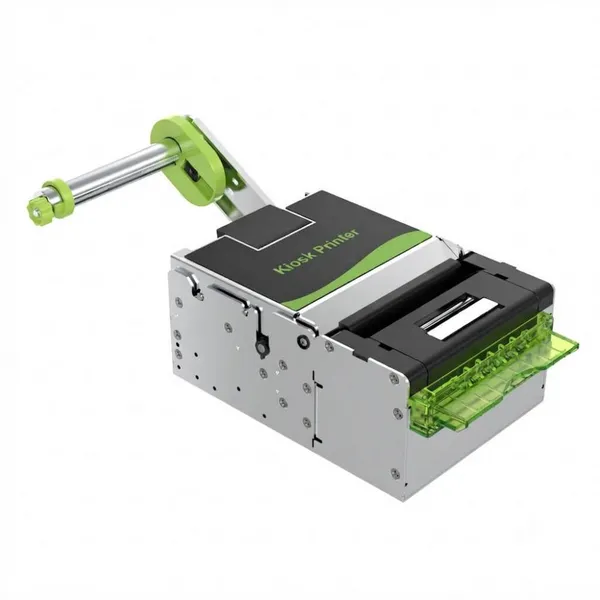

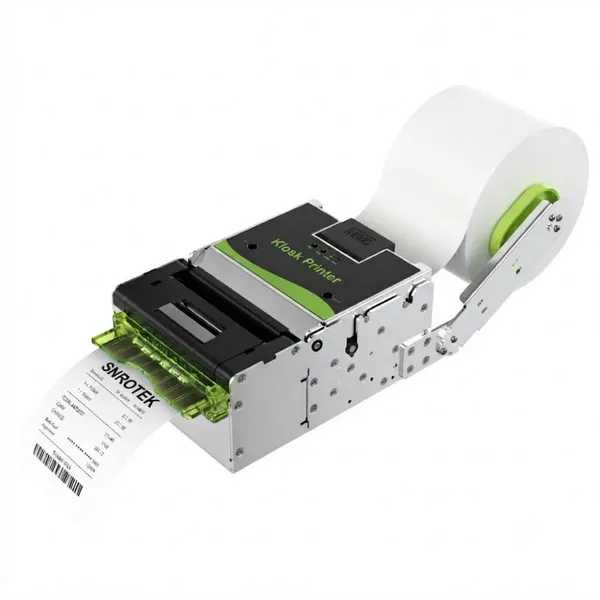

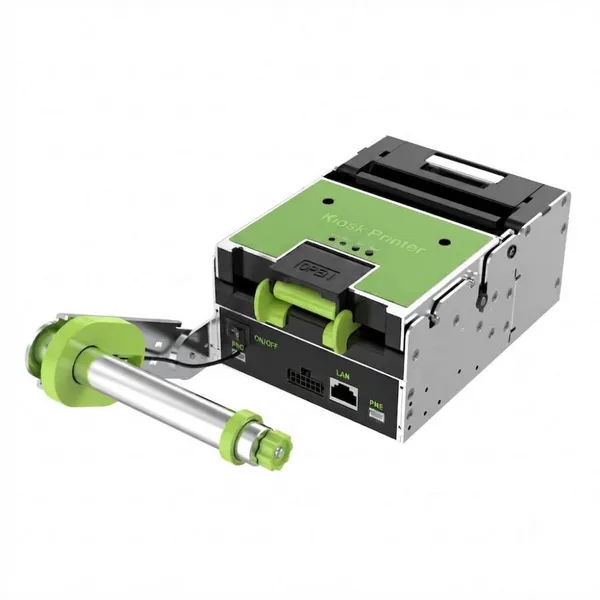

SNR-KP803-VX is a high-performance 80mm kiosk thermal printer module with ticket presenter and recycler function designed for applications requiring controlled ticket output and automatic paper management.
Different from standard kiosk printers, KP803-VX integrates:
Thermal printing
Automatic ticket presenting
Ticket/paper recycling
Black mark detection
Large roll paper support
After printing, the ticket can be automatically presented to the user. If the ticket is not collected within the configured time, the system can recycle the paper back into the internal recycling mechanism, improving security and reducing paper waste.
With its compact embedded structure and industrial reliability, KP803-VX is suitable for unattended terminals requiring reliable ticket management.
Key Features
Integrated Ticket Presenter & Recycler
KP803-VX provides complete ticket output management:
Printing
Ticket presenting
Ticket collection
Paper recycling
Advantages:
Prevents forgotten tickets
Reduces paper waste
Improves unattended terminal reliability
Suitable for 24/7 operation
High-Speed 80mm Thermal Printing
Features:
Direct thermal printing
80mm print width
203dpi resolution
Printing speed up to 250mm/s
Suitable for:
Tickets
Receipts
Coupons
Labels
Supports Continuous Paper & Black Mark Paper
Compatible paper types:
Thermal receipt paper
Black mark paper
Continuous ticket paper
Paper specification:
Width: 48-82.5mm
Maximum roll diameter: 150mm
Thickness: 0.055-0.15mm
Reliable Industrial Structure
Designed for kiosk environments:
Strong metal structure
Stable paper feeding
High print quality
Long service life
Reliability:
Cutter life: 1,000,000 cuts
Thermal print head life: 150km
Intelligent Paper Detection
Built-in sensors:
Print head temperature detection
Cutter position detection
Platen position detection
Paper near-end detection
Black mark detection
Optional:
Bezel sensor
Paper splitter with recycling
Barcode Printing Support
Supports:
1D Barcode
UPC-A
UPC-E
JAN/EAN8
JAN/EAN13
CODE39
ITF
CODEBAR
CODE128
CODE93
2D Barcode
QR Code
PDF417
Applications
Parking Ticket System
Applications:
Parking entry terminal
Parking exit terminal
Payment kiosk
Benefits:
Automatic ticket presentation
Uncollected ticket recycling
Reduced maintenance
Transportation Ticketing
Applications:
Metro ticket machine
Bus ticket terminal
Railway ticket kiosk
ATM Machine
Applications:
Transaction receipt printer
Banking self-service terminal
EV Charging Station
Applications:
Charging receipt printing
Payment confirmation terminal
Vending Machine
Applications:
Smart vending terminal
Payment kiosk
Queue Management System
Applications:
Queue ticket dispenser
Service terminal
Technical Specifications
| Item | Specification |
|---|---|
| Model | SNR-KP803-VX |
| Printer Type | 80mm Kiosk Thermal Printer |
| Printing Method | Direct Thermal |
| Print Width | 80mm |
| Resolution | 203dpi |
| Printing Speed | 250mm/s Max |
| Paper Type | Thermal Paper / Black Mark Paper |
| Paper Width | 48-82.5mm |
| Paper Roll Diameter | 150mm Max |
| Paper Thickness | 0.055-0.15mm |
| Presenter Function | Supported |
| Recycler Function | Supported |
| Cutter Type | Full Cut |
| Cutter Life | 1,000,000 cuts |
| Print Head Life | 150km |
| Barcode | 1D / 2D Barcode |
| Interface | USB + RS232 + LAN |
| Command | ESC/POS |
| Power Supply | DC24V 2A |
| Dimension | 182.1 × 116.6 × 72.6mm |
| Weight | 1.64kg |
Why Choose SNR-KP803-VX?
More Than a Kiosk Printer
KP803-VX is not only a thermal printer, but a complete ticket output management module with presenting and recycling capability.
Designed for Unattended Terminals
The presenter and recycler function improves:
User experience
Terminal security
Maintenance efficiency
Reliable for Commercial Deployment
With industrial structure, large paper roll support and long-life components, KP803-VX is suitable for large-scale kiosk projects.
Easy Integration
Supports:
ESC/POS commands
USB
RS232
LAN
Windows/Linux/Android SDK
Customization Options
Available:
Ticket presenter configuration
Recycler configuration
Interface customization
Cable customization
OEM branding
FAQ
Q1: What is a kiosk printer with presenter function?
A kiosk printer with presenter function automatically feeds and holds the printed ticket at the output position until the user collects it.
Q2: What is the recycler function used for?
The recycler function collects unclaimed tickets or paper back into the printer to prevent waste and improve unattended operation.
Q3: What applications use KP803-VX?
It is widely used in parking systems, ticket vending machines, ATM terminals, charging stations and self-service kiosks.
Q4: Does KP803-VX support barcode printing?
Yes. It supports 1D and 2D barcode printing including QR Code and PDF417.
Q5: What interfaces are supported?
USB, RS232 and LAN interfaces are available.
