Short Description
SNR-CD3000-D is an industrial motorized card collector module designed for self-service kiosks, hotel key card return systems, visitor management terminals, access control equipment and ticketing machines. Featuring motor-driven card collection, automatic card return, card positioning control and infrared detection, it provides reliable card intake and recycling for unattended terminals. With RS232 half-duplex communication and optional card reader/scanner integration, CD3000-D is an ideal card collection solution for kiosk manufacturers and system integrators.
Product Overview

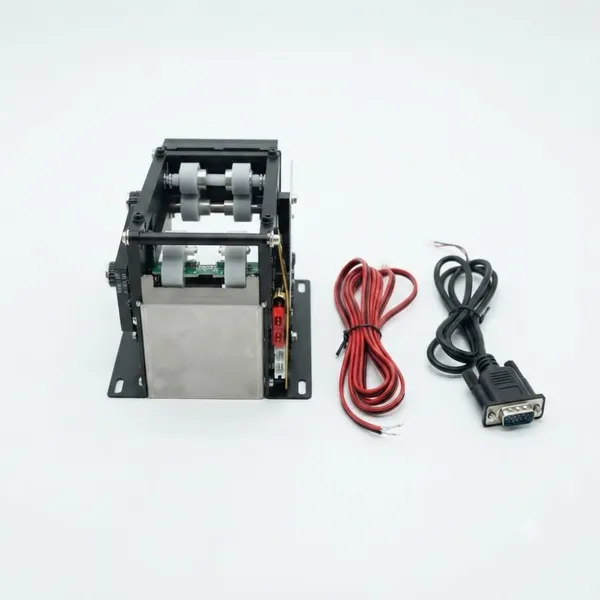

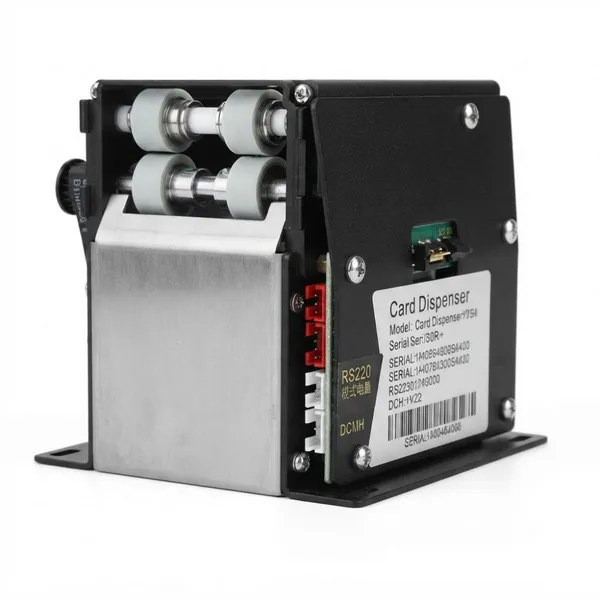

SNR-CD3000-D is a compact motorized card collector module designed for unattended self-service terminals requiring automatic card intake, card retention and card recycling.
Unlike traditional passive card slots, CD3000-D uses a motor-driven rubber roller transport mechanism to actively control card movement.
The module supports:
Front card insertion
Automatic card collection
Card positioning
Card return operation
Card recycling applications
It is designed for reliable integration into hotel kiosks, access control terminals, visitor management systems, ticket machines and other automated equipment.
Key Features
Automatic Motorized Card Collection
CD3000-D provides automatic card intake and collection for unattended terminals.
Functions:
Card insertion
Motorized card transport
Card positioning
Card return
Benefits:
Improves self-service efficiency
Reduces manual card handling
Enables unattended card recycling

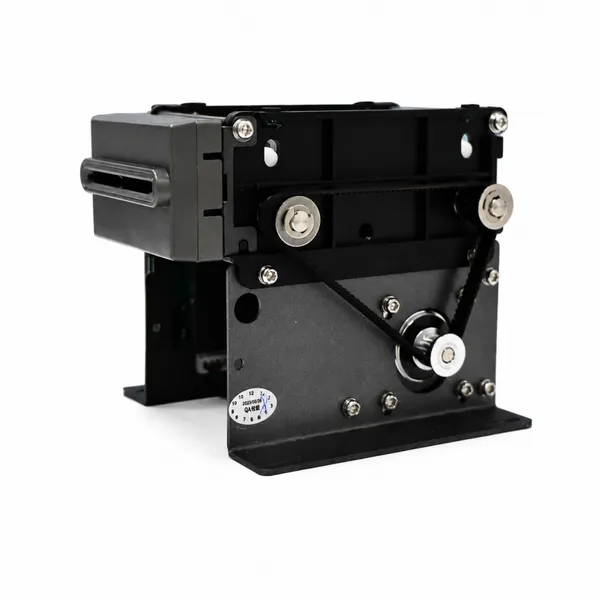

Reliable Card Transport Mechanism
The module adopts:
Motor-driven rubber roller transport
Stable card movement
Controlled card positioning
Suitable for continuous kiosk operation.
Intelligent Self-Recovery Function
Built-in recovery logic helps clear the card path after abnormal operation.
Advantages:
Reduces card transport failures
Improves terminal availability
Minimizes maintenance requirements
Infrared Card Detection System
Integrated infrared photoelectric sensors support:
Card status monitoring
Reliable detection
Long service life

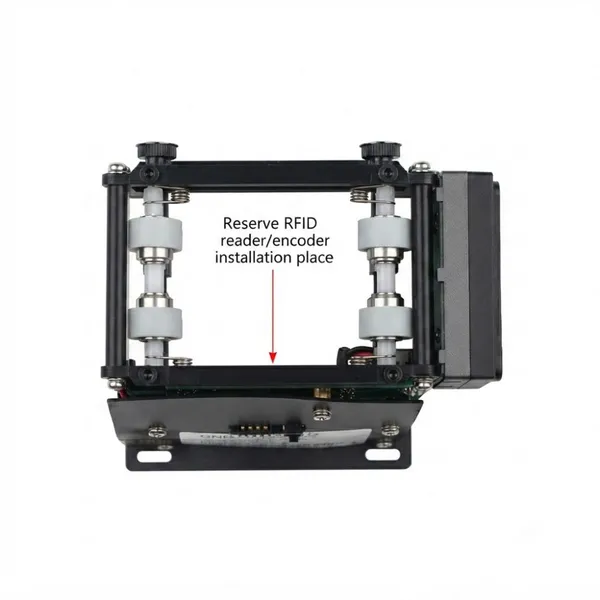

Optional Reader / Scanner Integration
The card channel supports customized integration of:
RFID card reader
Card scanner
Other identification modules
Suitable for customized kiosk projects.
Industrial Structure Design
Construction:
Metal structure
Engineering plastic components
Advantages:
Wear resistance
Corrosion resistance
Long-term operation reliability
Applications
Hotel Self-Service Kiosk
Applications:
Hotel key card return kiosk
Room card recycling terminal
Express checkout system
Benefits:
Automatic room card collection
Reduces front desk workload
Supports unattended operation
Visitor Management System
Applications:
Visitor card return terminal
Access control kiosk
Security management system
Ticketing System
Applications:
Ticket vending machine
Card recycling terminal
Transportation card collection equipment
Parking System
Applications:
Parking payment kiosk
Parking card return terminal
Unattended payment equipment
Membership & Transit Card Systems
Applications:
Membership card return
Transit card recycling
Service card collection equipment

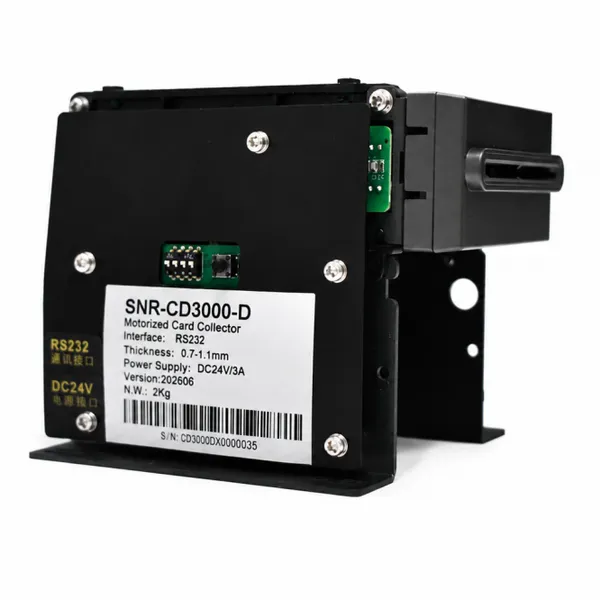

Technical Specifications
| Item | Specification |
|---|---|
| Model | SNR-CD3000-D |
| Product Type | Motorized Card Collector |
| Function | Automatic Card Collection and Return |
| Communication Interface | RS232 Half-Duplex |
| Connector | PH-3PIN |
| Power Supply | 24VDC ±10% |
| Card Size | 85.47-85.90mm × 53.92-54.18mm |
| Card Thickness | 0.7-1.1mm |
| Card Transport Method | Motor-driven Rubber Roller |
| Transfer Time | Approx. 1.5 seconds |
| Weight | Approx. 0.7kg |
Detailed Specifications
| Item | Specification |
|---|---|
| Material | Metal + Engineering Plastic |
| Peak Current | |
| Static Current | |
| Operating Temperature | 0℃ ~ 50℃ |
| Operating Humidity | 20%-80% RH |
| Storage Temperature | -15℃ ~ 55℃ |
| Card Exit Holding Length | 35mm ±2mm |
| Reliability | >800,000 cycles |
| MTBF | >200,000 hours |
Integration Advantages
Designed for Kiosk Manufacturers
CD3000-D is designed for embedded kiosk installation where cards need to be:
Collected
Returned
Retained by command
Easy Host Control
RS232 half-duplex communication enables:
Host command control
Card status monitoring
Terminal integration
Flexible Customization
Available options:
Card reader integration
Scanner integration
Mechanical mounting customization
Project-specific configuration
Why Choose SNR-CD3000-D?
Motorized Alternative to Passive Card Slots
Compared with traditional card slots, CD3000-D provides:
Active card transport
Sensor-based detection
Self-recovery logic
RS232 command control
Designed for Unattended Operation
Suitable for:
Hotel automation
Visitor management
Parking systems
Card recycling equipment
FAQ
Q1: What is a motorized card collector?
A motorized card collector is an electronic module that automatically receives, transports and collects cards inside self-service terminals.
Q2: What cards does CD3000-D support?
It supports standard card sizes:
85.47-85.90mm × 53.92-54.18mm
with card thickness:
0.7-1.1mm.
Q3: Can CD3000-D be used for hotel key card return?
Yes. It is designed for hotel self-service kiosks and room card return systems.
Q4: Does it support RFID reader integration?
Yes. The card channel supports customized scanner or card reader integration.
Q5: What communication interface is supported?
CD3000-D uses RS232 half-duplex communication.
