Short Description
SNR-KP804-VX is an industrial 80mm kiosk thermal printer designed for self-service kiosks, parking terminals, ATM machines, vending machines and ticketing systems. Featuring 250mm/s high-speed printing, anti-drag ticket protection, anti-pull function and jam-free bezel design, KP804-VX ensures smooth ticket output and reliable unattended operation. Supporting thermal paper, black mark paper and thermal labels, with USB, RS232 and LAN interfaces, it is an ideal printing module for kiosk manufacturers and system integrators.
Product Overview

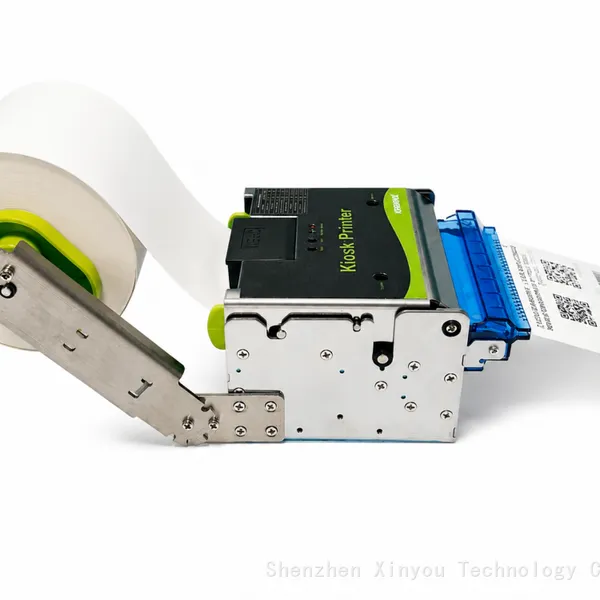

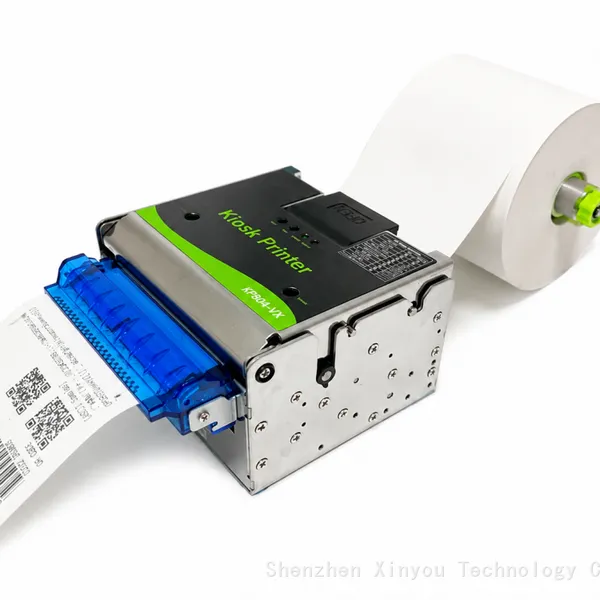

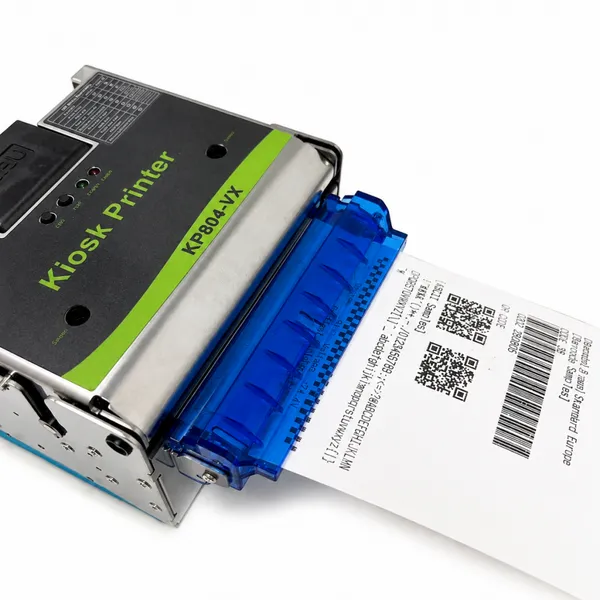

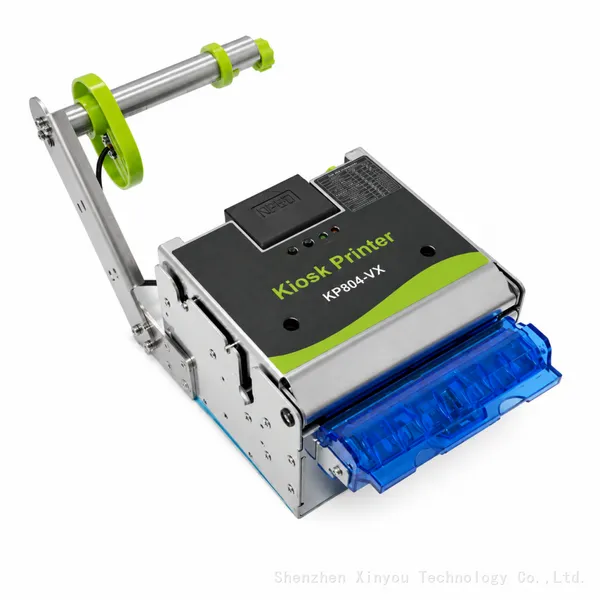

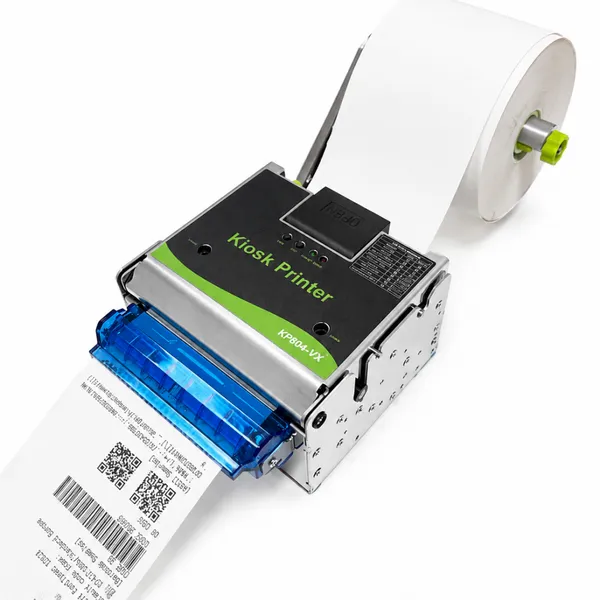

SNR-KP804-VX is a professional 80mm kiosk thermal printer module designed for applications requiring reliable ticket printing and secure paper handling.
Compared with standard kiosk printers, KP804-VX focuses on improving user interaction and preventing paper-related failures through advanced paper control technologies:
Anti-drag ticket protection
Anti-pull ticket protection
Jam-free bezel structure
Automatic paper feed
Black mark detection
The printer adopts a compact embedded structure with industrial-grade reliability, making it suitable for long-term operation in unattended self-service terminals.
Key Features
Anti-Drag Ticket Protection
KP804-VX prevents users from manually pulling tickets during the printing process.
Benefits:
Protects internal paper mechanism
Reduces ticket jams
Improves printer lifetime
Ensures stable ticket output
Anti-Pull Ticket Function
Designed for public self-service environments.
Features:
Prevents forced ticket pulling
Protects cutter mechanism
Improves terminal reliability
Ideal for:
Parking terminals
Ticket kiosks
Public self-service machines
Jam-Free Bezel Design
The specially designed bezel structure helps prevent:
Paper blocking
Ticket accumulation
Output failures
Advantages:
Smooth ticket delivery
Reduced maintenance
Better user experience
High-Speed 80mm Thermal Printing
Features:
Direct thermal printing
80mm maximum print width
203dpi resolution
250mm/s maximum printing speed
Suitable for:
Tickets
Receipts
Coupons
Labels
Supports Multiple Paper Types
Compatible with:
Thermal receipt paper
Black mark paper
Thermal label paper
Specifications:
Paper width: Max 82.5mm
Roll diameter: Max 150mm
Thickness: 0.055-0.15mm
Large Paper Roll Capacity
Supports up to:
150mm paper roll diameter
Advantages:
Less paper replacement
Lower maintenance cost
Suitable for 24/7 kiosk operation
Barcode Printing Support
Supports:
1D Barcode
UPC-A
UPC-E
JAN/EAN8
JAN/EAN13
CODE39
ITF
CODEBAR
CODE128
CODE93
2D Barcode
QR Code
PDF417
Flexible Integration
Interfaces:
USB
RS232
LAN
Software:
Windows Driver
Linux Driver
OPOS Driver
Windows SDK
Android SDK
Linux SDK
Command:
ESC/POS
Applications
Parking Ticket System
Applications:
Parking entry terminal
Parking payment kiosk
Exit terminal
Benefits:
Reliable ticket output
Anti-pull protection
Reduced maintenance
Transportation Ticketing
Applications:
Metro ticket machine
Bus ticket terminal
Railway ticket kiosk
ATM Machine
Applications:
Bank receipt printing
Transaction receipt terminal
EV Charging Station
Applications:
Charging receipt printer
Payment confirmation kiosk
Vending Machine
Applications:
Product receipt printing
Smart vending terminal
Queue Management System
Applications:
Queue ticket printer
Service terminal
Technical Specifications
| Item | Specification |
|---|---|
| Model | SNR-KP804-VX |
| Printer Type | 80mm Kiosk Thermal Printer |
| Printing Method | Direct Thermal |
| Print Width | 80mm Max |
| Resolution | 203dpi |
| Printing Speed | 250mm/s Max |
| Paper Type | Thermal Receipt / Black Mark Paper / Thermal Label |
| Paper Width | Max 82.5mm |
| Roll Diameter | Max 150mm |
| Core Diameter | 25mm |
| Paper Thickness | 0.055-0.15mm |
| Barcode | 1D / 2D Barcode |
| Cutter Type | Full / Partial Cut |
| Cutter Life | 1,000,000 cuts |
| Thermal Head Life | 150km |
| Interface | USB + RS232 + LAN |
| Command | ESC/POS |
| Power Supply | DC24V 2A |
| Dimension | 132.1 × 116.6 × 72.6mm |
| Weight | Approx. 1.15kg |
Why Choose SNR-KP804-VX?
Designed for Public Self-Service Terminals
KP804-VX is optimized for environments where users interact directly with printed tickets.
Improved Ticket Reliability
Anti-drag, anti-pull and jam-free bezel technologies reduce paper-related failures.
Industrial Durability
Designed for:
Long operating hours
High-frequency printing
Unattended deployment
Easy Integration
Supports:
ESC/POS command
USB / RS232 / LAN
Windows/Linux/Android SDK
Customization Options
Available:
Interface customization
Cable customization
Mounting customization
Firmware customization
OEM branding
FAQ
Q1: What is the main advantage of KP804-VX?
KP804-VX provides anti-drag, anti-pull and jam-free bezel protection for reliable ticket printing in self-service terminals.
Q2: Does KP804-VX support ticket recycling?
No. KP804-VX is designed for reliable ticket printing and output protection. It does not include ticket recycling function.
Q3: What paper does KP804-VX support?
It supports thermal receipt paper, black mark paper and thermal label paper.
Q4: What is the maximum printing speed?
The maximum printing speed is 250mm/s.
Q5: What systems can integrate with KP804-VX?
Windows, Linux and Android systems are supported through drivers and SDK.
