Short Description
KP-800-VX is a compact 80mm kiosk thermal printer designed for self-service kiosks, parking systems, vending machines, ticket terminals and retail automation equipment. Featuring high-speed 250mm/s printing, automatic paper loading, auto cutting, large paper roll support and flexible USB/RS232 interfaces, it provides a reliable embedded printing solution for kiosk manufacturers and system integrators.
Product Overview

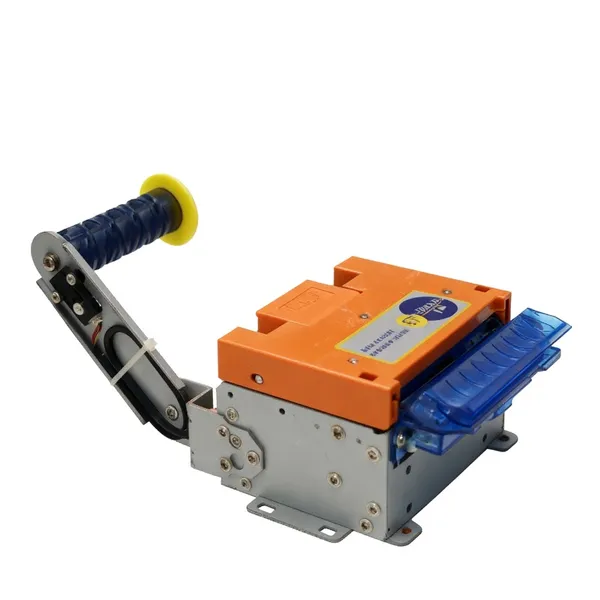

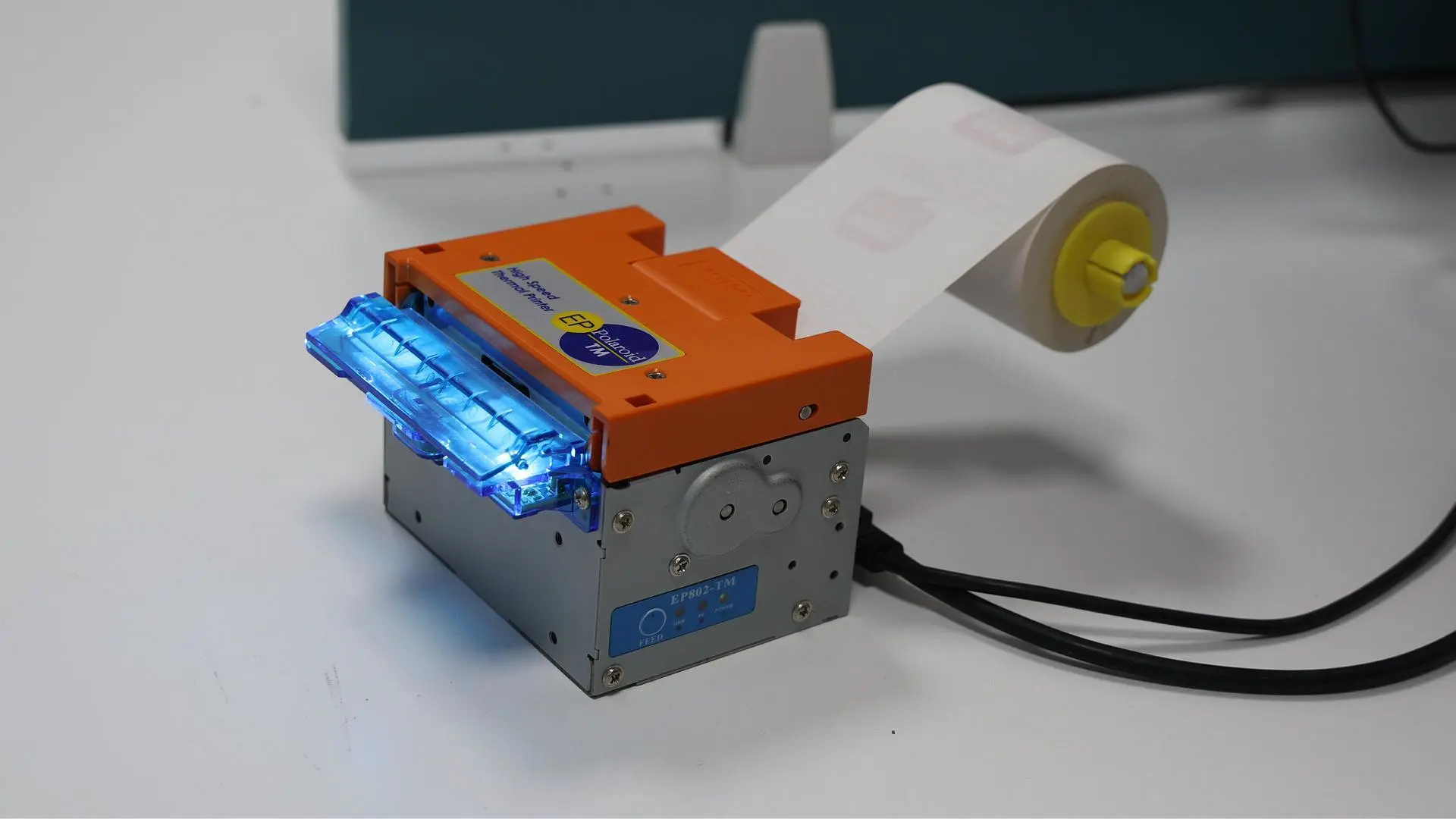

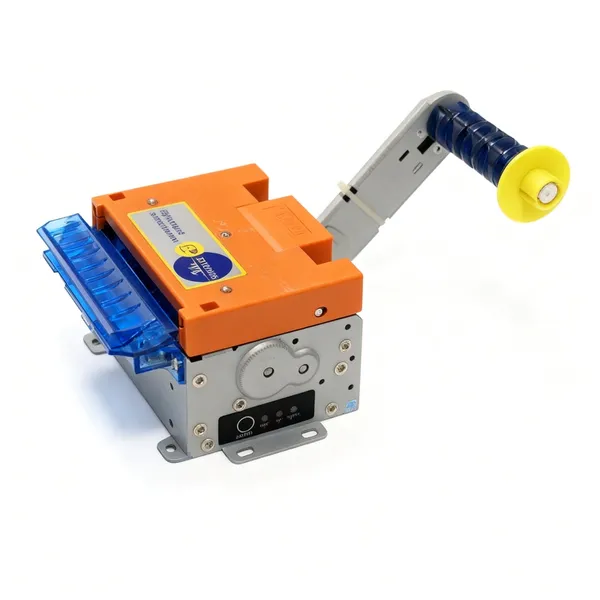

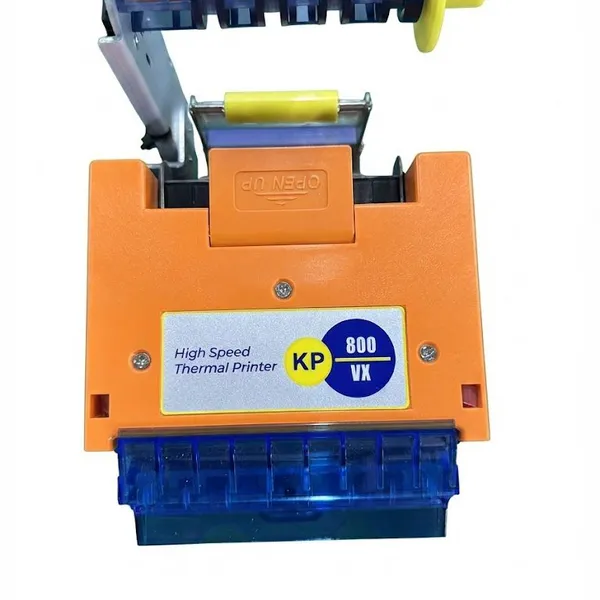

KP-800-VX is a professional 80mm kiosk thermal printer module designed for unattended self-service terminals and embedded kiosk applications.
With a compact shelf-mount and door-mount design, the printer can be easily integrated into different kiosk structures. Its rear paper feeding system with automatic loading and cutting provides convenient maintenance and reliable ticket/receipt output.
Supporting 80mm and 82.5mm thermal paper, KP-800-VX delivers high-speed printing up to 250mm/s, making it suitable for high-frequency receipt and ticket printing applications.
The printer supports Windows, Android, Linux and Raspberry Pi systems with SDK/Driver support, helping kiosk manufacturers and system integrators complete fast and flexible integration.
Key Features
High Speed 80mm Thermal Printing
Maximum printing speed up to 250mm/s
Maximum printing width up to 80mm
Suitable for receipt and ticket printing applications
Compact Embedded Kiosk Design
Small shelf-mount and door-mount structure
Designed for unattended self-service terminals
Easy installation and maintenance
Large Paper Roll Support
Supports 80mm / 82.5mm thermal paper
Compatible with large paper rolls up to 150mm diameter
Reduces paper replacement frequency
Automatic Paper Handling
Easy paper roll replacement
Automatic paper loading
Automatic cutting function
Clean paper path design for reliable operation
Flexible Integration
Supported interfaces:
RS232
USB
Compatible systems:
Windows
Android
Linux
Raspberry Pi
SDK and drivers available for system integration.
Reliable Industrial Performance
Print head life over 50KM
Cutter life up to 1,000,000 cuts
Multiple sensors for stable operation
Applications
Self Service Kiosk
Information kiosks
Digital service terminals
Interactive kiosks
Parking System
Parking ticket machines
Parking payment terminals
Parking management systems
Ticketing System
Ticket vending machines
Transportation terminals
Event ticket systems
Vending Machine
Smart vending machines
Retail automation equipment
Queue Management
Queue ticket printers
Waiting line management systems
Retail & Payment
Supermarket cashier systems
Self-checkout kiosks
Intelligent cashier scale
Technical Specifications
| Item | Specification |
|---|---|
| Model | KP-800-VX |
| Printing Method | Thermal Dot Line Printing |
| Printing Speed | 250mm/s Max |
| Print Width | 80mm Max |
| Paper Width | 80 / 82.5mm |
| Paper Thickness | 0.06~0.2mm |
| Paper Loading | Easy Loading (Horizontal 180°) |
| Cutting Method | Full Cut / Partial Cut |
| Print Head Life | Over 50KM |
| Cutter Life | 1,000,000 cuts (60μm paper) |
| Interface | RS232 / USB |
| Power Supply | DC24V ±10% |
| Continuous Current | 1.5A |
| Standby Current | 61mA |
| Peak Current | 3.2A |
| Dimension | 156 × 145.3 × 73.1mm |
| Weight | Approx. 1.3kg |
Detection Functions
Built-in detection system:
Thermal head temperature detection
Mechanism open detection
Paper near-end detection
Paper presence detection
Black mark detection
Paper cutting detection
Software Support
KP-800-VX supports:
ESC/POS compatible commands
Windows integration
Android integration
Linux integration
Raspberry Pi integration
SDK and drivers are available for developers and system integrators.
Why Choose KP-800-VX?
Designed for Kiosk Manufacturers
KP-800-VX is optimized for OEM kiosk builders and self-service solution providers requiring reliable embedded printing hardware.
Reliable for Unattended Operation
The automatic paper loading, cutting system and multiple detection functions help improve terminal stability and reduce maintenance.
Flexible Integration
USB, RS232 and multi-platform SDK support make integration easier for different kiosk controllers.
Cost-effective Printing Solution
KP-800-VX provides industrial-grade performance with competitive pricing for large-scale kiosk projects.
Customization Options
Available customization:
Interface customization
Cable customization
Connector customization
Housing customization
Logo customization
OEM / ODM support
FAQ
Q1: What paper size does KP-800-VX support?
KP-800-VX supports 80mm and 82.5mm thermal paper.
Q2: What is the maximum printing speed?
The maximum printing speed is 250mm/s.
Q3: Is KP-800-VX suitable for parking systems?
Yes. It is designed for parking machines, ticket terminals and unattended self-service equipment.
Q4: Which operating systems are supported?
Windows, Android, Linux and Raspberry Pi systems are supported.
Q5: Does it support automatic cutting?
Yes. KP-800-VX supports full cut and partial cut functions.
