UL‑Certified Shielded Multi‑Core Signal Cable, UL2464(SP) American Standard Twisted‑Pair Shielded Data Transmission Cable
Product Spotlights
UL‑listed UL2464(SP) shielded multi‑core signal cable for North America. Twisted‑pair tinned copper braid shield blocks EMI/RFI for stable data transmission. Stranded tinned copper conductor, VW‑1 flame‑retardant PVC, rated 300V, 80°C. Ideal for automation, sensor and instrument wiring. RoHS compliant, various AWG & core counts available.
Negotiable
MOQ: 1000 Meters (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Other, Shielded multi‑core signal cable
Certification:
Other, UL
Application:
Other, Indoor equipment wiring, analog & digital data signal transmission
Payment & Shipping
Payment Methods:
Port of Shipment:
ShangHai
Delivery Detail:
20 days
Related Products
-
CE Certified Heavy‑Duty Rubber Flexible Cable H07RN‑F, European Standard Outdoor Mobile Power CableNegotiableMOQ: 1000 Meters -
LIYCY CE Certified Shielded Flexible Control Cable, European Standard Certified Equipment Signal Transmission CableNegotiableMOQ: 1000 Meters
-
UL Certified Fire Resistant Fire Alarm Cable, FPLR Riser-Rated Fire Alarm Signal CableNegotiableMOQ: 500 Meters
-
UL3135 Silicone High Temperature Electronic Wire, US Standard Certified High-Temperature Equipment Connection CableNegotiableMOQ: 500 Meters
-
CE Certified N2XH Low Smoke Zero Halogen Power Cable, EU Standard Building Engineering Power CableNegotiableMOQ: 500 Meters
Type
Other, Shielded multi‑core signal cable
Certification
Other, UL
Application
Other, Indoor equipment wiring, analog & digital data signal transmission
Insulation Material
PVC
Conductor Material
Other, Tinned copper
Conductor Type
Stranded
Brand
Other, aein-cable
Sheath Material
PVC
Material Shape
Round Wire
Range of Application
Other, Industrial automation, sensor & instrument signal transmission
Transport Package
Plastic reel / Wooden reel
Specification
AWG18‑26, multiple core counts available
Trademark
UL2464(SP)
Origin
China

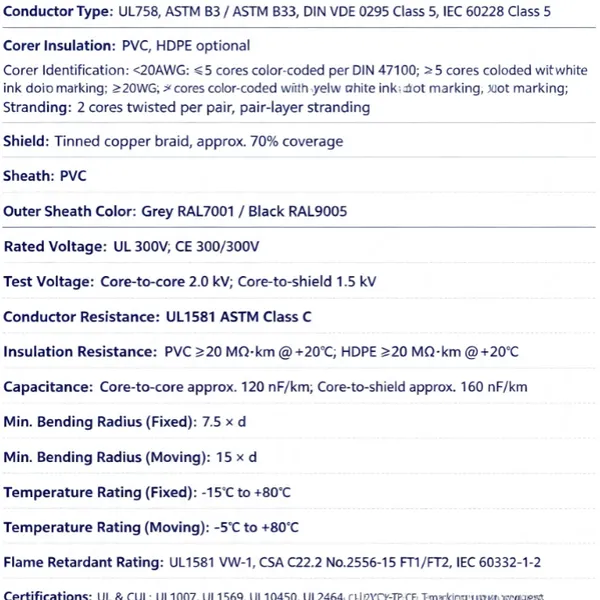

| Item | Specification |
|---|---|
| Conductor Material | Bare copper or tinned copper |
| Conductor Type | Compliant with UL758, ASTM B3 / ASTM B33; DIN VDE 0295 Class5 / IEC 60228 Class5 |
| Core Insulation | PVC, HDPE optional |
| Core Identification | ＜20AWG：≤5 cores color‑coded per DIN47100；＞5 cores black cores with white number printing≥20AWG：≤5 cores color‑coded with YE‑GN earth wire per DIN47100；＞5 cores black cores with white number printingCustom marking for special requirements |
| Stranding | Two cores twisted as one pair; pair‑layer stranding |
| Shield | Tinned copper braid, approx.70% coverage |
| Outer Sheath | PVC |
| Outer Sheath Color | Grey RAL7001, Black RAL9005 |
| Rated Voltage | UL:300V; CE:300/300V |
| Test Voltage | Core‑to‑core:2.0kV; Core‑to‑shield:1.5kV |
| Conductor Resistance | UL1581 ASTM Category C |
| Insulation Resistance | PVC:≥20 MΩ·km @+20℃；HDPE:≥20 MΩ·km @+20℃ |
| Capacitance | Core‑core ~120 nF/km; Core‑shield ~160 nF/km |
| Bending Radius (Fixed) | 7.5 × d |
| Bending Radius (Moving) | 15 × d |
| Temperature Rating (Fixed) | -15 °C ~ +80 °C |
| Temperature Rating (Moving) | -5 °C ~ +80 °C |
| Flame Retardant | VW‑1(UL1581), CSA FT1/FT2, IEC60332‑1‑2 |
| Certifications | UL & CUL: UL1007,UL1569,UL10450,UL2464CE:LiYCY‑TP,Li2YCY‑TP，CE mark on separate request |
| Product Marking | Aein beike E503807 AWM, Type, Size, Temperature, Voltage, c‑AWM, AWM I/II A/B, Size, Temperature, Voltage, FT2, SHANGHAI AEIN, meter marking |
UL & CUL listed UL2464 twisted‑pair shielded multi‑core signal cable. Class 5 bare / tinned copper conductor, PVC or HDPE insulation, 70% coverage tinned copper braid shield for anti‑EMI performance. Rated 300V, VW‑1, CSA FT1/FT2 flame retardant. Suitable for indoor automation, sensor and instrument data‑signal wiring. Custom marking & CE option available, RoHS compliant.
