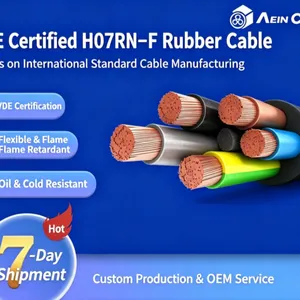

CE Certified Heavy‑Duty Rubber Flexible Cable H07RN‑F, European Standard Outdoor Mobile Power Cable
Product Spotlights
H07RN‑F CE & HAR certified heavy‑duty rubber flexible cable features EPR insulation and neoprene rubber sheath with great oil, abrasion and UV resistance for harsh outdoor conditions. Highly flexible against frequent bending, it uses tinned stranded copper conductor for stable power transmission at 450/750V. Impact‑resistant for power tools, construction machinery and outdoor mobile equipment. Full certification documents are available for EU tender and customs clearance.
Negotiable
MOQ: 1000 Meters (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Other, Flexible rubber power cable
Certification:
CE, ROHS, VDE
Application:
Other, Outdoor mobile equipment, power tools, construction machinery
Payment & Shipping
Payment Methods:
Port of Shipment:
ShangHai
Delivery Detail:
20 days
Related Products
-
LIYCY CE Certified Shielded Flexible Control Cable, European Standard Certified Equipment Signal Transmission CableNegotiableMOQ: 1000 Meters -
UL Certified Fire Resistant Fire Alarm Cable, FPLR Riser-Rated Fire Alarm Signal CableNegotiableMOQ: 500 Meters
-
UL3135 Silicone High Temperature Electronic Wire, US Standard Certified High-Temperature Equipment Connection CableNegotiableMOQ: 500 Meters
-
CE Certified N2XH Low Smoke Zero Halogen Power Cable, EU Standard Building Engineering Power CableNegotiableMOQ: 500 Meters
-
CE Certified Flexible Cable H05VV-F, European Standard Power Supply CableNegotiableMOQ: 500 Meters
Type
Other, Flexible rubber power cable
Certification
CE, ROHS, VDE
Application
Other, Outdoor mobile equipment, power tools, construction machinery
Insulation Material
Other, EPR rubber
Conductor Material
Copper
Conductor Type
Other, Class 5 stranded conductor
Sheath Material
Other, Neoprene rubber
Material Shape
Other, Stranded
Range of Application
Other, Industrial / Outdoor / Construction Machinery
Transport Package
Wooden drum / Plastic reel
Specification
450/750V，multi‑core 1.5‑95mm²
Trademark
H07RN‑F
Origin
Shanghai, China
Conductor material: Bare copper stranded wire
Conductor class: Class 5 acc. to DIN VDE 0295, refer to IEC 60228 Class 5
Insulation: EI4 cross‑linked elastomer compound
Core identification: According to VDE 0293‑308, ≥5 coloured cores; 6 cores & above: black cores printed with white numbers, with or without GNYE Lay‑up: Layer stranding
Outer sheath: EM2 cross‑linked elastomer compound
Sheath colour: Black
Rated voltage: Uo/U: 450/750 V
Test voltage: 2.5 kV
Minimum fixed bending radius: Complies with DIN VDE 0298 Part 3
Minimum moving bending radius: Complies with DIN VDE 0298 Part 3
Temperature rating(fixed): -40 ℃ / +90 ℃
Flame retardant standard: Complies with IEC 60332‑1
Standard: VDE 0285‑525‑2‑21/DIN EN 50525‑2‑21
Product marking: Aein bei ke SHANGHAI AEIN WIRE & CABLE CO.,LTD, Type, Cross‑section, Voltage, VDE
