PSE Certified VCTF Japanese Standard Flexible Sheathed Cable, Instrument Internal Connection Wire
Product Spotlights
PSE‑certified VCTF cable to JIS C3306. Class5 flexible bare copper conductor, PVC insulation & sheath, rated 300V. For instrument, appliance and automation internal wiring, RoHS compliant, various specifications available.
Negotiable
MOQ: 1000 Meters (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Other, VCTF Japanese standard flexible control cable 300V
Certification:
Other, PSE
Application:
Other, Appliance wiring, machine internal connection, automation equipment control wiring
Payment & Shipping
Payment Methods:
Port of Shipment:
ShangHai
Delivery Detail:
20 days
Related Products
-
UL‑Certified Shielded Multi‑Core Signal Cable, UL2464(SP) American Standard Twisted‑Pair Shielded Data Transmission CableNegotiableMOQ: 1000 Meters -
CE Certified Heavy‑Duty Rubber Flexible Cable H07RN‑F, European Standard Outdoor Mobile Power CableNegotiableMOQ: 1000 Meters
-
LIYCY CE Certified Shielded Flexible Control Cable, European Standard Certified Equipment Signal Transmission CableNegotiableMOQ: 1000 Meters
-
UL Certified Fire Resistant Fire Alarm Cable, FPLR Riser-Rated Fire Alarm Signal CableNegotiableMOQ: 500 Meters
-
UL3135 Silicone High Temperature Electronic Wire, US Standard Certified High-Temperature Equipment Connection CableNegotiableMOQ: 500 Meters
Type
Other, VCTF Japanese standard flexible control cable 300V
Certification
Other, PSE
Application
Other, Appliance wiring, machine internal connection, automation equipment control wiring
Insulation Material
PVC
Conductor Type
Stranded
Brand
Other, aein-cable
Sheath Material
PVC
Material Shape
Round Wire
Range of Application
Other, Indoor equipment wiring, machinery, household appliances, automation equipment
Transport Package
Wooden reel / Plastic reel
Specification
0.3mm²‑2.0mm²，2‑40 cores
Trademark
VCTF
Origin
China

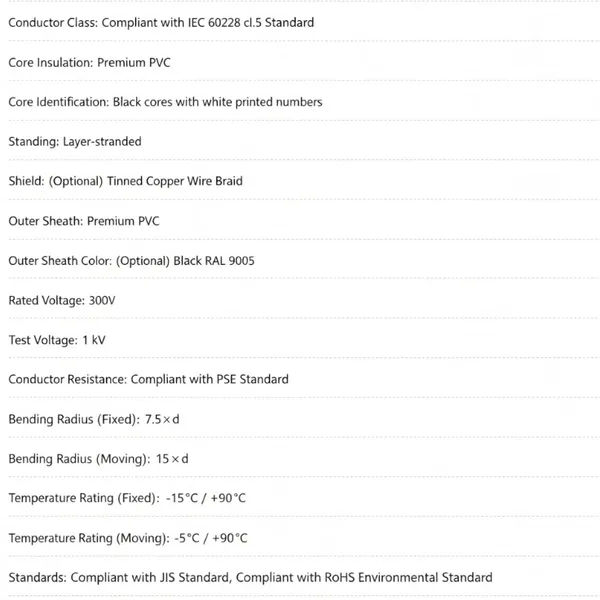

| Item | Specification |
|---|---|
| Conductor Material | Bare copper wire |
| Conductor Class | Compliant with IEC 60228 class 5 |
| Core Insulation | Premium‑grade PVC |
| Core Identification | Black core with white printed numbers |
| Stranding | Layer‑stranded |
| Shield | (Optional) Tinned copper wire braid |
| Outer Sheath | Premium‑grade PVC |
| Outer Sheath Color | (Optional) Black RAL 9005 |
| Rated Voltage | 300 V |
| Test Voltage | 1 kV |
| Conductor Resistance | Compliant with PSE standard |
| Bending Radius (Fixed installation) | 7.5 × d |
| Bending Radius (Moving application) | 15 × d |
| Temperature Rating (Fixed installation) | -15 °C / +90 °C |
| Temperature Rating (Moving application) | -5 °C / +90 °C |
| Standards | Compliant with JIS standard, RoHS environmental compliance |
| Product Marking | Aein beike, SHANGHAI AEIN WIRE & CABLE CO., LTD, Type, Size, Rated Voltage |
VCTF cable is a PSE‑certified flexible multi‑core cable complying with JIS C3306 standard for Japanese market. It adopts Class 5 stranded bare copper conductor with layer‑stranded structure, delivering outstanding flexibility for frequent bending scenarios. Premium‑grade PVC is applied for core insulation and outer sheath, offering good mechanical performance.
Available with optional tinned copper braided shield upon request. Rated voltage 300V, test voltage 1kV. For fixed installation, bending radius is 7.5×d and operating temperature ranges from ‑15°C to +90°C; for moving application, bending radius is 15×d with temperature range of ‑5°C to +90°C.
This cable is suitable for power supply, control and signal connection of industrial automation equipment, instruments and household appliances, deployed in dry, damp and wet indoor conditions. RoHS compliant, each cable is printed with standard marking including manufacturer, type, size and rated voltage.
