CE Certified Flexible Cable H05VV-F, European Standard Power Supply Cable
Product Spotlights
H05VV-F is a widely used 300/500V flexible PVC cable. Stranded copper conductors, PVC core insulation and PVC outer sheath. CE approved, mainly applied for indoor power connection of household appliances, lighting and office equipment.
Negotiable
MOQ: 500 Meters (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Insulated
Certification:
CE
Application:
Other, Automation equipment
Payment & Shipping
Payment Methods:
Port of Shipment:
ShangHai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
SAA Certified LSZH Flat Cable TPSHF, Australian Standard Wiring Cable for Caravan & ContainerNegotiableMOQ: 1000 Meters -
PSE Certified VCTF Japanese Standard Flexible Sheathed Cable, Instrument Internal Connection WireNegotiableMOQ: 1000 Meters
-
UL‑Certified Shielded Multi‑Core Signal Cable, UL2464(SP) American Standard Twisted‑Pair Shielded Data Transmission CableNegotiableMOQ: 1000 Meters
-
CE Certified Heavy‑Duty Rubber Flexible Cable H07RN‑F, European Standard Outdoor Mobile Power CableNegotiableMOQ: 1000 Meters
-
LIYCY CE Certified Shielded Flexible Control Cable, European Standard Certified Equipment Signal Transmission CableNegotiableMOQ: 1000 Meters
Type
Insulated
Certification
CE
Application
Other, Automation equipment
Insulation Material
PVC
Conductor Material
Copper
Conductor Type
Stranded
Brand
Other, aein-cable
Sheath Material
PVC
Material Shape
Round Wire
Range of Application
Other, automation equipment and small machinery
Transport Package
Wooden reel / Plastic reel
Specification
According to your requirements
Trademark
aein-cable
Origin
China

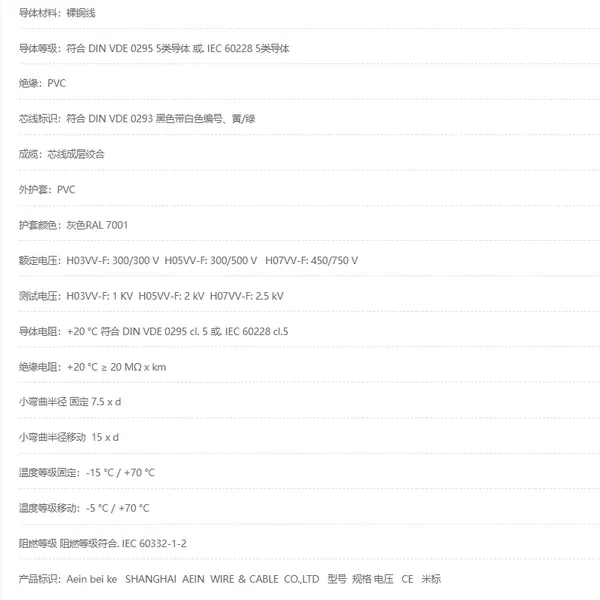

Conductor Material: Bare copper wire
Conductor Class: Class 5 to DIN VDE 0295 & IEC 60228
Insulation: PVC
Core Identification: In accordance with DIN VDE 0293, black cores with white numbering, yellow/green earth core
Laying-up: Cores layered stranded
Outer Sheath: PVC
Sheath Colour: Grey RAL7001
Rated Voltage:H03VV-F: 300/300VH05VV-F: 300/500VH07VV-F: 450/750 V
Test Voltage:H03VV-F:1 kVH05VV-F:2 kVH07VV-F: 2.5 kV
Conductor Resistance: Comply with DIN VDE 0295 cl.5 / IEC 60228 cl.5 at +20℃
Insulation Resistance: ≥20 MΩ・km at +20℃
Minimum Bending Radius (fixed installation): 7.5 × D
Temperature RangeFixed installation: -15℃ ~ +70°CFlexible operation: -5℃ ~ +70°C
Flame Retardant Class: Compliant with IEC 60332-1-2
Cable Marking: Aein bei ke SHANGHAI AEIN WIRE & CABLE CO,LTD, Model, Cross-section, Rated Voltage, CE, continuous meter marking
