Model: CHS60, CHS80, CHS120, CHS200, CHS300, CHS380, CHS400, CHS500, CHS700
(Most models are available and can be pre - ordered. Welcome to inquire.)
Country of origin: Japan

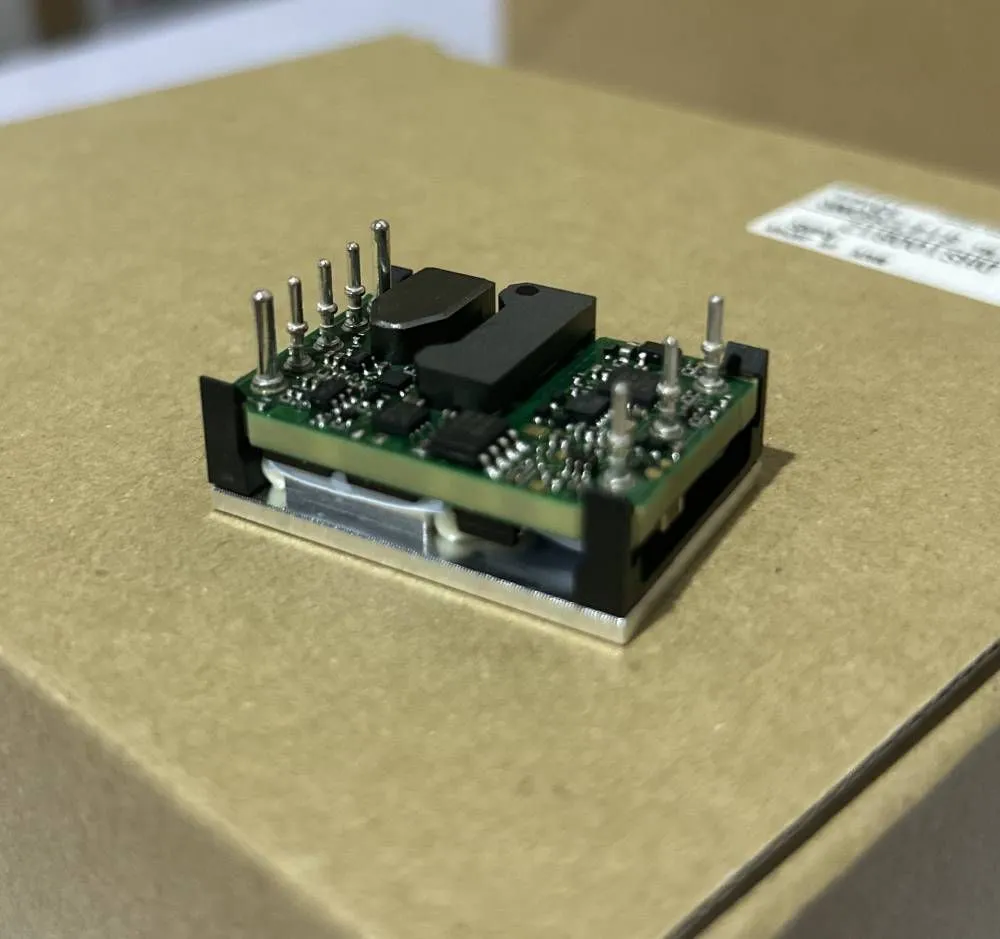

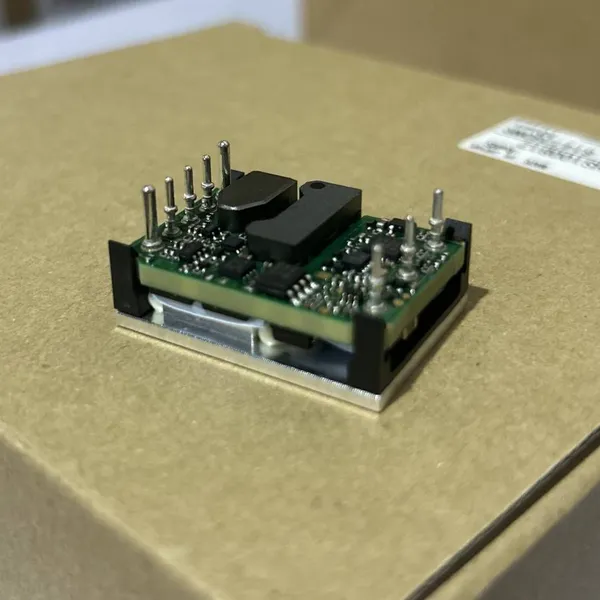

(The picture shows CHS60)

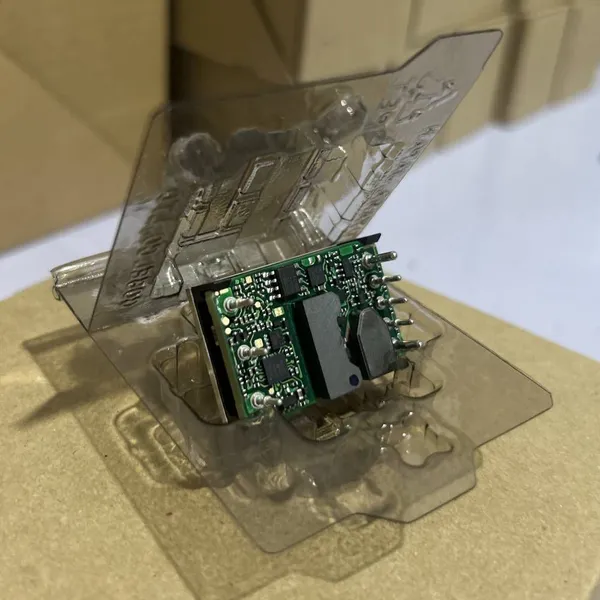

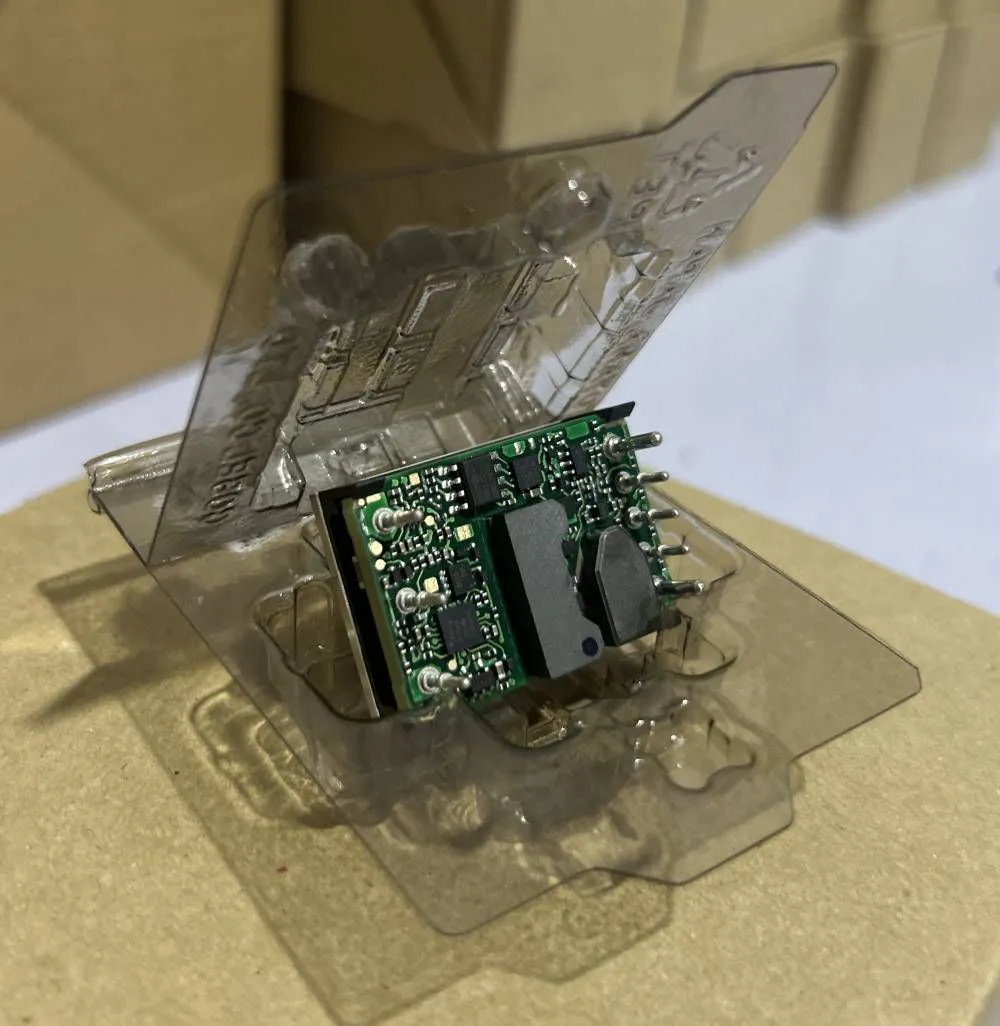

(The picture shows CHS200)
(The picture shows the CHS series)

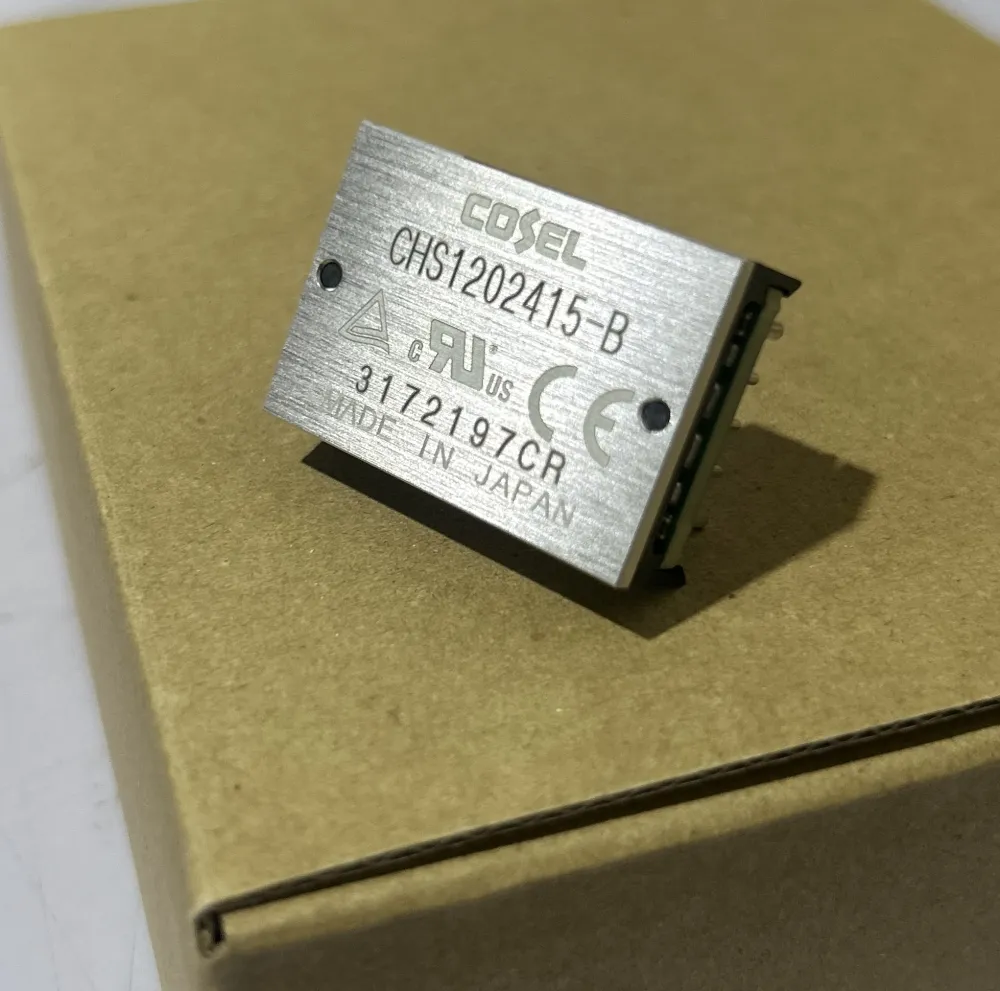

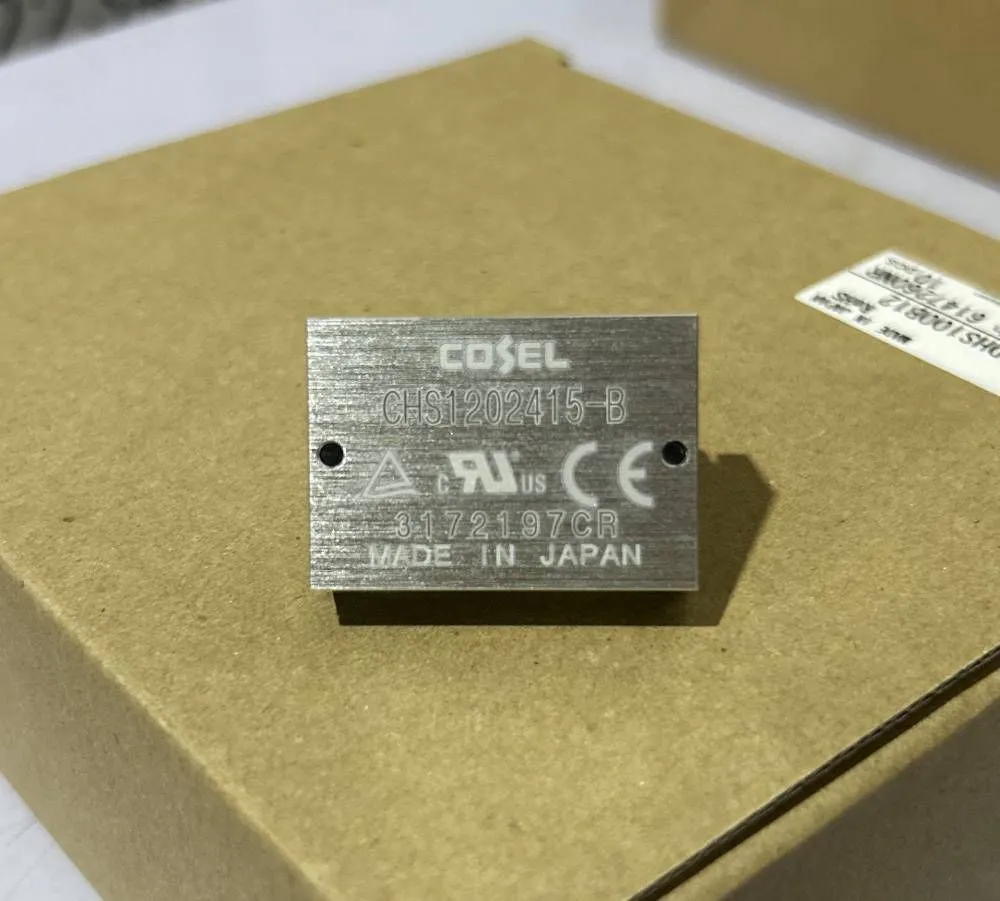

(The picture shows CHS1202415 - B)
| Item | Specification |
| Brand / Series | Japan COSEL / CHS Series (CHS60 / CHS120 / CHS200 / CHS300 / CHS400 / CHS500 / CHS700) |
| Product Type | Isolated DC-DC Brick Power Module (Communication Standard Brick Size: 1/16, 1/8, 1/4 Brick) |
| Application Areas |
Communication Equipment (Base Stations/Switches), Servers/Data Centers, Factory Automation Systems |
| Input Voltage | DC 18 - 36V (24V System Models) or DC 36 - 76V (48V System Models, Typical CHS7004812H) |
| Output Power | 60W - 700W (Depending on the Model, CHS700 Series 702W @12V 58.5A) |
| Output Voltage |
Single Output, Optional 3.3V / 5V / 12V / 15V / 24V / 28V / 32V / 48V |
| Efficiency | 96% (Typical Value of CHS7004812H), 91% - 95% for Other Models |
| Design Features |
High Density, Compact Brick Package (Low Profile) No Built-in Aluminum Electrolytic Capacitors and Tantalum Electrolytic Capacitors (Long-Life and High-Reliability Design) |
| Control function |
Built-in Remote ON/OFF (Remote control on/off) (Negative logic: L=ON, H=OFF) Remote Sensing, External resistance fine-tuning of output voltage |
| Protection function |
Overcurrent protection (OCP) > 105% rated, automatic recovery Overvoltage protection (OVP) 115%～135%, automatic recovery Overheat protection (OTP) built-in, automatic recovery |
| Isolation withstand voltage |
Input - Output: DC 2250V or AC 1000V (1 minute) Input - Baseplate: DC 2250V; Output - Baseplate: AC 500V |
| Safety certification |
-40～+85℃ (According to the derating curve), Humidity 20～95% RH (No condensation) |
| Working environment | Open PCB board type / Chassis installation with enclosure, Compact and small design (Starting from about 140×65×23 mm) |
| Cooling method | Natural convection / Forced air cooling / Conduction heat dissipation (With baseplate option) |
| 5-year warranty | Original factory warranty |
| Typical models |
CHS604805 (60W/5V), CHS3004812 (300W/12V), CHS7004812H (700W/12V, 96% efficiency) |
