Model: DPG500, DPG750
(Most models are in stock. Welcome to inquire.)
Country of origin: Japan

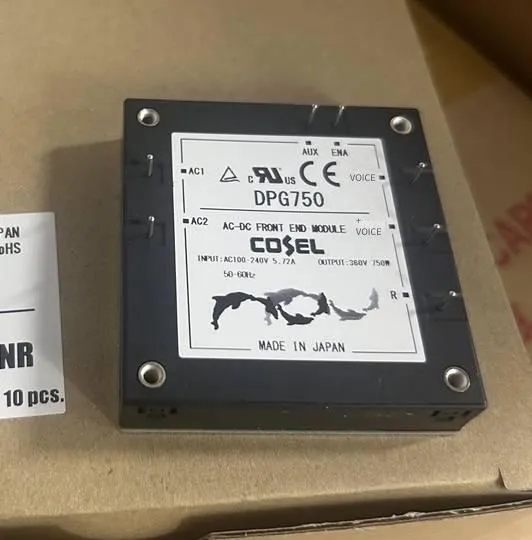

(The picture shows DPG500)

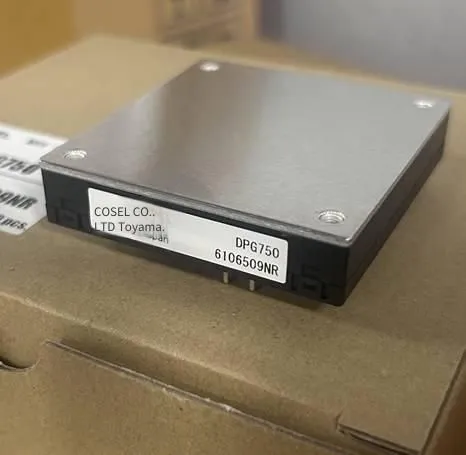

(The picture shows DPG750)
(The picture shows DPG series)

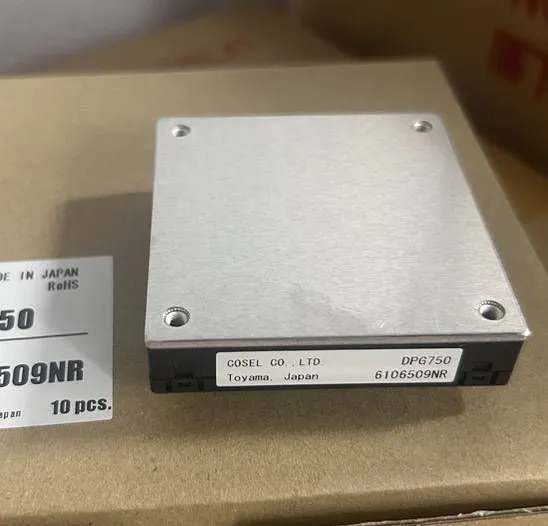

(The picture shows DPG750)
Features:
| Parameter category | Detailed specifications |
| Brand / Series | Japan COSEL / DPG Series — DPG500 / DPG750 |
| Product Type | Single-output AC-DC High-voltage Output Power Module (PFC Boost Module), PCB Through-hole Mounting (Half Brick Package) |
| Application Fields | High-voltage Bus Power Supply for Inverter Front Stage, X-ray Tube Bias, Laser Excitation, Plasma Equipment, Distributed High-voltage DC Bus |
| Input Voltage | AC 85～264V Single-phase (47～63Hz), Wide Voltage Universal AC 170～264V (Full-power Rated Input) |
| Output Power |
DPG500: 300W (AC85～132V Input) / 500W (AC170～264V Input) DPG750: 500W (AC85～132V Input) / 750W (AC170～264V Input) DC 360V (Fixed), Accuracy ±2%, PFC Boost Voltage Regulation |
| Output Voltage | AC 100V / 110V / 115V / 200V / 220V / 230V (Single Output, 50Hz or 60Hz Selectable/Switchable) |
| Output Current | DPG500: ≈1.4A (500W@200V Input) ｜ DPG750: ≈2.1A (750W@200V Input) |
| Efficiency | Typical 93% (AC100V Input) / 96% (AC200V Input) |
| Design Features | ● Built-in Active PFC (Power Factor Correction), Compliant with IEC61000-3-2 Class A ● Enable Signal (ENA Pin) — External TTL/OC Control Switch ● Auxiliary Power Supply (AUX): 12V or 5V (Depending on Suffix), for External Control Circuit ● Built-in Inrush Current Limiter Circuit ● No Built-in Aluminum/Tantalum Electrolytic Capacitors (Long-life Design) |
| Protection Function | ● Overcurrent Protection (OCP) with Auto Recovery (Hiccup Mode) ● Overvoltage Protection (OVP) at DC 400 - 450V, Shutdown PFC Function ● Overheat Protection (OTP) Built - in with Auto Recovery ● Input Under - voltage/Brown - out Detection |
| Insulation Withstand Voltage | Input - Output / Input - FG / Output - FG: Tested According to UL60950 - 1 Requirements Insulation Resistance: DC 500V, ≥50MΩ |
| Safety Certification | UL60950 - 1 / C - UL, EN62368 - 1 (Transitional Application), Compliant with Japanese Electrical Safety Law, CE, RoHS |
| EMI / EMS | Conducted Emission: EN55022 Class B (FCC Class B) Harmonic Current: Compliant with IEC61000 - 3 - 2 Class A (Built - in PFC) |
| Operating Environment |
-40 to +100℃ (Measured on the Substrate, Heat Dissipation by Heat Sink, Used According to the Derating Curve) Humidity 20 - 95% RH (No Condensation) Cooling Method Conduction Cooling (Conduction Cooling) — Must be Installed on an Aluminum Substrate or a Base Plate with a Heat Sink |
| Dimensions (Typical) | 58.4(W) × 12.7(H) × 61.0(D) mm (Half Brick Package, Approximately 100g) |
| Warranty | 5 - year Original Factory Warranty |
| Typical Models | DPG500 (500W/360V Output), DPG750 (750W/360V Output) |
