Japanese Cosel Wda Series Din Rail-mounted Industrial Switching Power Supplies Wda30f/60f/90f/120f
Key Specifications
Get Latest Price
Main Markets:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, Domestic Market
Location:
Shenzhen, Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
![Original Imported Genuine Switching Power Supplies of Pda Series, Ac-dc Power Supplies [enclosed Switching Power Supplies] From Cosel, Japan](https://res.goldsupplier.com/img/env2/common/load/circle-loading.svg)
Original Imported Genuine Switching Power Supplies of Pda Series, Ac-dc Power Supplies [enclosed Switching Power Supplies] From Cosel, JapanNegotiableMOQ: 0 Piece -
Japanese Cosel Zus Series On-board Dc-dc Non-isolated Voltage-stabilized Module Power Supply Zus62412NegotiableMOQ: 0 Piece
-
Japanese Cosel Wma Series Kosuo Ac-dc Open-frame Industrial Switching Power Supply Wma100f-12-cNegotiableMOQ: 0 Piece
-
Japanese Cosel Dpg500/dpg750 Series Ac-dc High Voltage Output Power Supply Modules With Pcb Through-hole MountingNegotiableMOQ: 0 Piece
-
Japanese Cosel Industrial Switching Power Supply, Khea/khna Series Full-function Rail Power Supply Khea480fNegotiableMOQ: 0 Piece
Model:
Japan COSEL / WDA Series (WDA30F / WDA60F / WDA90F / WDA120F)
(Most models are in stock. Welcome to consult.)
Country of origin: Japan

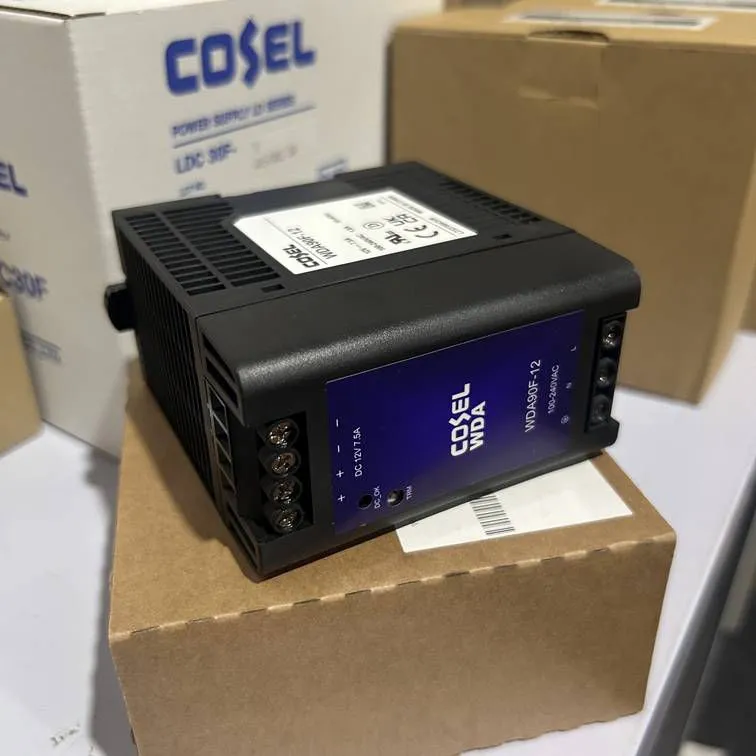

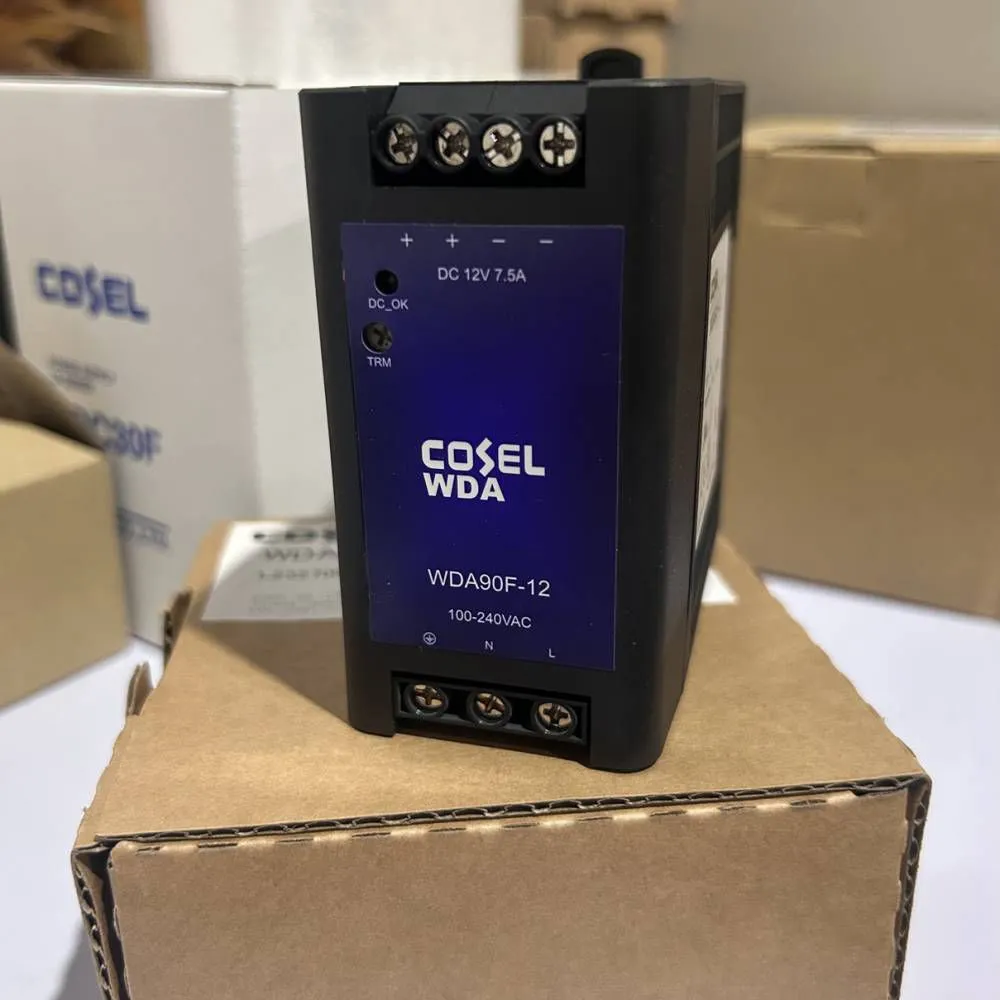

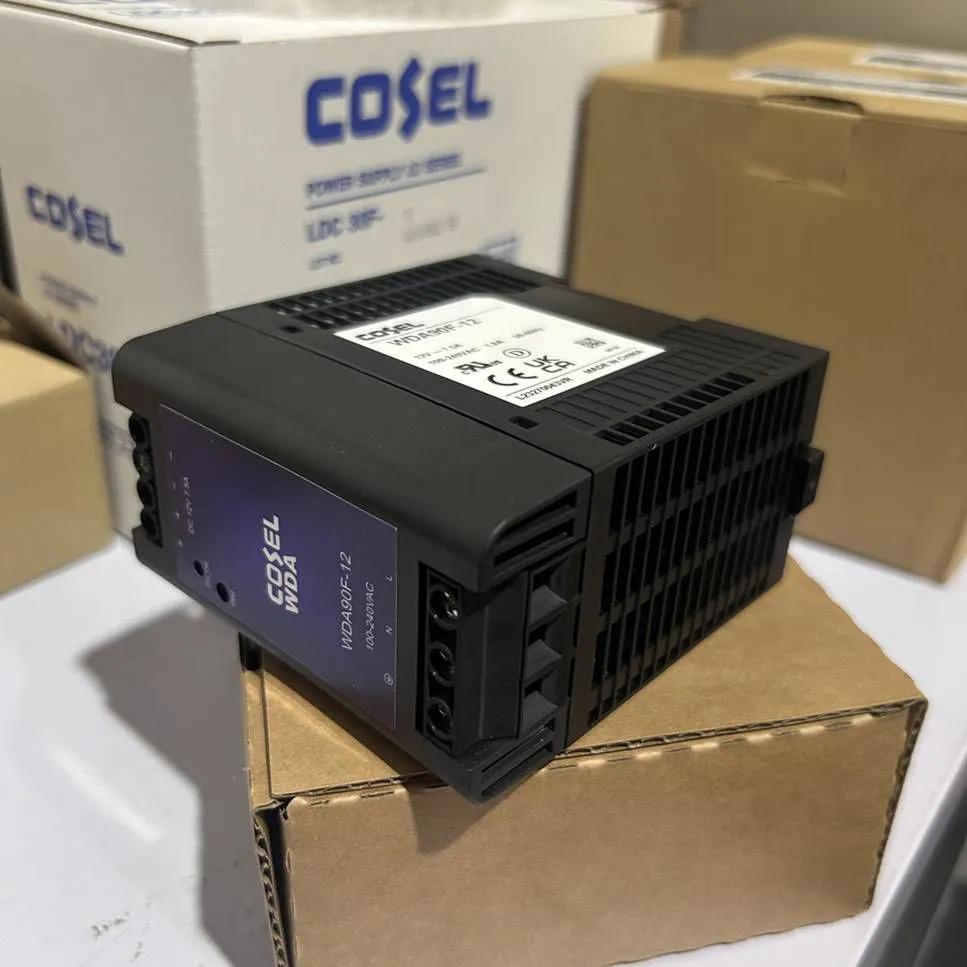

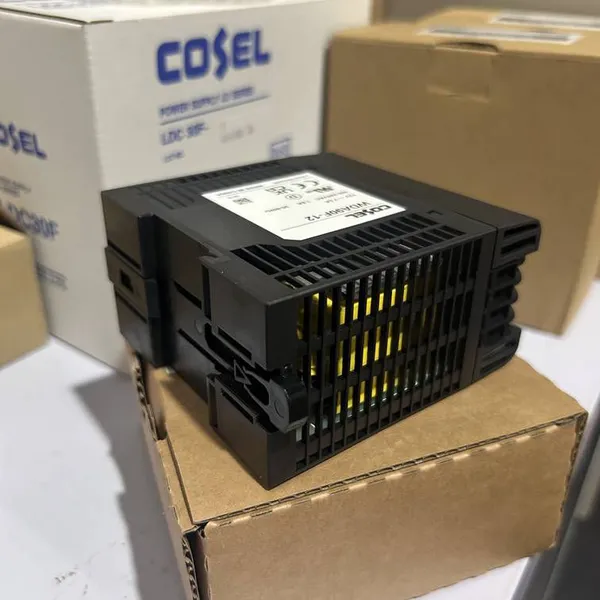

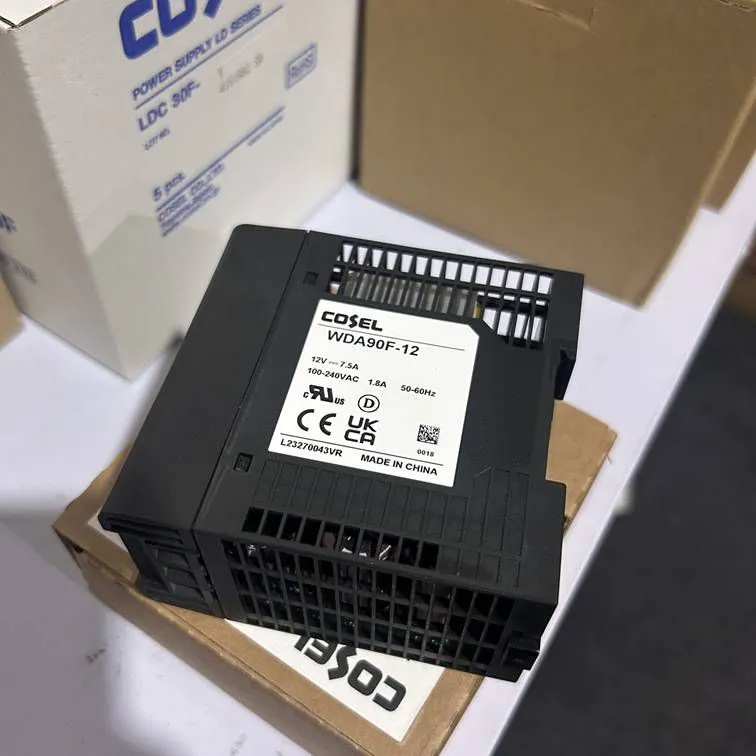

(The picture shows WDA90F-12)
Features:
| Parameter category | Parameter category |
| Brand / Series | Japan COSEL / WDA Series (WDA30F / WDA60F / WDA90F / WDA120F) |
| Product type | Single-output AC-DC DIN rail-mounted (TS-35-7.5/15mm) industrial switching power supply with a plastic protective shell |
| Application fields | Factory automation (FA) control cabinets, PLC/DCS power supply, conveyor systems, building automation, small mechanical equipment |
| Input voltage | AC 85～264V single-phase (50/60Hz, 47～63Hz, compatible with a wide frequency range of 47～440Hz) |
| Output power | 30W (WDA30F) / 60W (WDA60F) / 90W (WDA90F) / 120W (WDA120F) |
| Output Voltage | DC 5V / 12V / 24V (Single Channel), Panel VR Fine-tuning ±10% (WDA60F↑) |
|
Output Current (Typical @24V) |
WDA30F: 24V@1.3A WDA60F: 24V@2.5A WDA90F: 24V@3.8A WDA120F: 24V@5A |
| Efficiency | Typical 84%～89% (Without PFC, Low-power Models) |
| Design Features |
● Quick Installation on DIN 35mm Rail (TS-35), Ultra-narrow Design (WDA30F/60F Width Only 36mm; WDA120F Width 45mm) ● Built-in EMI Filter Class B, No External Filter Required ● DC OK / Power LED Indicator (WDA60F↑) ● Low Ripple Noise, Suitable for Precision Control ● Removable Spring Terminal Block (or Screw Terminal, Depending on Suffix) |
| Protection Functions | ● Overcurrent Protection (OCP) 105%～150% Rated, Automatic Recovery (Hiccup) ● Overvoltage Protection (OVP) Automatic Recovery ● Short-circuit Protection (SCP) Automatic Recovery ● Overload Mode: Constant Current Limiting or Hiccup Recovery (Depending on Model) |
| Insulation Withstand Voltage |
Input - Output: AC 3000V (1 Minute) Input - FG: AC 2000V Output - FG: AC 500V Insulation Resistance: DC 500V, ≥100MΩ |
| Safety Certifications | UL508 / UL62368-1, c-UL (CSA C22.2 No. 60950-1), EN62368-1, EN50178, CE, RoHS, UKCA, KC |
| EMI / EMS | Conducted: EN55011 / EN55022 Class B (FCC Class B) Immunity: EN61000-6-2 (ESD ±8kV/±15kV, EFT ±2kV, Surge ±2kV) |
| Working environment |
-10～+60℃ (For high temperatures, follow the derating curve. It is recommended to operate at ≤50℃ under full load), humidity 20～95% RH (no condensation) Cooling method: Natural convection (no fan, silent design) |
|
External dimensions (Approximately W×H×D) |
WDA30F: 36×90×62 mm｜WDA60F: 36×90×75 mm WDA90F: 45×90×100 mm｜WDA120F: 45×90×115 mm |
| Warranty | 5-year original manufacturer's warranty |
| Typical models |
WDA30F-24 (30W/24V), WDA60F-24 (60W/24V) WDA90F-24 (90W/24V), WDA120F-24 (120W/24V) |
