Pcb-mounted Japanese Cosel Sfcs Series Dc-dc Power Module, Model Sfcs152405c
Key Specifications
Get Latest Price
Main Markets:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, Domestic Market
Location:
Shenzhen, Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Japan Cosel Sus Series On-board Dc-dc Non-isolated Regulated Power Supply Module Sus62412NegotiableMOQ: 0 Piece -
Original Imported Genuine Switching Power Supplies of Japanese Cosel/mgxs Series Dc-dc Power Supplies [wide dc Input Module]NegotiableMOQ: 0 Piece
-
Japan Cosel Dual-channel Isolated Module Power Supply With dc Input for Pcb Mounting, Model Sucw102412cNegotiableMOQ: 0 Piece
-
Japan Cosel Cbs Series Single-output Ac-dc Open-frame and Enclosed Industrial Switching Power Supply Cbs200NegotiableMOQ: 0 Piece
-
Cosel Original Switching Power Supply Mgw Series Dual Output Dc-dc Isolated Power Supply Module Mgw151205NegotiableMOQ: 0 Piece
Model: SFCS15, SFCS30 (Most models are available in stock. Welcome to inquire)
Country of origin: Japan
(The picture shows SFCS15)
(The picture shows SFCS30)

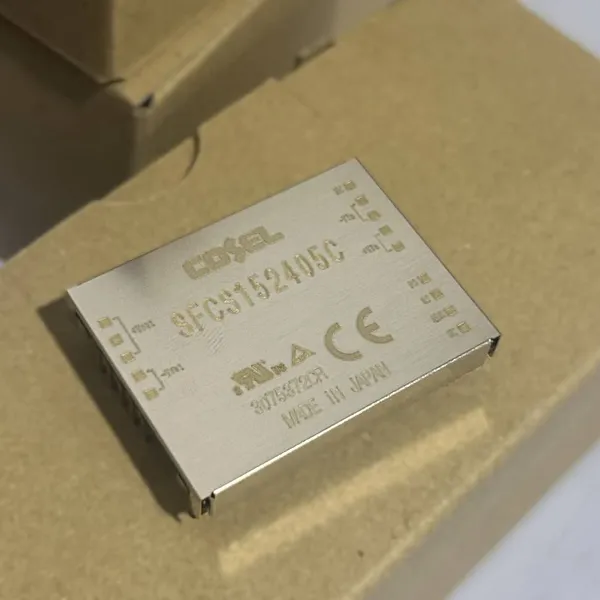

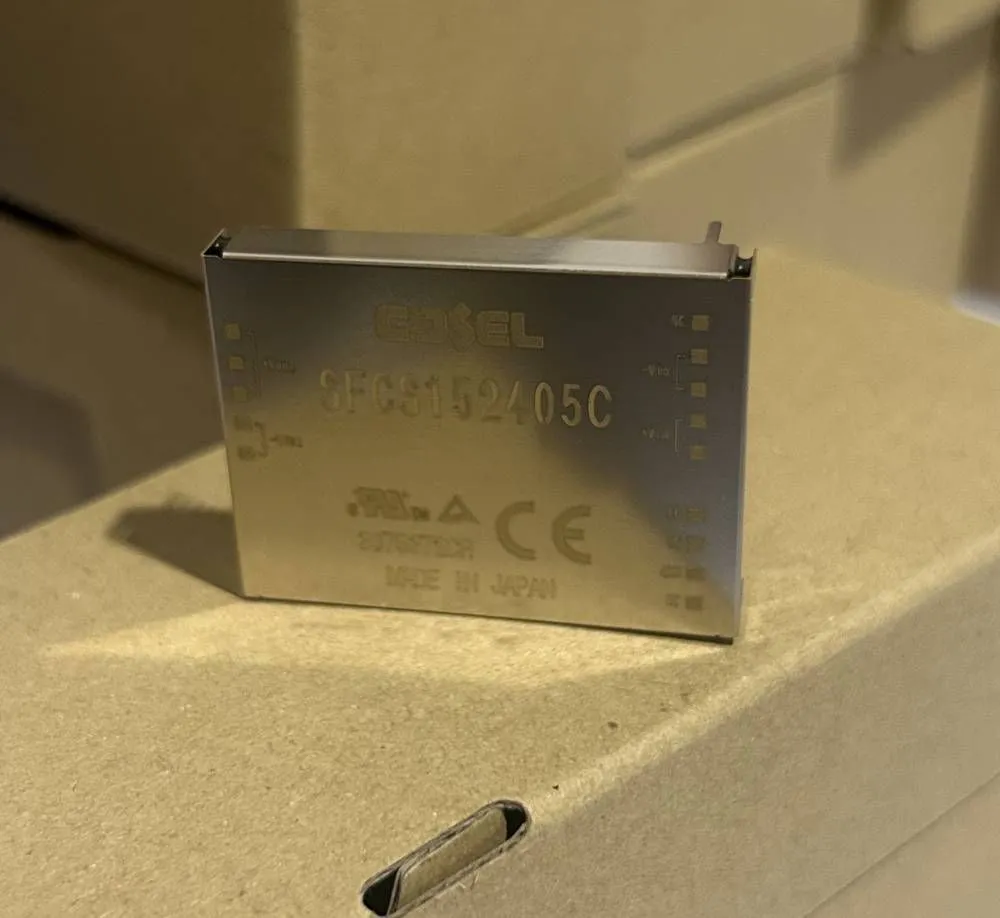

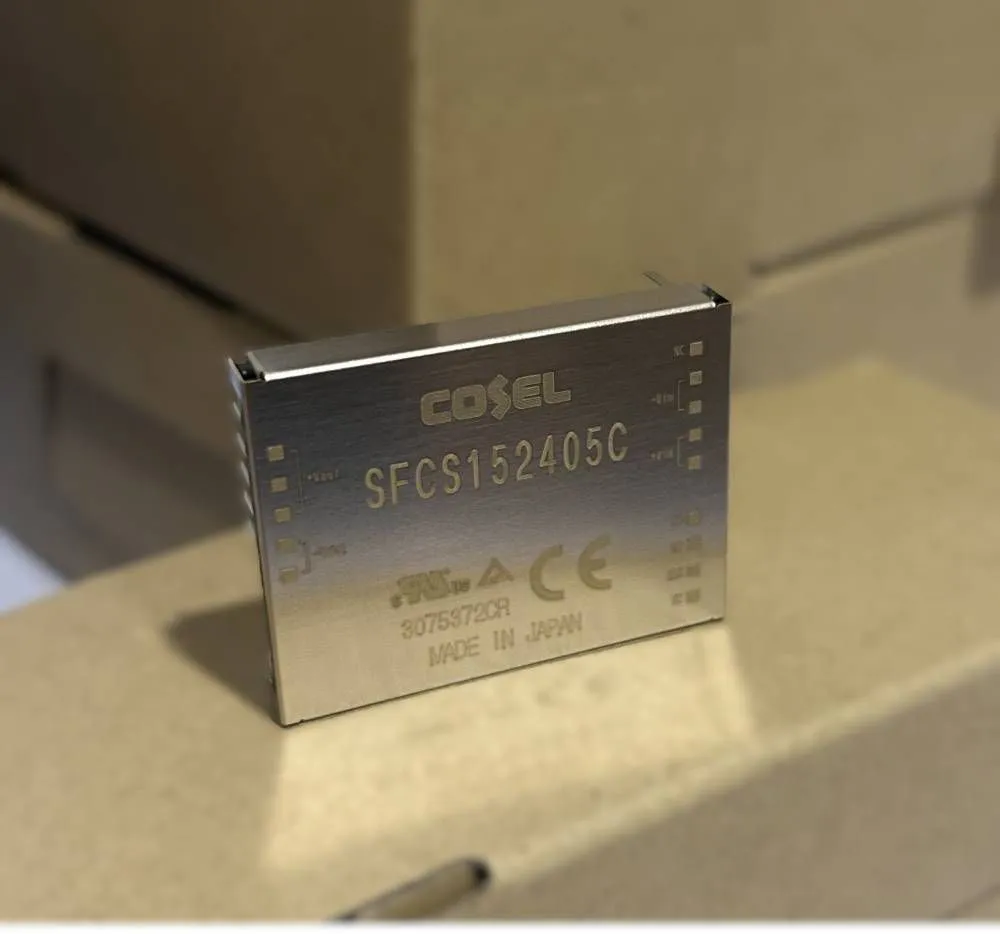

(The picture shows SFCS152405C)
Features:
| Parameter category |
Detailed specifications |
| Brand / Series |
Japanese COSEL / SFCS Series (SFCS15 / SFCS30) |
| Product type |
Single Output DC-DC Isolated Converter, PCB Through-Hole (DIP-C type) or Surface Mount (SMD-B type), with metal shielded enclosure |
DC 36～76V (48V system, model contains "48")
SFCS15: 3.3V@4.5A / 5V@3A / 12V@1.25A / 15V@1A
SFCS30: 3.3V@9A / 5V@6A / 12V@2.5A / 15V@2A
Ultra-small, low-profile metal case (SFCS15: 39.1×6.8×29.5 mm; SFCS30: 39.3×8.8×33.5 mm)
No built-in aluminum electrolytic capacitors or tantalum electrolytic capacitors (long lifespan and high reliability)
Supports parallel operation (Parallel Operation) for capacity expansion
Built-in Remote ON/OFF (remote control on/off) (RC open circuit = ON, short-circuited +Vin = OFF)
Alarm Output (ALM pin, triggered during overcurrent/undervoltage)
Remote Sensing (for some models)
Overvoltage Protection (OVP) 120% - 140% rated output voltage, automatic recovery
Undervoltage Lockout (UVLO) Shuts off when input is below 90% rated
Input - Case / Output - Case: DC 500V or AC 500V (1 minute)
Insulation Resistance: DC 500V, 50MΩ min
SFCS154812B (15W/12V/36-76V/SMD) SFCS304805C (30W/5V/36-76V/DIP)
