Japanese Cosel Pca300f/pca600f/pca1000f/pca1500f Series Chassis-mounted Switching Power Supplies
Key Specifications
Get Latest Price
Main Markets:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, Domestic Market
Location:
Shenzhen, Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Authentic Original Imported Switching Power Supplies of the Zuw Series, Dc-dc Low to Medium Power Small Module Power Supplies From Cosel, JapanNegotiableMOQ: 0 Piece -
Original Genuine Japanese Cosel Switching Power Supplies, Pja Series Ac-dc Power Supplies [enclosed Type]NegotiableMOQ: 0 Piece
-
Japanese Cosel Wda Series Din Rail-mounted Industrial Switching Power Supplies Wda30f/60f/90f/120fNegotiableMOQ: 0 Piece
-
Original Imported Genuine Switching Power Supplies of Pda Series, Ac-dc Power Supplies [enclosed Switching Power Supplies] From Cosel, JapanNegotiableMOQ: 0 Piece
-
Japanese Cosel Zus Series On-board Dc-dc Non-isolated Voltage-stabilized Module Power Supply Zus62412NegotiableMOQ: 0 Piece
Model: PCA300F, PCA600F, PCA1000F, PCA1500F
(Most models are in stock and available for supply. Welcome to inquire.)
Country of origin: Japan
(The picture shows PCA300F)
(The picture shows the PCA series)

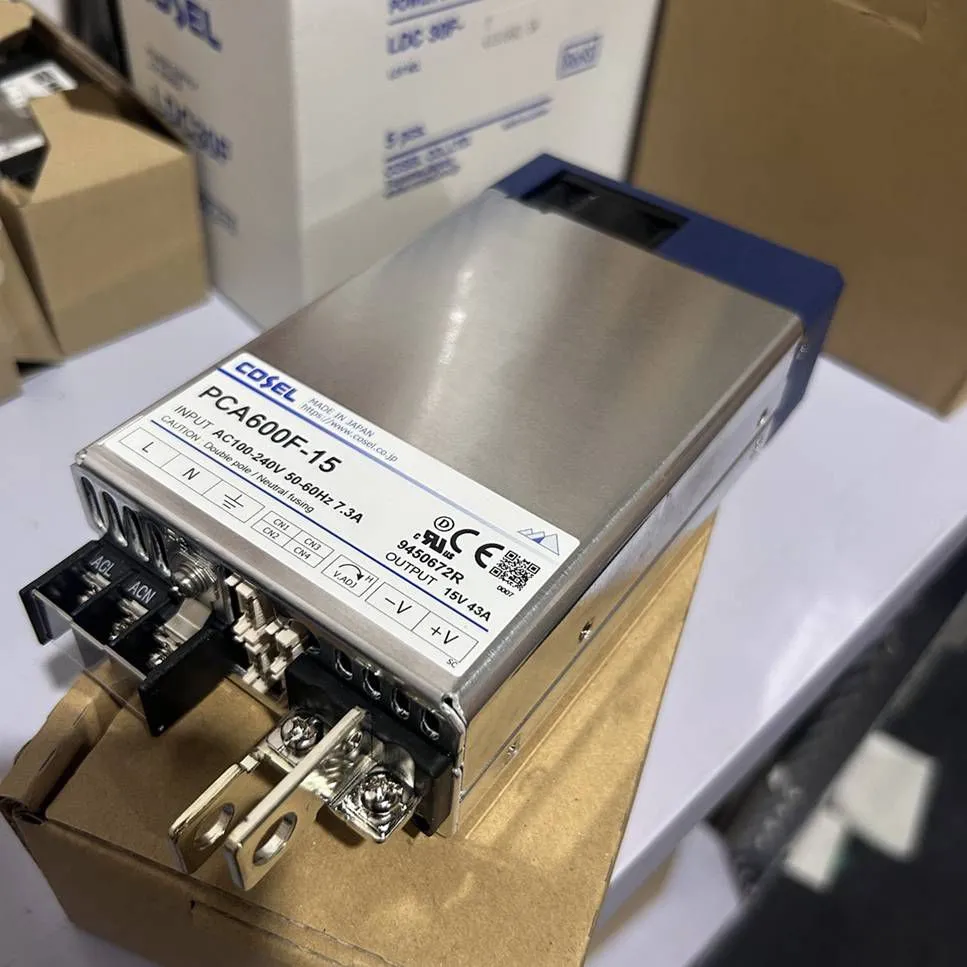

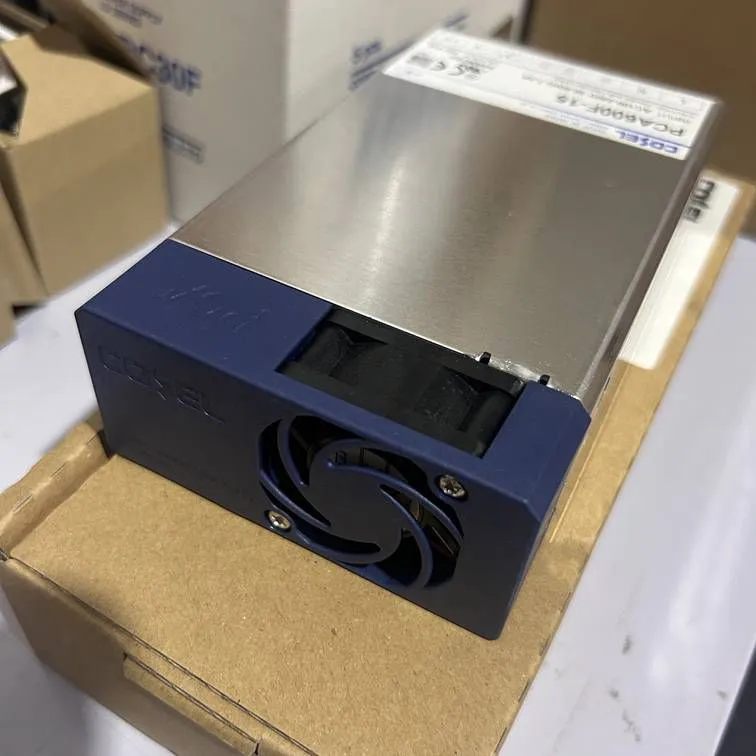

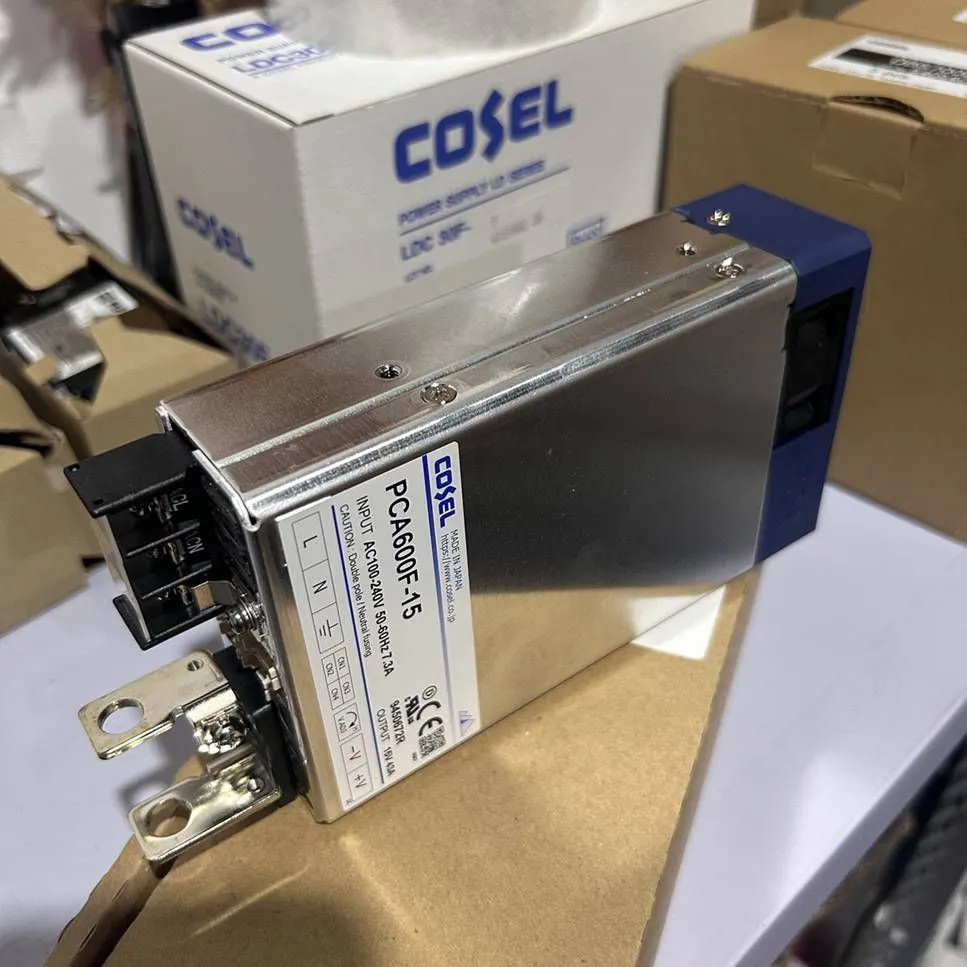

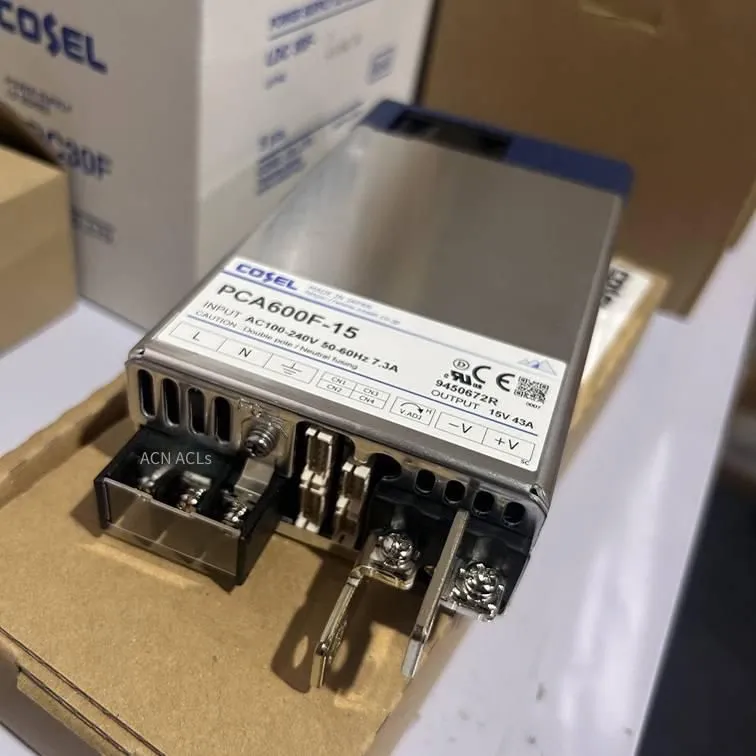

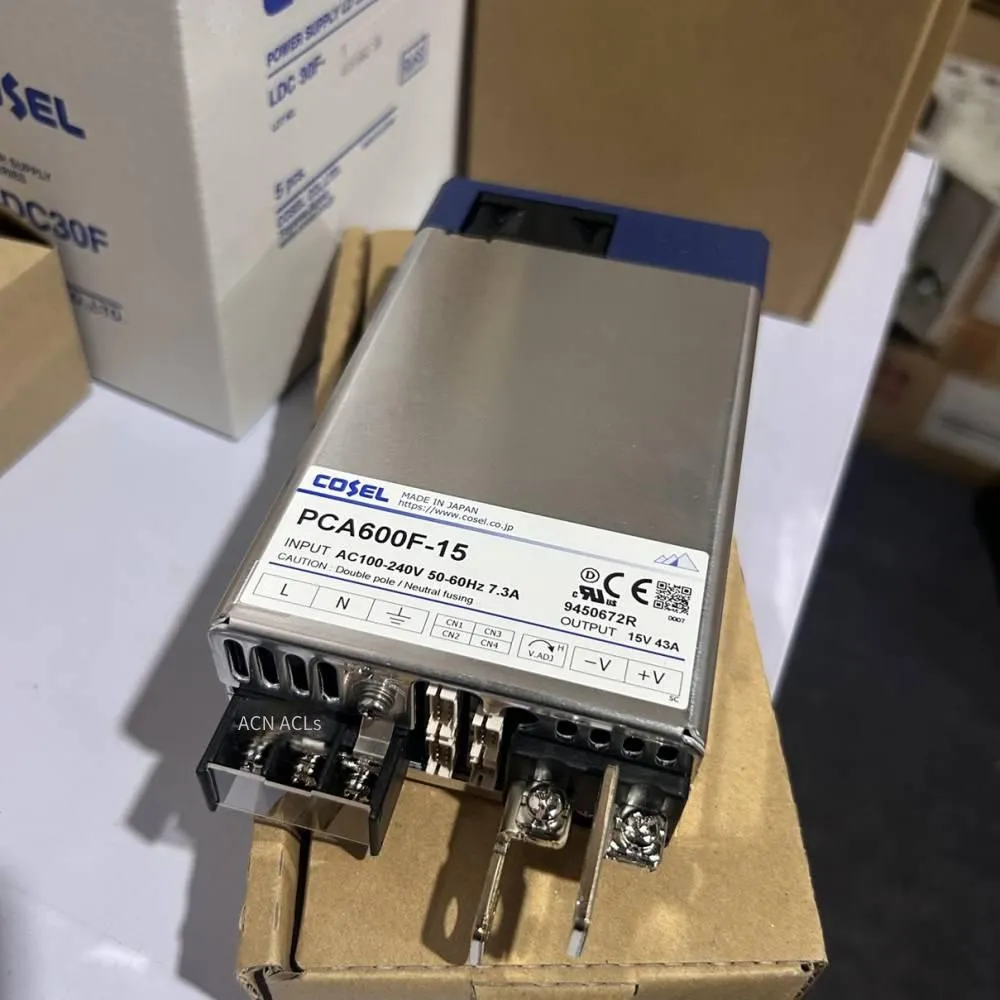

(The picture shows PCA600F-15)
Features:
| Parameter Category |
Detailed Specifications |
| Brand / Series |
PCA-F Chassis Series (PCA300F / PCA600F / PCA1000F / PCA1500F) |
| Product Type |
Single-output AC-DC Chassis Switching Power Supply, Metal Chassis + Protective Cover (Finger-safe), Terminal Block |
| Application Fields |
Industrial Control Cabinets, Semiconductor Testing Equipment, Printing/Packaging Machinery, Medical Auxiliary Machines (Partially -H Option), Large-scale Automated Production Lines |
| Input Voltage |
AC 85～264V Single-phase (50/60Hz, 47～63Hz), Some Models are Compatible with DC 120～370V |
| Output Power |
(Rated) PCA300F: 300W (150W @ AC85～132V) PCA600F: 600W PCA1000F: 1000W PCA1500F: 1500W (Requires Forced Air Cooling or Strong Natural Air Cooling) |
| Output Voltage |
DC 5V / 12V / 15V / 24V / 36V / 48V (Single-channel Fully Regulated), Built-in VR Fine-tuning ±5%～±10% |
|
Output Current (Typical @24V) |
PCA300F: 24V@13A PCA600F: 24V@25A PCA1000F: 24V@42A PCA1500F: 24V@63A |
| Efficiency |
Typical 85% - 91% (300W↑ Built-in Active PFC, PF≥0.95 @230V) |
| Design Features |
● Metal case + Removable cover, anti-electric shock, low EMI radiation ● Built-in Active PFC (Power Factor Correction) (All series) ● Built-in Class B EMI filter (Passes conduction test without external filtering) ● Reinforced insulation: Input - Output AC 3000V (1min), Input - FG AC 2000V ● DC OK LED indicator, Remote ON/OFF (R option), Remote Sense (≥600F) ● Optional Conformal Coating (C suffix), Alarm contact (N1 option) |
| Protection Functions |
● Overcurrent protection (OCP) 105% - 150% rated, automatic recovery (Hiccup) ● Overvoltage protection (OVP) Automatic recovery ● Short-circuit protection (SCP) Automatic recovery ● Overheat protection (OTP) (Built-in temperature sensor, shuts off when overheated and recovers automatically) |
| Insulation Withstand Voltage |
Input - Output: AC 3000V (1 minute) Input - FG: AC 2000V (1 minute) Output - FG: AC 500V (1 minute) Insulation resistance: DC 500V, ≥100MΩ |
| Safety Certifications |
UL62368-1 / UL60950-1, c-UL (CSA62368-1), EN62368-1, EN50178, CE, RoHS, UKCA, KC UL60601-1 / EN60601-1 (Partially -H medical option) |
| EMI / EMS |
Conduction: EN55011 / EN55022 Class B (FCC Class B) Immunity: EN61000-6-2 (ESD ±8kV/±15kV, EFT ±2kV, Surge ±2kV) |
| Working environment |
-10～+70℃ (According to the derating curve, the output power needs to be reduced at high temperatures; For 1500W models, forced air cooling is recommended or the ambient temperature should be restricted.) Humidity: 20～95% RH (No condensation) Cooling: Natural convection (300W) / Temperature-controlled fan (600W↑, PCA1500F comes standard with a fan) |
|
External dimensions (Approx. W×H×D) |
PCA300F: 160×63×127 mm (Approx. 1.3kg) PCA600F: 190×63×150 mm (Approx. 1.9kg) PCA1000F: 217×63×180 mm (Approx. 2.8kg) PCA1500F: 260×63×210 mm (Approx. 4.0kg) |
| Warranty |
5-year original factory warranty (Conditional) |
| Typical models |
PCA300F-24 (300W/24V), PCA600F-24 (600W/24V) PCA1000F-24 (1000W/24V), PCA1500F-24C (1500W/24V with three-proof paint) |
Send Inquiry to This Supplier
