Model: MGFS1R5, MGFS3, MGFS6, MGFS10, MGFS15, MGFS30, MGFS40, MGFS80

(Most models are in stock. Welcome to inquire about the inventory of each model)

Country of origin: Japan



(The picture shows MGFS1RS)




(The picture shows MGFS3)



(The picture shows MGFS80)

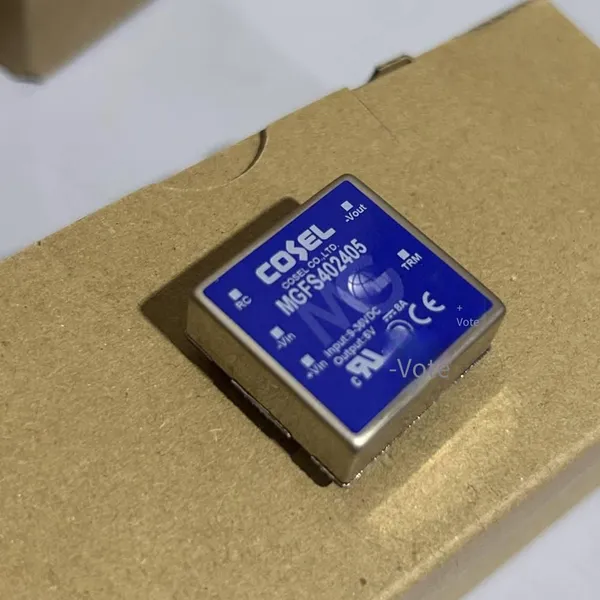

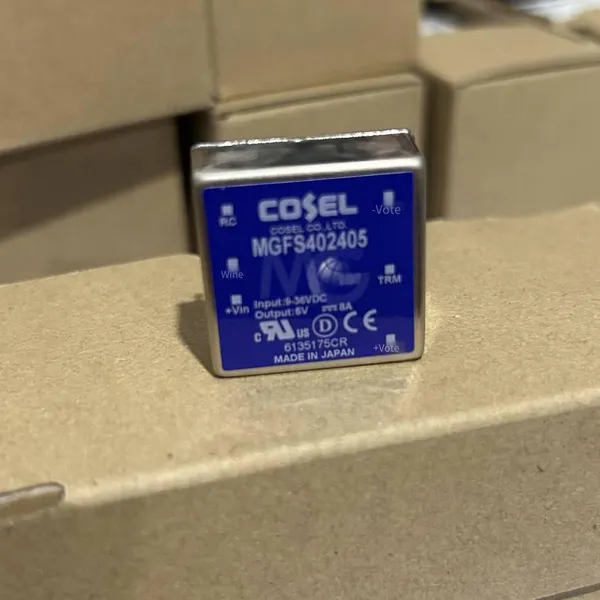

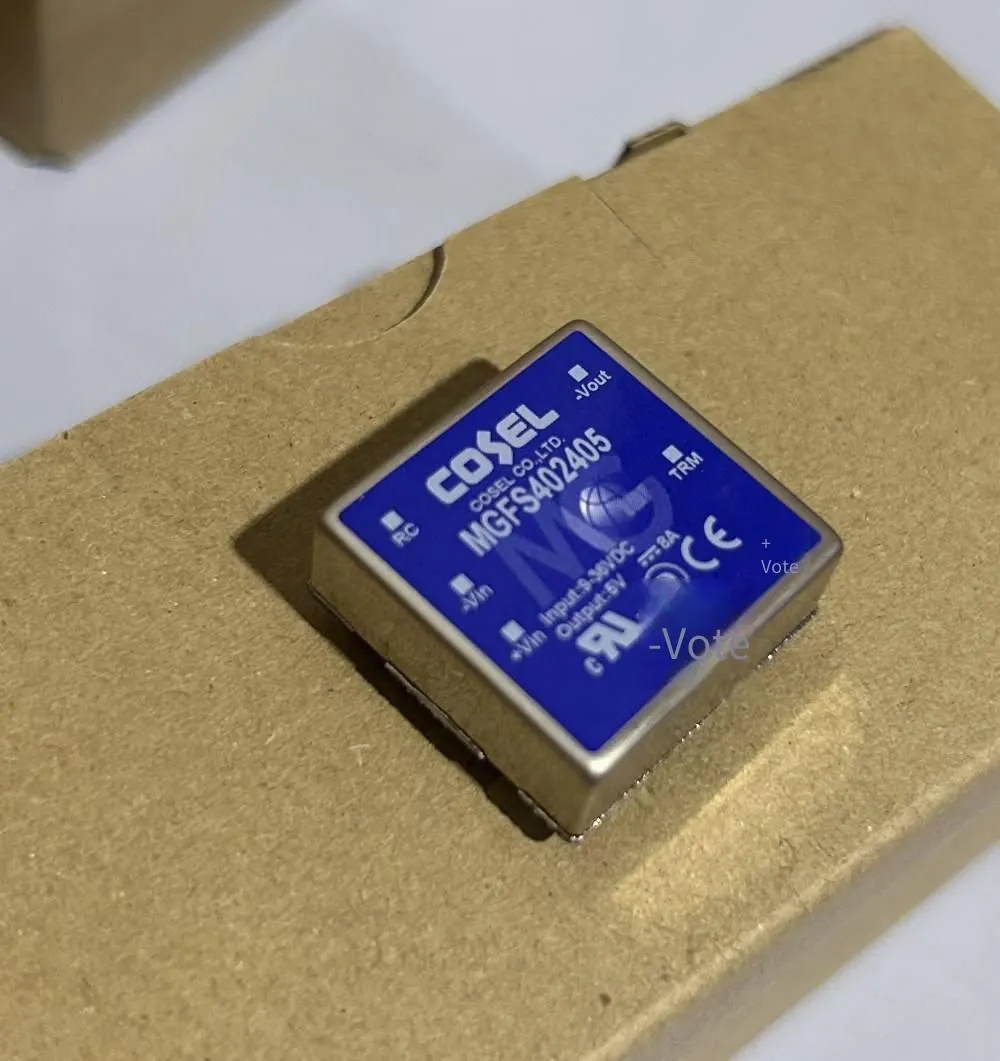

(The picture shows MGFS402405)



Features:

  • Parameter category Parameter category
    Brand / Series Japan COSEL / MGFS Series (MGFS1R5 / MGFS3 / MGFS6 / MGFS10 / MGFS15 / MGFS30 / MGFS40 / MGFS80)
Product Type Single Output DC-DC Isolated Converter, PCB Through-Hole (DIP / SIP6 / SIP8 / 1"×1" / 1"×2" Package) Application Areas Industrial Automation PLC/DCS, Communication Equipment, Embedded Systems, Board-Level Power Supply for Test and Measurement Instruments Input Voltage DC 4.5～13V (5V System) / 9～36V (24V System) / 18～76V (48V System), Surge Withstand Voltage 50V (24V Model) / 100V (48V Model) for 100ms Output Power 1.5W / 3W / 6W / 10W / 15W / 30W / 40W / 80W (Depending on the Model) Output Voltage DC 3.3V / 5V / 12V / 15V / 24V / 28V / 48V (Fully Regulated), Models of 30W and Above with ±10% External Fine-Tuning (TRM Terminal) Output Current MGFS6: 5V@1.2A / 12V@0.5A


MGFS30: 5V@6A / 12V@2.5A / 24V@1.25A

MGFS80: 5V@16A / 12V@6.7A / 24V@3.4A / 48V@1.7A

Efficiency Typical 77%～94% (Approximately 77%～80% for 1.5W Models; 94% for 80W Models, Synchronous Rectifier Circuit Design) Design Features Industrial Standard Packages: SIP6(1.5W/3W), SIP8(6W/10W), 1"×1"(15W/40W), 1"×2"(30W/80W)


Six-Sided Metal Shielding (15W and Above), Low EMI Radiation

No Built-In Aluminum Electrolytic Capacitors or Tantalum Electrolytic Capacitors (All-Solid Long-Life Design)

Control Functions


Built-in Remote ON/OFF (Negative logic: L=ON, H=OFF, applicable to models of 6W and above)

Fine-tune the output voltage via an external potentiometer connected to the TRM terminal (±10%, applicable to models of 15W and above)

Protection functions Overcurrent protection (OCP) >105% of rated value, auto-recovery

Overvoltage protection (OVP) (for 30W/40W/80W models) 115% - 140% of rated value, auto-recovery

Undervoltage lockout (UVLO)

Isolation withstand voltage Input - Output: DC 1,500V (for 1 minute) or AC 1,000V (for 1 minute)

Insulation resistance: DC 500V, 1,000MΩ min

Safety certifications UL60950-1 / UL62368-1, c-UL (CSA62368-1), EN62368-1, EN60950-1, CE, RoHS, UKCA Operating environment -40 to +85°C (According to the derating curve, derating is required at high temperatures), humidity 20 - 95% RH (non-condensing)

Anti-vibration 10 - 55Hz / 10G, anti-shock 490m/s2 (50G)

Natural convection / Forced air cooling (for large models)

Warranty 5-year original manufacturer's warranty (Some models have a 10-year warranty, refer to the manual) Typical models MGFS1R52405 (1.5W/5V/9-36V), MGFS63005 (6W/5V/9-36V)

MGFS302412 (30W/12V/18-76V), MGFS804805 (80W/5V/18-76V)

Product Tags: Japanese Cosel , Switching power supply , Imported power supply , PCB-mounted , Cosel power supply
