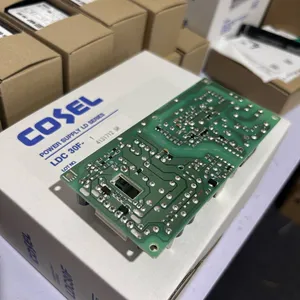

Imported Switching Power Supplies Ldc15f/ldc30f/ldc60f With Japanese Cosel Industrial Power Supply Technology
Key Specifications
Get Latest Price
Main Markets:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, Domestic Market
Location:
Shenzhen, Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Japanese Cosel Gha300f/gha500f/gha700f Medical/industrial Enclosed Switching Power SuppliesNegotiableMOQ: 0 Piece -
Authentic Original Single-phase Noise Filter Nap Series Imported From Cosel, JapanNegotiableMOQ: 0
-
Japanese Cosel Industrial Power Supply, Dbs Series Imported Switching Power Supply, Model Dbs700b28NegotiableMOQ: 0 Piece
-
Dc-dc Power Module, Imported Original From Japan's Cosel Mgfs Series, Mgfs402405NegotiableMOQ: 0 Piece
-
Pcb-mounted Japanese Cosel Sfcs Series Dc-dc Power Module, Model Sfcs152405cNegotiableMOQ: 0 Piece

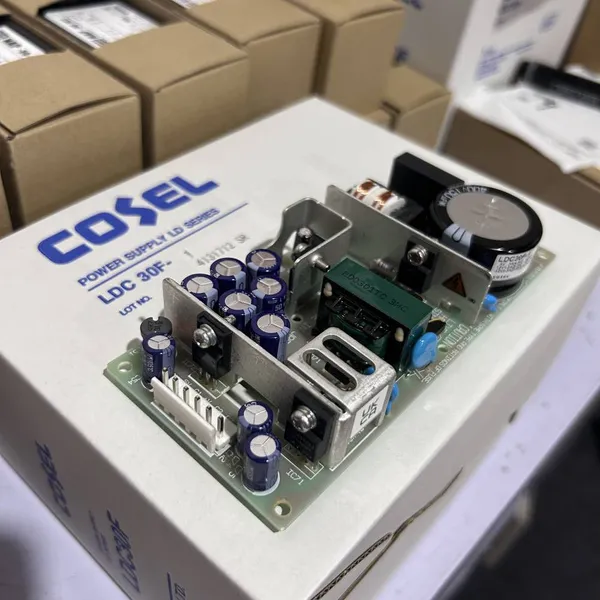

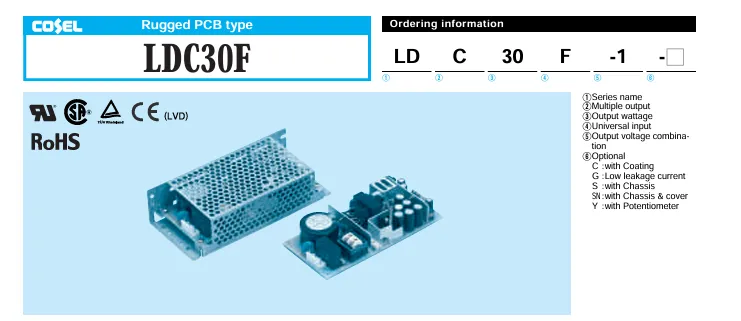

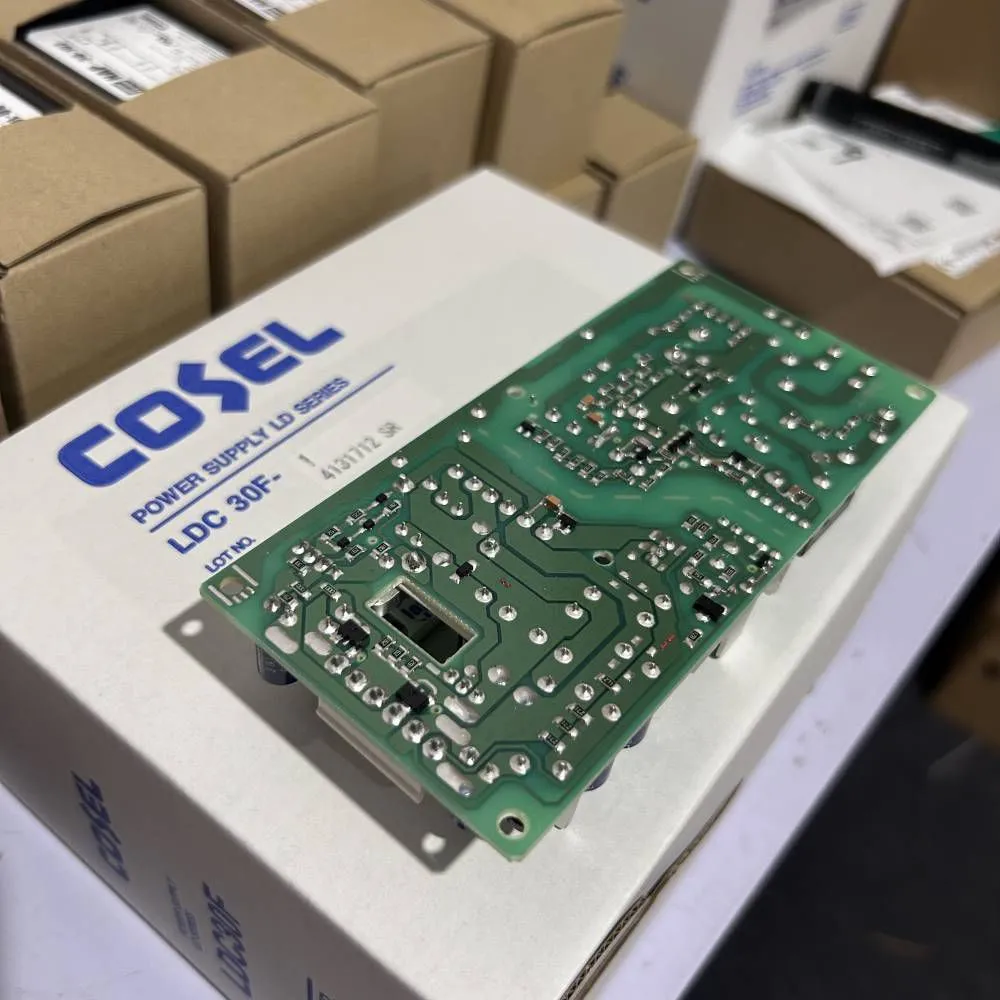

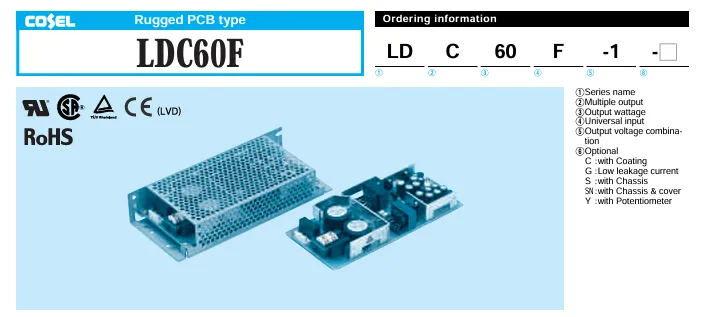

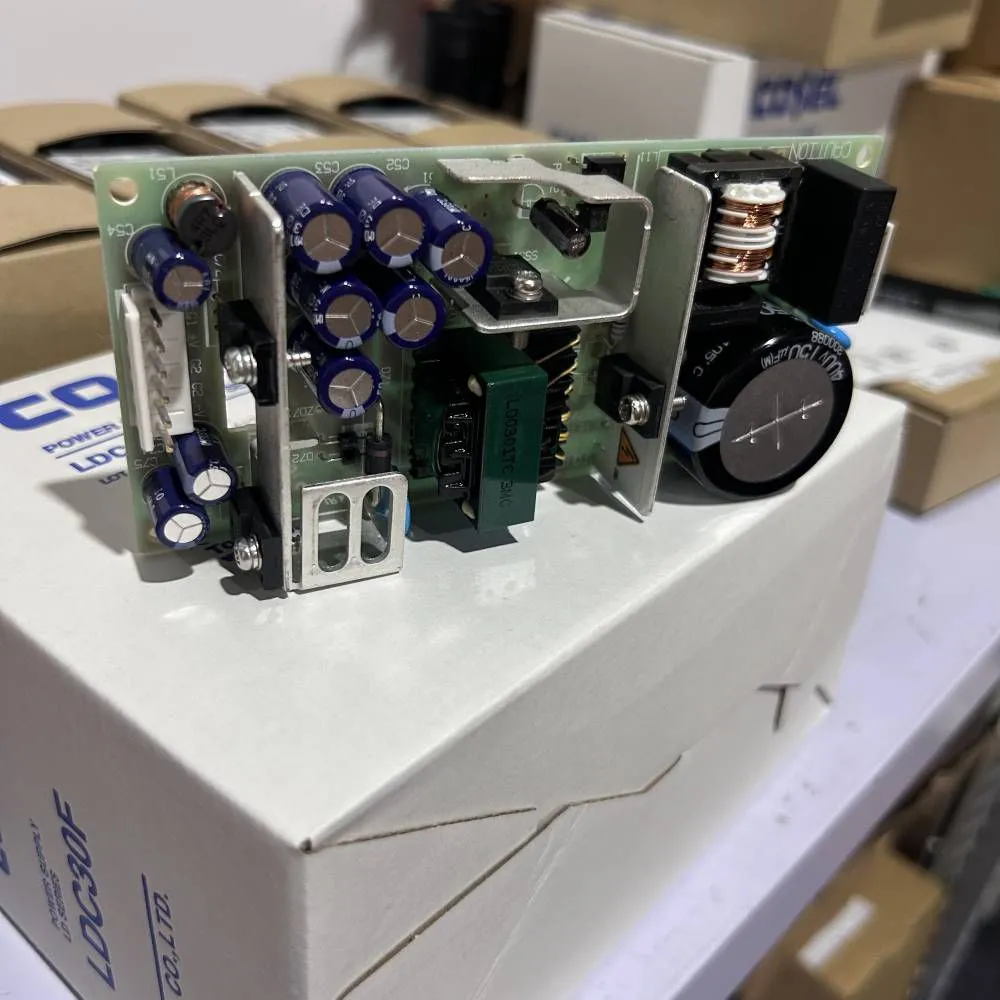

Model: LDC15F LDC30F LDC60F
(Most models are available in stock. If out of stock, you can place an order. Welcome to consult.)
Country of production: Japan
|
Item |
Specification |
|
Input voltage |
AC 85～264V (single-phase), 47～63Hz; DC 110～370V |
|
Output power |
15W (LDC15F), 30W (LDC30F), 60W (LDC60F) |
|
Output voltage range |
DC 3V/5V/12V/15V/24V/48V, etc. (Adjustable within ±10% of the main output depending on the specific model) |
|
Number of output channels |
Triple Output, typical combinations: +5V / ±12V or +5V / ±15V; Combinations from 3V to 48V can be customized through model selection |
|
Rated output current |
LDC15F: +5V 2A, ±12V/±15V 0.2A; LDC30F: +5V 3A, ±12V 1.2A/±15V 1A; LDC60F: +5V 5A, ±12V 2.5A/±15V 2A |
|
Efficiency |
Approximately 70% - 80% (depending on the model) |
|
Voltage regulation method |
PWM pulse width modulation, full voltage regulation design |
|
Protection function |
Built - in over - current protection (OCP), over - voltage protection (OVP), inrush current limitation, short - circuit protection (auto - recovery) |
|
Insulation voltage withstand |
Input - Output: AC 3,000V (1 minute); Input - FG: AC 2,000V; Output - FG: AC 500V |
|
Safety Standards |
UL60950-1 / UL62368-1, c-UL, EN60950-1, EN50178 (Compliant with Power Industry Applications), TüV Certification |
|
EMI/EMS Standards |
Conducted Emissions: FCC Class B, VCCI-B, CISPR22-B, EN55022-B; Immunity: EN61000-6-2 |
|
Operating Environment |
-10 to +60°C (Natural Air Cooling, Derating Required at High Temperatures), Humidity 20 to 85% RH (Non-condensing) |
|
Structure / Installation |
Open PCB Substrate Type / Chassis Mount with Enclosure, Compact Design (Approximately from 140×65×23 mm) |
|
Warranty |
2 Years (Original Factory Warranty) |
|
Typical Models |
LDC15F-1 / LDC15F-2, LDC30F-1 / LDC30F-2, LDC60F-1 / LDC60F-2 |
