Steering Wheel Friction Test Bench
1. Usage:
A special test bench for automobile steering wheel friction tests - a dedicated device for checking the wear resistance and color fastness of the steering wheel rim.
2. Main Features
The design meets the requirements of the "Friction Test" stipulated in Clause 2.6 of the "Automobile Industry Standard of the People's Republic of China" QC/T563 - 1999.

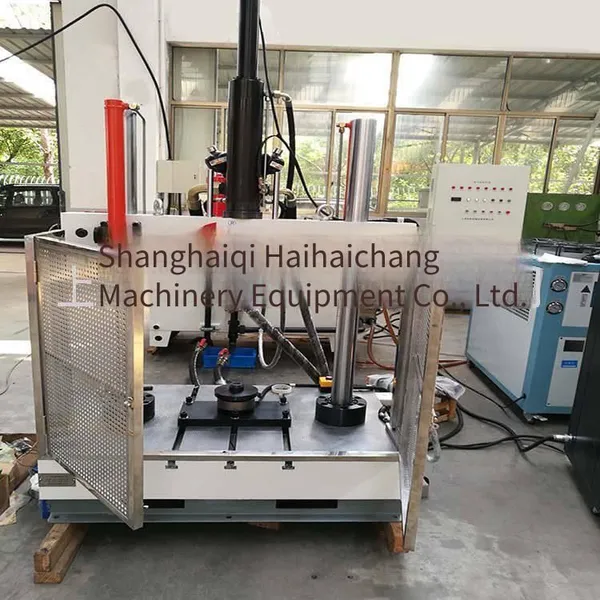

3. Main Structure and Working Principle
1. One test bench main unit;
(Including the main unit frame, mounting plate, crank - connecting rod mechanism, servo drive system, guide rail, weight, etc.)
2. One set of special test tooling fixtures;

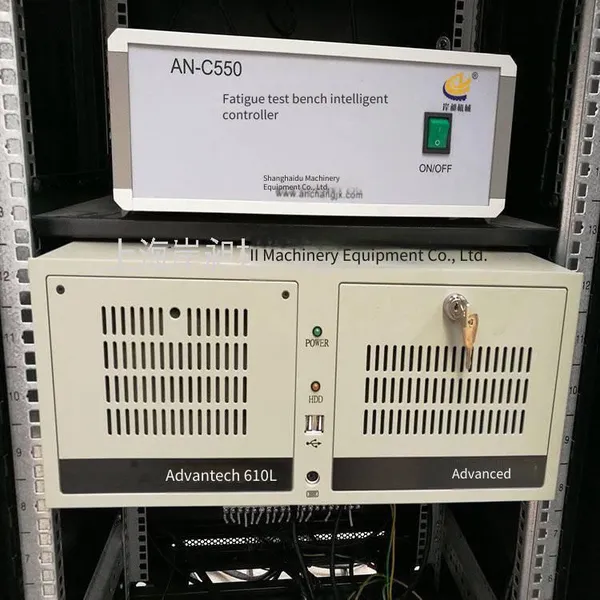

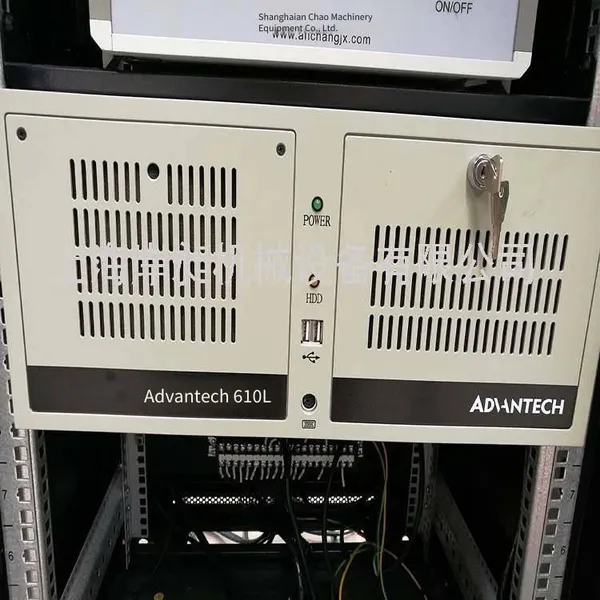

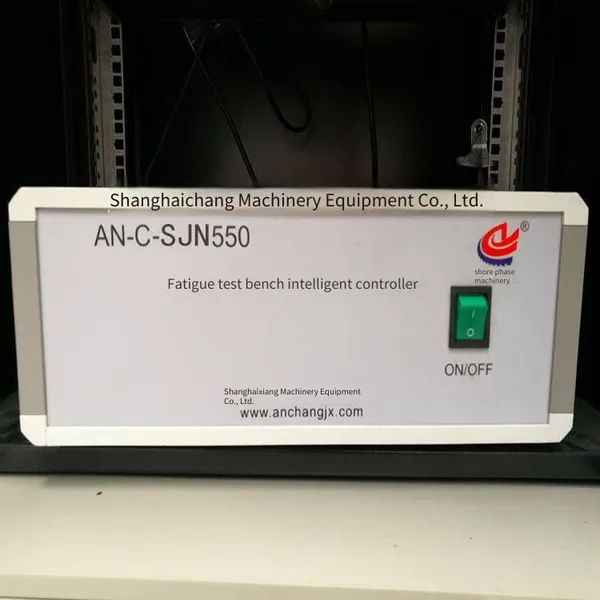

3. One set of servo control system,
4. Technical Specifications and Parameters
1. Friction stroke: 0mm~150mm
2. Round - trip frequency: 0.01---1Hz (adjustable, the standard stipulates 0.83Hz)
3. Cloth width: 45mm (artificial sweat)
4. Weight mass: 1.0Kg
3. After - sales Service:
1. After the equipment is installed and debugged at the buyer's site and qualified, starting from the date of signature and confirmation by both parties, Shanghai Anchang Machinery & Equipment Co., Ltd. provides one - year free warranty; lifetime maintenance.
2. During the warranty period of the goods, Shanghai Anchang Machinery & Equipment Co., Ltd. is responsible for all non - human - induced quality problems, and the company shall bear the maintenance costs. After the main components of the goods are replaced during the warranty period, the warranty period of the goods will be recalculated. The equipment provides lifetime maintenance services. Only the cost of spare parts will be charged for maintenance after the warranty period. Shanghai Anchang Machinery & Equipment Co., Ltd. will provide all spare parts for this equipment at a preferential price for life;
3. During the use of the goods, after receiving the maintenance service notice from your side, Shanghai Anchang Machinery & Equipment Co., Ltd. will respond within 1 hour with excellent service attitude and complete communication with our technical staff; provide a maintenance solution within 2 hours; solve general faults within 6 hours; if necessary, enter the site within 24 - 48 hours.
4. Shanghai Anchang Machinery & Equipment Co., Ltd. has a dedicated after - sales service team, which actively follows up and provides dynamic services. According to the archives, it will make irregular return visits to check the operation of the equipment, and timely discover and eliminate potential problems;
5. Provide free software upgrades and train or guide the operators.
