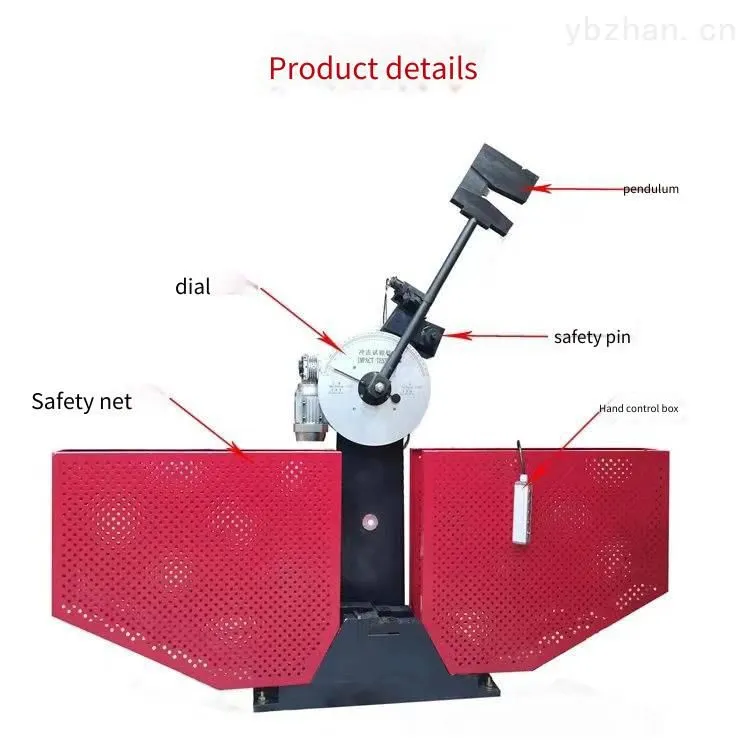

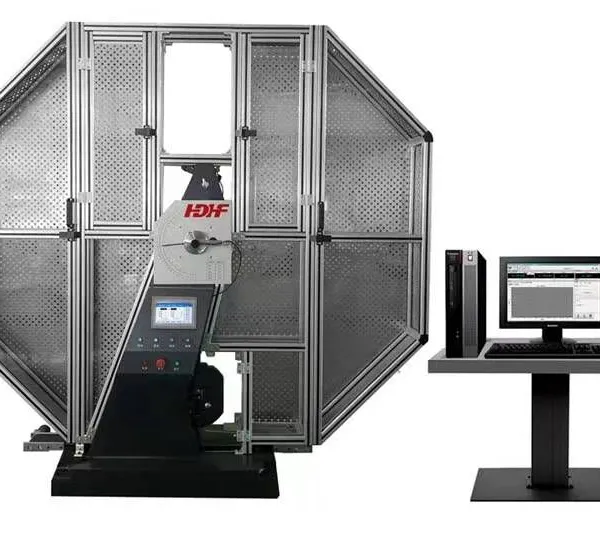

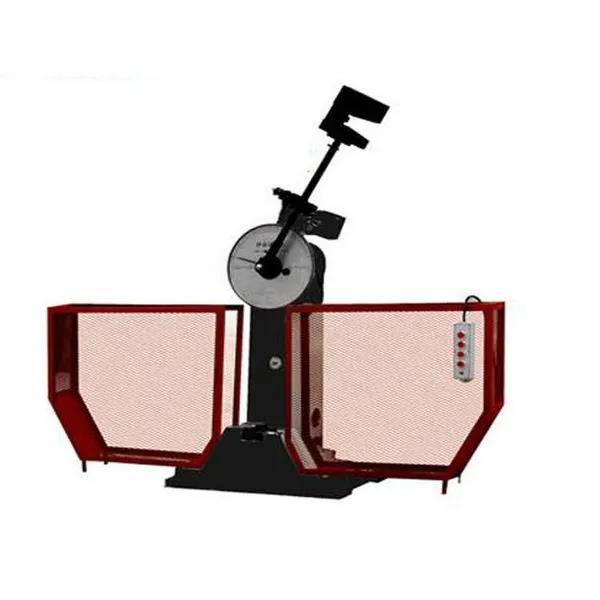

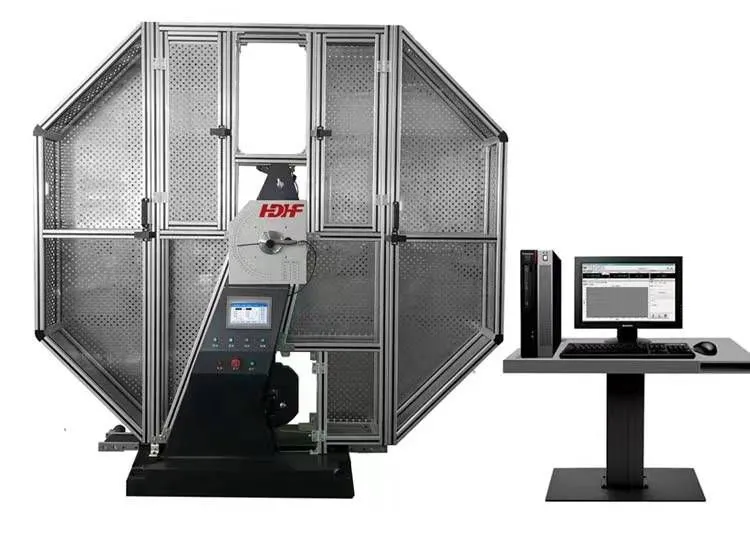

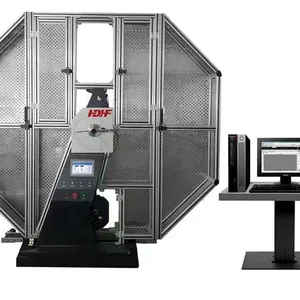

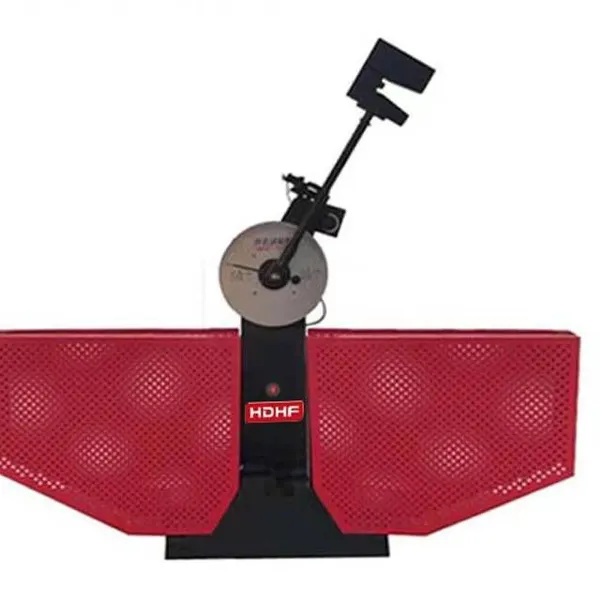

Product Introduction:
The 300J Charpy pendulum impact tester is designed by Shanghai Anchang Machinery & Equipment Co., Ltd. strictly in accordance with GB/T3038-2018 "Inspection of pendulum impact testers" and GB/T229—2020 "Metallic materials - Charpy pendulum impact test method". It undergoes factory inspection in accordance with JJG145-82 "Pendulum impact testers".
Introduction to Basic Functions
Bilingual interface: Supports two operating languages, English and Chinese. You can switch between English and Chinese before entering the test interface;
Semi-automation: During the test, first manually lift the pendulum, then manually load the sample after completion, and then perform pin withdrawal and impact. After the impact, the device automatically lifts the pendulum. After each experiment is completed, the system display area will show the impact energy and impact toughness. Three tests form a group. After a group is completed, the system automatically calculates the average value of the three impact energies.
Storage function: Can store 100 groups of experimental data, including information such as test name, original test values, average value, and test time.
Printing function: (Optional) Print the current test data through a micro printer.
Multi-level energy: The device supports weights of multiple different energy levels.
Introduction to Screens
The machine has a total of screens including the startup language selection screen, main operation screen, storage and retrieval screen, password input screen, system settings and printing screen, with six screens each in English and Chinese.
Test startup screen: Select the English or Chinese system before entering the test
Jinan Hengda Huifeng 300J Charpy pendulum impact tester Main technical specifications:
1. Impact energy: 300J
2. Pendulum moment 160.7695NM
3. Dial scale range: 0～300J, with a graduation value of 2J per small grid;
4. Radius of the impact blade arc: 2～2.5mm;
5. Distance from the center of the pendulum to the impact point (test center): 800 mm
6. Pre - lifting angle of the pendulum: 150°
7. Impact velocity: 5.4~5.58 m/S
8. Span of the specimen support: 40 mm
9. Radius of the arc at the end of the specimen support: 1-1.5 mm
10. Inclination angle of the support surface of the specimen support: 0°
11. Radius of the impact knife arc: 2-2.5 mm
12. Included angle between the two inclined planes of the impact knife: 30°
13. Impact blade thickness: 16 mm
14. Blade: National standard
15. Specimen specifications: 10×10×55 mm, 10×7.5×55 mm, 10×5×55 mm
16. Minimum resolution value displayed by the computer: 0.1J
17. Weight of the testing machine: Approximately 1500KG
18. External dimensions of the testing machine: 2300*600*1400 mm
