Help CenterMAC Three-Way Valve 224B-500EA
Related Products
-
MAC 4-Way Valve 6512B-131-PM-611JDNegotiableMOQ: 1 Piece -
MAC BVX14 Liquid Solenoid Valve 2/3 Way Radial & Axial Flow USA Fluid Control Solenoid ValveNegotiableMOQ: 1 Piece
-
MAC BV314 Bullet Valve 3-Way Cartridge Pneumatic Operated Valve 14mm Bore USA Solenoid ValveNegotiableMOQ: 1 Piece
-
AC 48B-AMA-000-GDFC-2KA Spool Valve 5/2 Way Single Solenoid Valve 24VDC USA Pneumatic Control ValveNegotiableMOQ: 1 Piece
-
MAC 711C-12-PI-592CA Spool Valve 4/2 Way Single Operation 1/4\" NPTF 24VDC US Pneumatic Solenoid ValveNegotiableMOQ: 1 Piece
Product Introduction

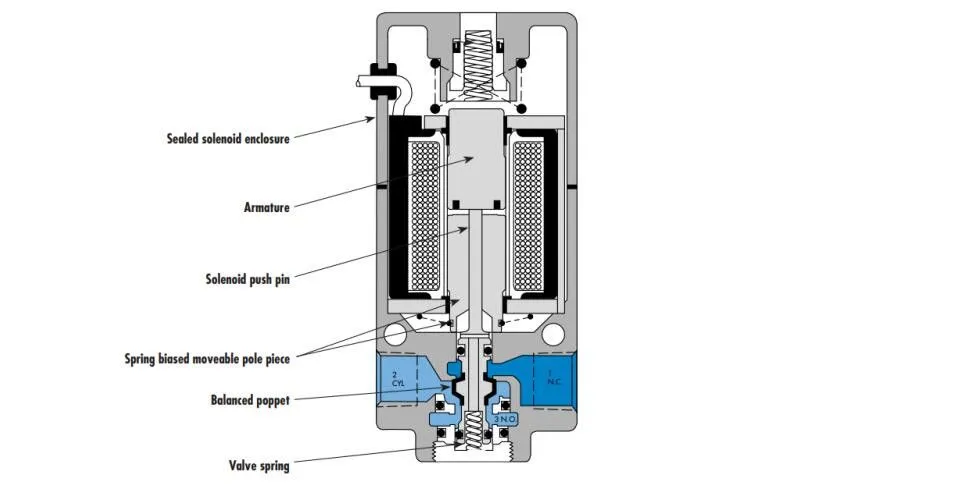

MAC’s entry into the hazardous location market began with the 200 Series. This valve is a direct-acting, high-flow lift valve. The 200 Series is available in a variety of sizes to suit many applications. With 30 years of proven performance, the 200 Series hazardous location valve is a time-tested solution and a testament to MAC’s quality and design excellence over the decades. Here, the 200 Series is shown actuating a 58 Series 3-way valve. The pilot valve function plate allows for greater flexibility in selecting different functions (three-way normally closed, three-way normally open, two-way normally closed, two-way normally open, pressure selector). The bonded spool with a wiper action and the glass-like finish of the orifices ensure the valve has a high margin of operating force.
Performance Features
Short stroke, high flow
High pilot pressure
High actuating force
Greater flexibility in selection
Balanced lift valve, unaffected by pressure fluctuations
Return spring
Burnout-protected solenoid valve on AC power
Optional Features and Accessories
Medium-aniline point lubricant 180 to 210 ℉
