Product Description

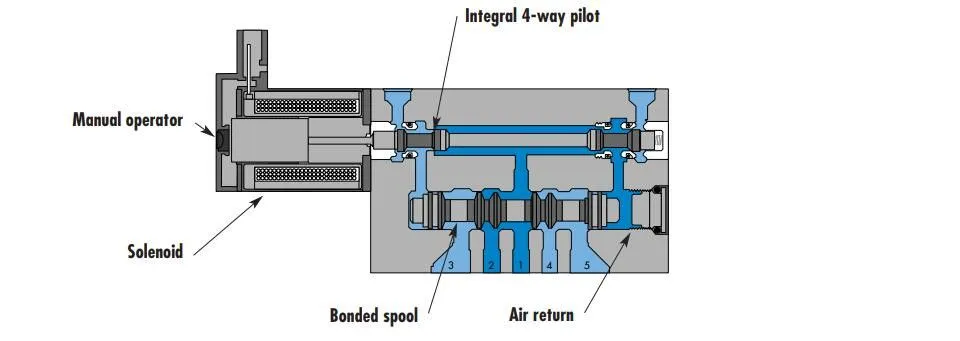

The MAC 48 Series is a high-flow 16mm four-way spool valve featuring a unique integrated four-way pilot. The short-stroke solenoid valve utilizes an elliptical armature to achieve maximum shifting force within a small footprint. The four-way pilot design ensures low operating pressure, a piston-less configuration, and minimal shifting resistance. The balanced design of the pilot ensures consistently high shifting force and repeatable response times, regardless of inlet pressure fluctuations.
| Technical Parameter | Specification |
|---|---|
| Origin | USA |
| Function | 5/2 Way Single Solenoid Valve |
| Port Size | No valve base |
| Max Flow Rate | 1.1 Cv |
| 1/8" Side Port Flow | 1.0 Cv |
| Fluid | Compressed air, vacuum, inert gas |
| Pressure RangeInternal PilotExternal Pilot | 20 to 120 PSIVacuum to 120 PSI |
| Pilot Pressure | 20 to 120 PSI |
| Lubrication | Not required |
| Filtration Requirement | 40 µm |
| Temperature Range | 0 to 120 ℉; -18 to 50 ℃ |
| Coil | Class A wire (#22 AWG x 18), continuous duty |
| Voltage Tolerance | -15 ~ +10% of nominal voltage |
| Rated Voltage | 24 VDC |
| Power Consumption | 4.0 W |
| Response Time (4W Coil) | Energize: 6 ms; De-energize: 6 ms |
| Mounting Type | Non plug-in base design |
| Pilot Air Supply | Internal |
| Cable Length | 36" |
| Manual Override | Locking groove type |
| Electrical Connection | Plug-in wire assembly |
Performance Features
Cv (Max): 1.1
Port Size: 1/8"
Configuration: In-line – Manifold: Plug-in / Non-plug-in
4-way valve with integrated 4-way pilot
16 mm valve
High flow rate (up to 1.1 Cv)
Fast, repeatable response time
High actuating force in both directions
Long service life
Optional Features and Accessories
Medium-viscosity aniline-based lubricant, 180 to 210 °F; 80 to 100 °C
Product Applications
Automotive, Carpets and Textiles, Cement and Concrete, Dust Collection, Electronics, Filling, Food, Glass, HVAC, Material Handling (Conveyors), Packaging, Plastics, Power Generation, Primary Metals (Aluminum), Printing, Tires and Rubber, Recycling, Transportation, Wood Processing
