**Overview**

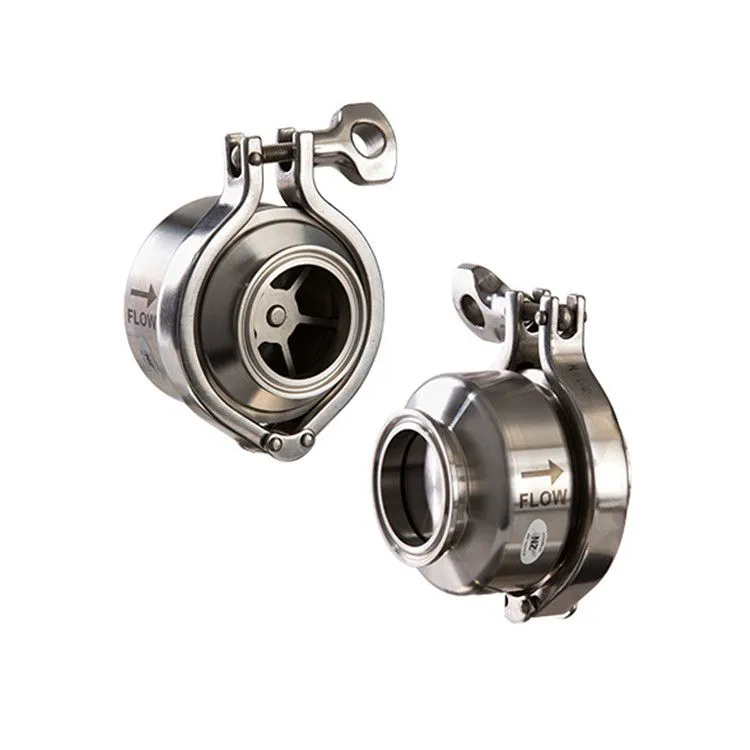

The SUDMO F264J check valve prevents reverse flow and is manufactured from stainless steel with optimized washability design. It is a piston-type valve held in the normally closed position by a lightweight stainless spring, ensuring low opening pressure. When forward flow begins, the valve piston moves and compresses the spring until reaching the full-open travel limit. The valve features a robust one-piece fully machined stainless body design, and paired with a heavy-duty cast body clamp, can withstand pressure spikes far exceeding the rated 10 bar.
**Technical Specifications**
| Parameter | Value |
|---|---|
| Origin | USA |
| 20 °C Max Pressure | 10 bar (145 psi) |
| 20 °C Min Pressure | Full vacuum |
| Temperature Range | -10 to 95 °C (14 to 230 °F) |
| Valve Size | DN 25 (1.0") |
| ØA1 | 22.3 mm (0.88") |
| ØA2 | 25.4 mm (1.0") |
| ØB | 64 mm (2.5") |
| ØC | 78.3 mm (3.00") |
| D | 71.0 mm (2.8") |
| Metric Standard | DIN 11850 and DIN 32676 |
| Inch OD Standard | ISO 2037, BS 4825-1, ISO 2852 |

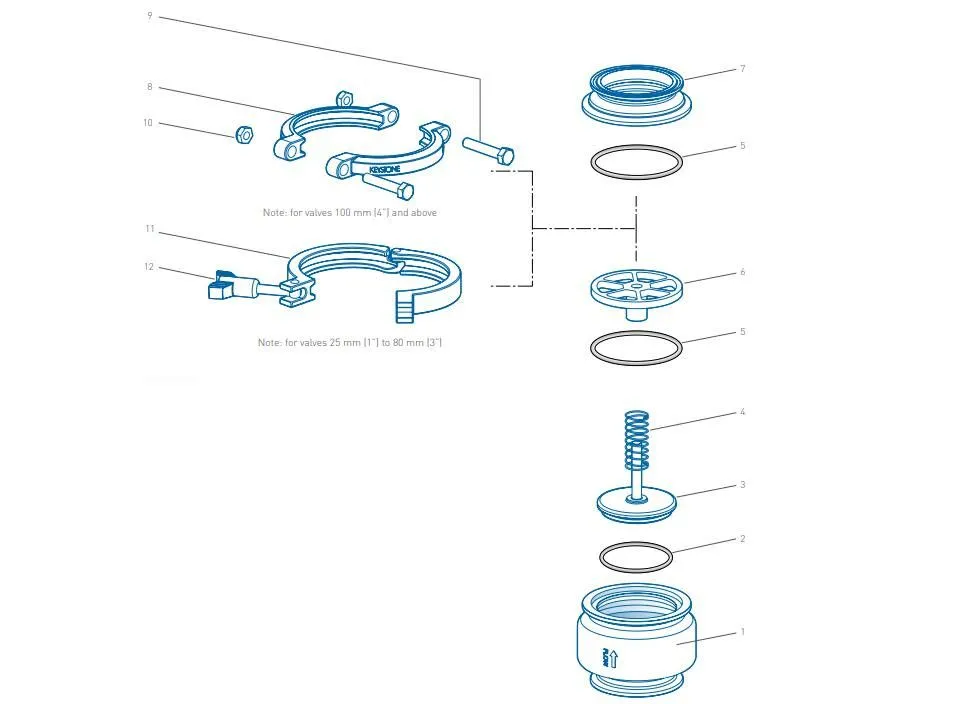

**Valve Components**
1. Body, 2. Plug seal ring, 3. Plug, 4. Spring, 5. Guide seal ring, 6. Guide, 7. Cover, 8. Heavy-duty clamp, 9. Bolt, 10. Nut, 11. Swing clamp, 12. Swing clamp nut
**Applications**
- Food processing, canning, wineries, dairy plants, breweries, beverage plants, chemical industry process/CIP fluid control
