**Overview**

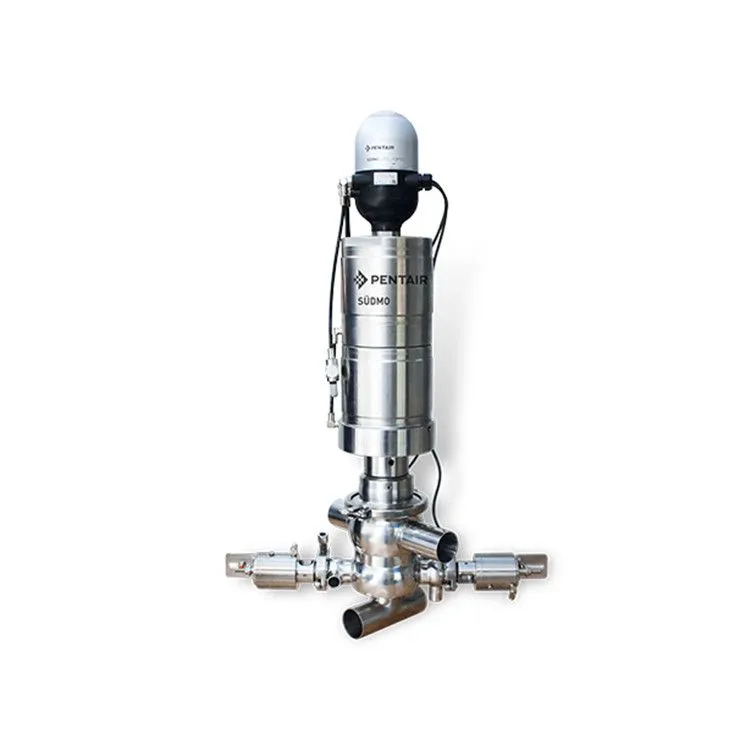

The SUDMO AS-DSV is a mix-proof process valve designed for food, dairy, and beverage industry operations and automation. Production lines can simultaneously perform pre-set filling, emptying, and cleaning without mixing risk. The upper and lower valve bodies are reliably separated, enabling CIP cleaning of one or more production lines or tanks during active production.
**Technical Specifications**
| Parameter | Value |
|---|---|
| Origin | USA |
| Category | Double seat valve with T-joint (standard); Double seat tank outlet valve |
| Metric Size | DN 50, DN 65, DN 80 |
| Inch Size | DN 2.0", 2.5", DN 3.0" |
| Seal Material | EPDM, HNBR, FKM |
| Contact Material | 1.4404 (AISI 316L) |
| Contact Surface | Ra ≤ 0.8 μm |
| Max Temperature | 150 °C (302 °F) |
| Max Dynamic Working Pressure | 10 bar (145 psi) |
| Cycle Count | > 300,000 |
**Valve Operating Modes**
1. Valve closed
2. Valve open
3. Seat cleaning / upper disc cycle lift
4. Seat cleaning / lower disc cycle lift
5. Sterilization / flushing
**Applications**
- Food, dairy, beverage production
- Dairy pasteurization zones, cold aseptic filling (CAF), biotech facilities, high-concentration and crystallizing media
- Lactose/milk sugar, instant coffee, abrasive media, difficult-to-process products
- Low-acid products, fruit/vegetable purees and concentrates, fruit/candy bases, sauces, yogurt, cheese; with or without fruit pieces
